8
Operation
Flame Safeguard (
MM80001/FSG) Manual
Page
|
104

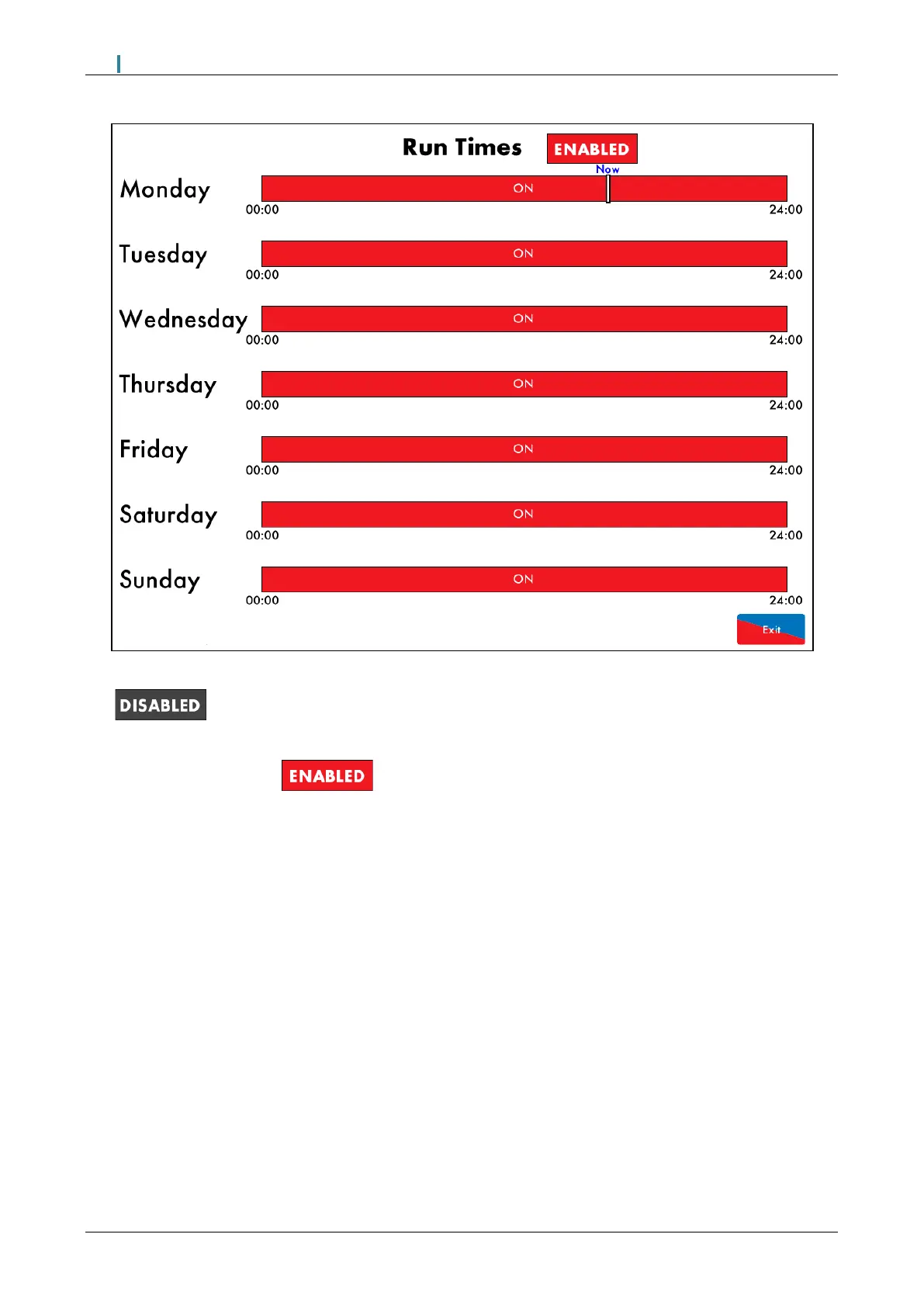

Figure 8.1.5.ii Run Times
–
Enabled
Press
in
the
Run
Time
s
creen
in
Fi
gure
8.1.5
.i
to
e
nable
Ru
n
Times.
Press
on
the
bar
next
to
the
day to set
the
run times
for
that
day
of
the week.
To
disable
the
run
t
imes press
.
97
99
Table of Contents
Table of Contents
4
Autoflame Flame Safeguard Overview, Specifications and Wiring
7
Autoflame Flame Safeguard Overview
7
Autoflame Flame Safeguard Main Features
8
Fixing Holes and Dimensions
9
Installation
10
Humidity
10
Vibration
10
Weather
10
Environmental Classification
11
Wiring
12
Servo Motor Control Schematic Main Board
13
On/Off Burner Control Schematic
14
Expansion Board
15
Fuse Ratings
16
Electrical Specifications
17
Classifications
17
Inputs and Outputs
17
Internal Hardware Status Monitoring
17
Input Checks
17
Expansion Board Inputs and Outputs
18
Cable Specifications
19
Terminals Description
20
Expansion Board Terminals Description
22
Relay Box
23
Relay Box Terminal Description
23
Converting a Flame Safeguard Unit to an Autoflame Flame Safeguard
25
Converting Honeywell Flame Safeguard Units
25
Converting Fireye Flame Safeguard Units
27
Standards
28
Options and Parameters
29
Options
29
Parameters
53
Language
63
Set Clock
64
Configuring the Autoflame Flame Safeguard Unit
65
Overview
65
Single Servo Burner Set up
66
On/Off Burner Set up
66
Wiring Checks
66
Installation Checks
67
Configuration Checks
67
Operational Checks
67
Installation Precautions
67
Maintenance and Servicing
67
General Features
68
No Pre-Purge
68
Autoflame Flame Safeguard Flame Detection Using Flame Switch
69
Terminals 80 and 81 Functions
70
T80 Functions
70
T81 Functions
70
Valve Proving with Autoflame Gas Sensor
71
Expansion Features
72
Direct Modbus
73
Overview
73
Direct Modbus Expansion Options
74
Setup and Configuration
75
Modbus Addresses
76
Modbus Address for MM Status (30102)
85
First Outs
86
Overview of First Outs
86
First Outs Expansion Options
86
First Outs Configuration
87
Enabling First Outs
87
Accessing First Outs
87
First out Function
88
Edit First out Label
89
First Outs Interlock
90
Operation
92
Home Screen
92
Flame Safeguard - History
93
Options
94
Parameters
95
Expansion
96
Run Times
97
System Log
100
First Outs
101
Faults
102
Burner Start-Up Sequence
103
Recycle
104
Standby
105
Internal Relay Tests
106
CPI Input
107
Valve Proving
108
Wait for Air Switch
112
Purge
113
Ignition
116
Pilot
118
Proving
121
Firing
122
Post Purge
123
Unlocking the Autoflame Flame Safeguard Unit to a Mk8 MM
124
Fully Unlocking the Autoflame Flame Safeguard Controller
124
Errors and Lockouts
127
Errors
127
Lockouts
131
Alarms and Warnings
136
Settings Conflicts
144
4
