GDO-10V3L2 Toro
™
Owner Installation Instructions

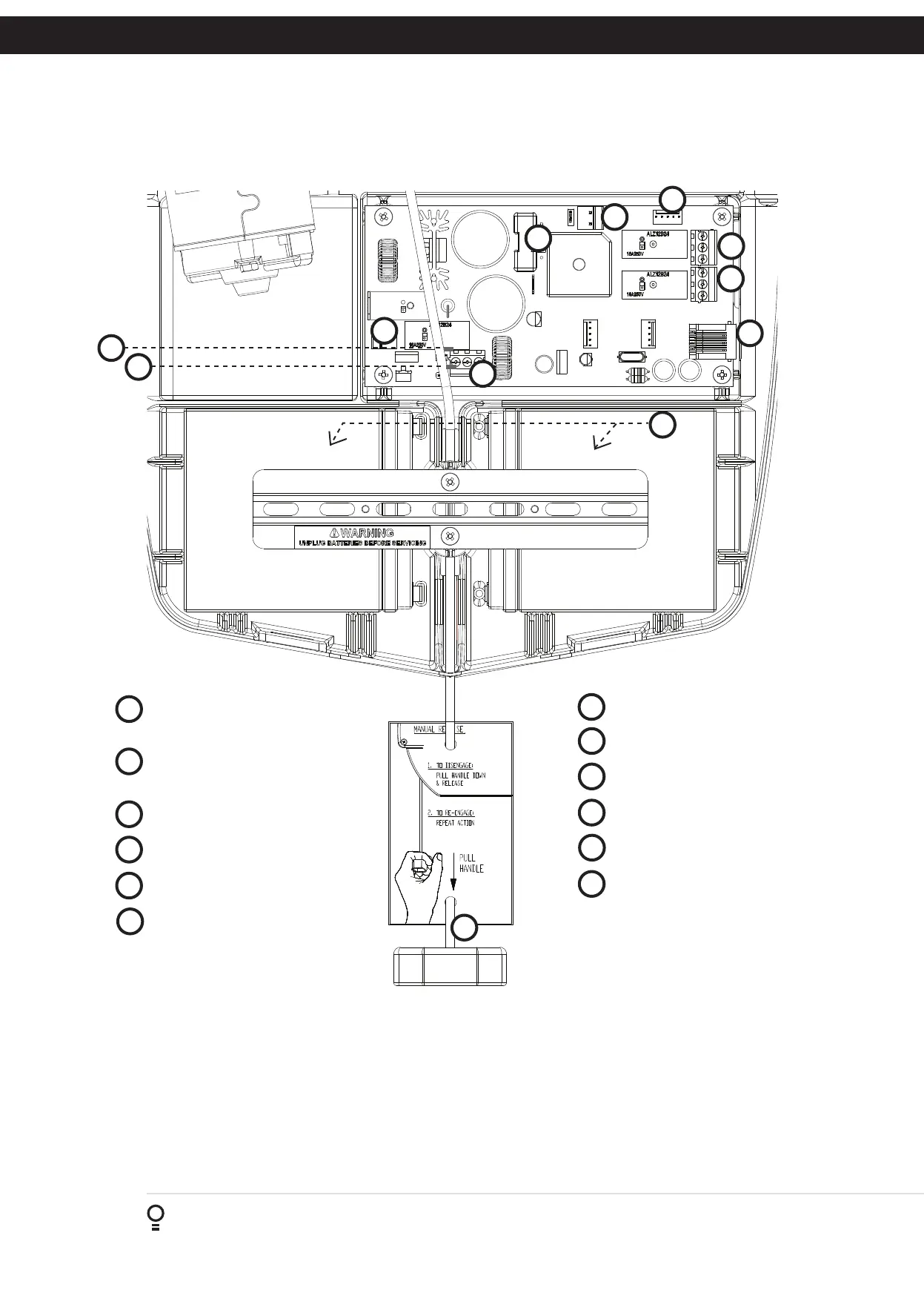

2. Controller Input And Outputs
Light Relay Output N/O, Com,
N/C Contact
Lock Relay Output N/O, Com,
N/C Contact
Serial Interface Connector
12 volts 6 Amp - Hr Batteries
Engage/Disengagement Handle
Standby Battery Charger/Solar
Connector
11
03
12
06
07
04
02
01
05
08
01
02
09
03
04
05
06
07
08
09
10
11
12
Fig 2.1
10
Solar Shunt
Standby Battery Shunt
Motor Connector
10 Amps Slow Blow Fuse
24 Volts Ac In Connector
Position Sensor Connector
