GDO-10V3L2 Toro
™
Owner Installation Instructions
4. Set Up Requirements
Fig 4.1
Fig 5.1
Fig 5.2
Fig 5.3

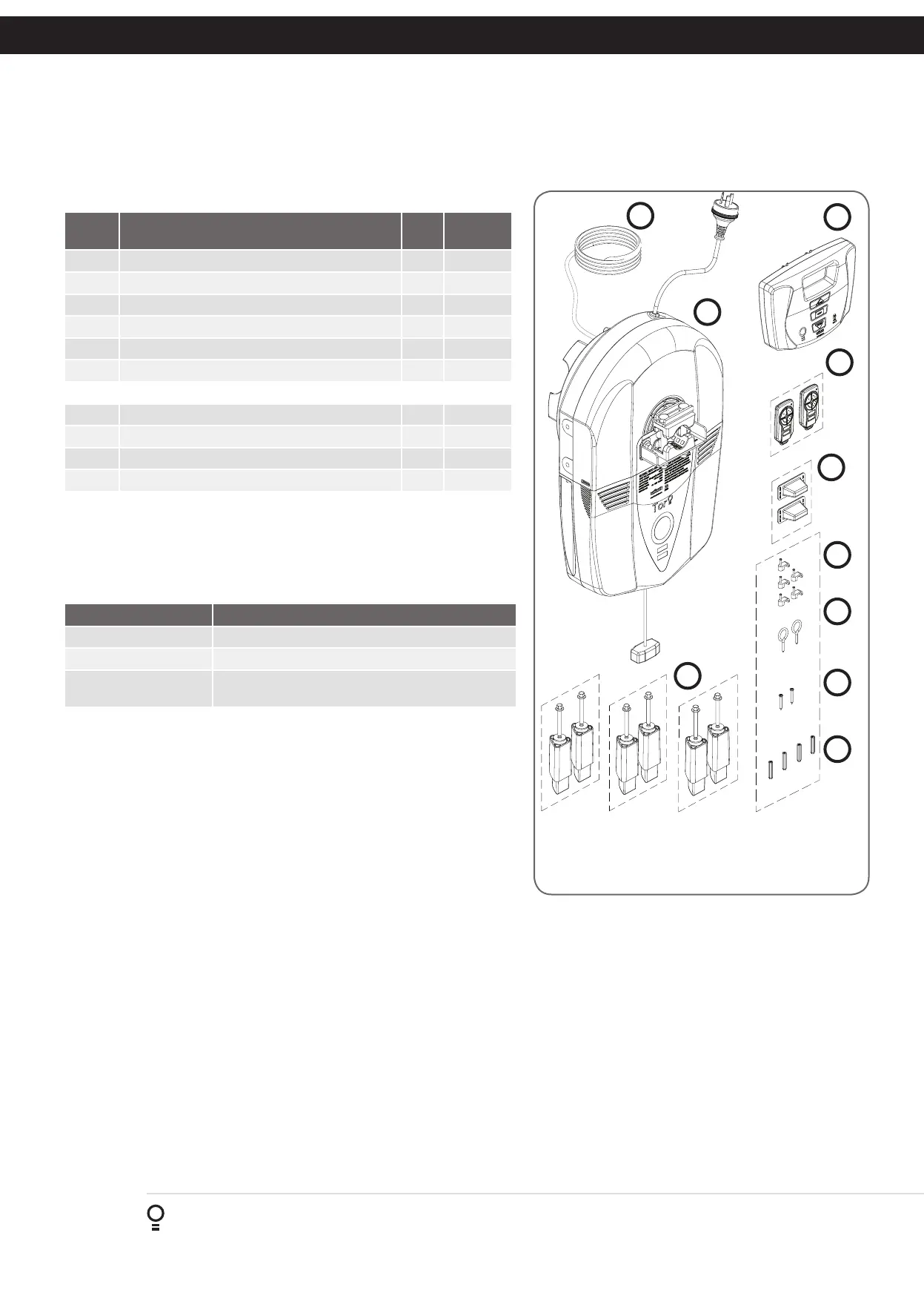

4.1 Kit Contents
4.2 Choosing your Set up
The GDO-10V3L2 can be set up in various ways and therefore may
require additional items. Common Set ups are as follows;
ITEM DESCRIPTION QTY ORDER
CODE
1 GDO-10V3L2 POWER DRIVE UNIT 1 60233
2 COMMUNICATION CABLE 1 61909
3 WALL CONTROL UNIT L2 1 61565
4 TRIO-CODE 4B PTX-5 TRANSMITTER 2 61161
5 LOCKING BAR COVER 2 71040
6 FORK EXTENSION 6 61486
ACCESSORY PACK (61480)
7 CLIP CABLE CLIPSAL NO 564/1 5 72845
8 SCREW-EYE 2 10595
9 SELF TAPPING SCREW 6 X 25 (1”) 2 10672
10 PLASTIC WALL PLUG 6.9 X 25 (1”) 4 11152
1
2
3
4
5
6
7
8
9
10
Set Up Items Required
Dead Man Set Up Drive Unit, console
Automated Set Up Drive Unit, console and transmitter
Automated Set Up
with Safety Beams
Drive Unit, console, transmitter and safety beams
(optional extra)
