Terminal Block ( From Left To Right )
AUX OUT Receiver’s Auxiliary Output
V+ Accessory Supply
SB3 Third Safety Beam Input
SB2 Second Safety Beam Input
SB1 First Safety Beam Input
0V Common For Safety Beams
0V Common Terminal For Control Inputs
FIRE N/O , N/C Input Terminal
GPI N/O Input Terminal
OPN N/O , N/C Input Terminal
STP N/O , N/C Input Terminal
CLS N/O Input Terminal
Programmer PG-3 Input
Console Previous Button
Liquid Crystal Display
Console Next Button
Console Open Button
Console Stop Button
Console Set Button
Console Close Button
13 14
15
16
17
18
19
20
21
3. Operating Controls

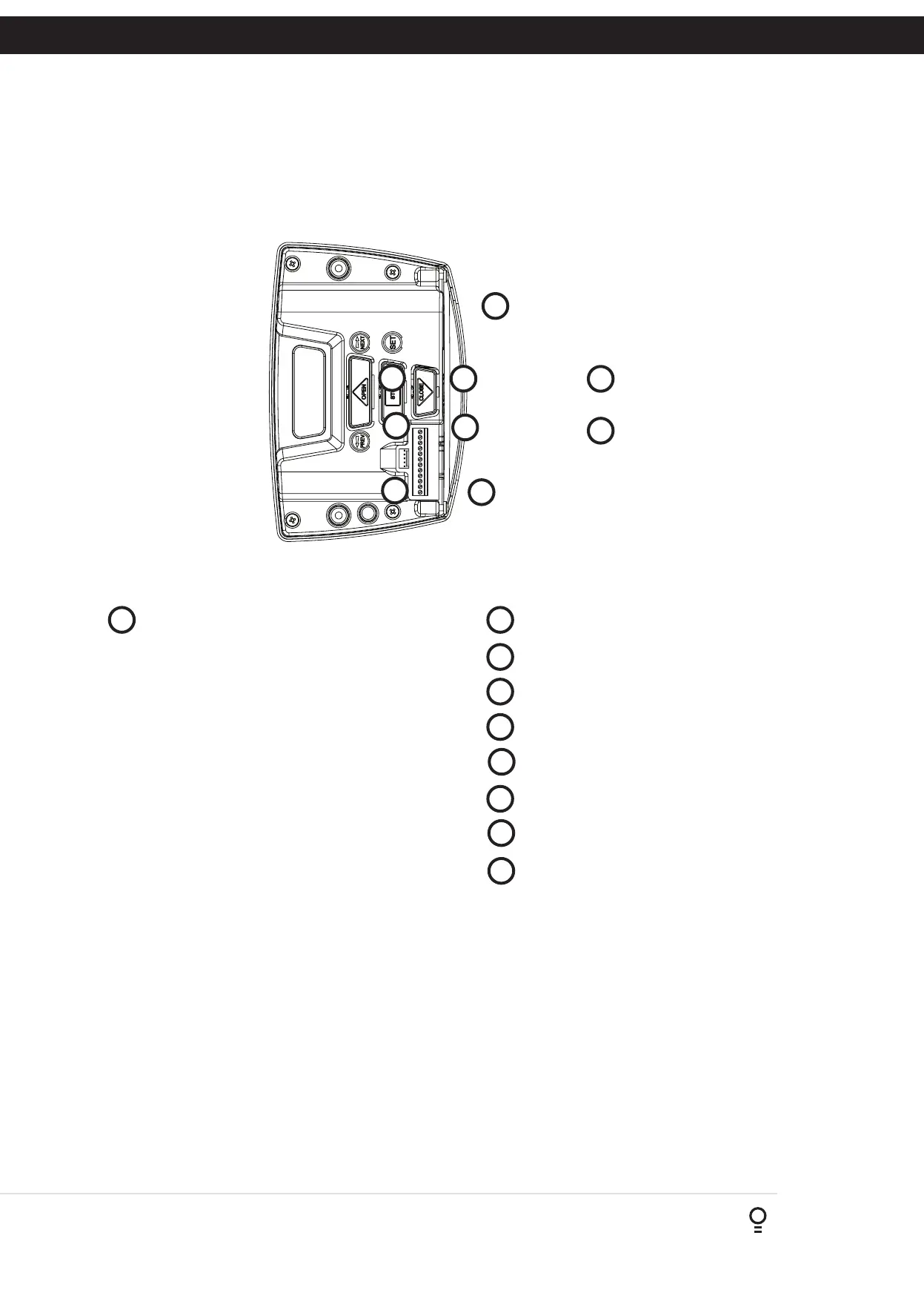

Fig 3.1
