Automation Direct Stellar SR55 Series User Manual

Page 6–14 Stellar
®
SR55 Series Soft Starter User Manual – 1st Ed, Rev F – 09/18/2019
Chapter 6: Accessories

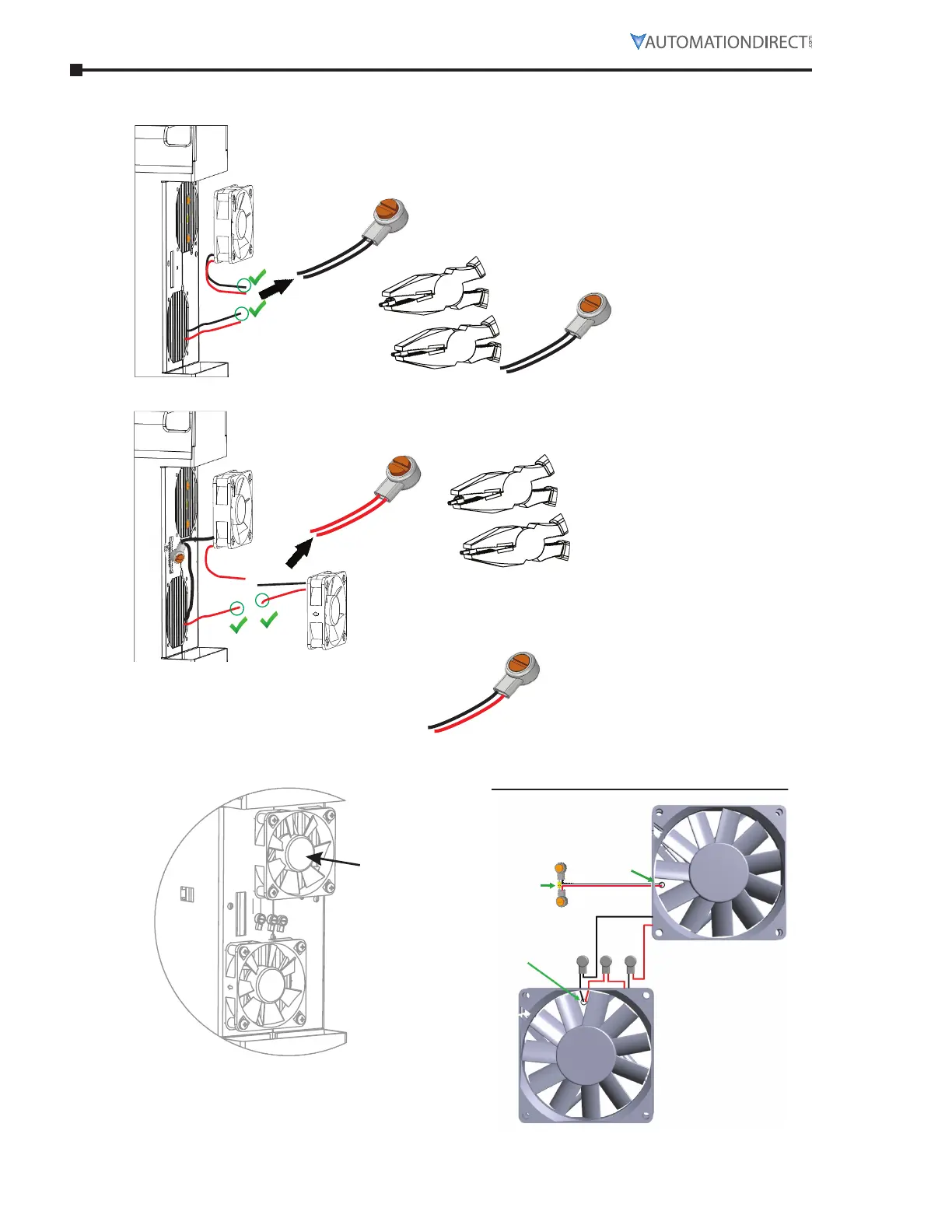

(fan replacement method #2 instructions continued from previous page)
Push shut with pliers
6) Select the Black wires as shown below and place into connector
Replacement fan
7) Select the Red wires as shown below and place into connector
Push shut with pliers
8) Place and crimp the two remining wires
(1 Red wire and 1 Black wire) into the final
connector using the method above
9) Position fans and
connectors
10) Affix new
fan(s) to
soft strarter
Air flow
direction
Schematic representation of correct fan wiring
Fan wiring
from the
soft starter
Fan wiring
from the
soft starter
Resistor
