101
In the window Default, we select the input status for inactivity for the NC option the system anticipates a closed circuit on the
input, opening results in activation of the function assigned in EventCongifuration. For NO the situation is reverse: thesystem
anticipates an open circuit on the input, closing results in activation of the assigned function.
6
Logical Outputs
The Logical Outputs tab contains all available logical (relay) outputs on the reman microphone. A double click on the name
of a logical output enables to change the generic name assigned by the congurator. Assigning a function to a chosen relay
is possible in the EventConguration select an input event, assign a general function and click Add control outputs action
(the circle in a square icon ).
7
Relay Type / Mode
Relay type is a window to inform of the physical type of the relay installed. NC normally closed, in case of a power cut,
therelay will be closed, NO normally open, in case of a power cut, the relay will be open.
The Mode window enables to reverse the relay logic, opposite to its behaviour in case of a power cut. The Inverse causes,
e.g., that the relay NC / Inverse– in the original status it is a NO relay, and activation of the function to which it is assigned
will change the status of the relay into the opposite one, i.e. NC. For NC / Normal in the original status (not triggered by
any function) the relay is closed, activation of the function, as assigned to this output, causes that the relay status changes
into the opposite one, i.e. open. The values from the windows Relay Type and Mode are also duplicated in the information
window below Scenario State and in the EventConguration tab the function General Logical Outputs, also in the infor-
mation window below State.
8

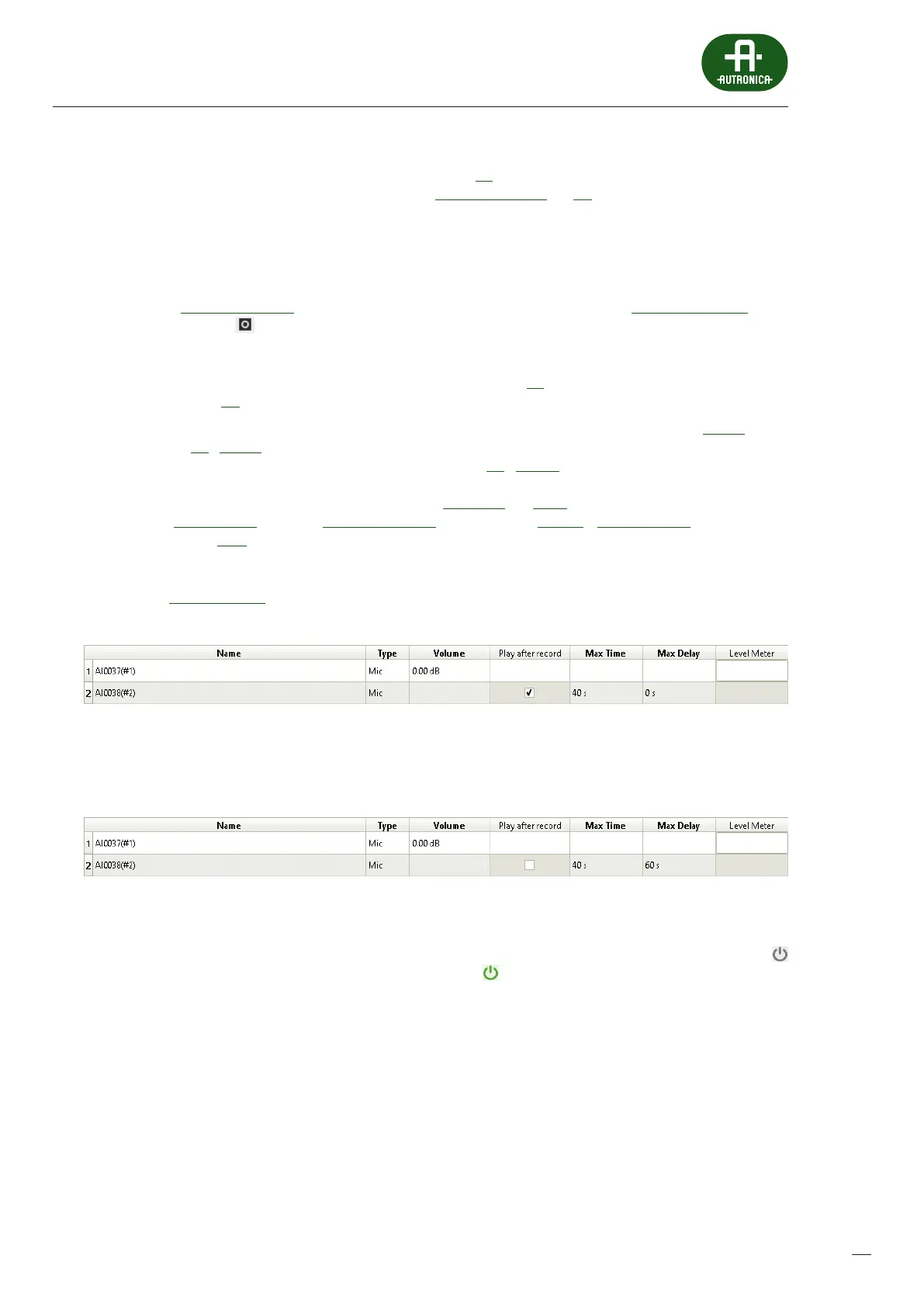

Audio input options
Activating the play after record option allows recording up to 40s of a message being transmitted by the ABT-DFMS and
playing it back immediately after releasing the PTT button.
Max time – sets the length of recorded message.
Max delay – sets the longest time the system will wait for the intended transmission zone to be freed. After the set time the
message will be played back from the buer. If the operator chooses to transmit to more than one zone, the system will
play the message in all the available / free zones after the set delay time has passed and erase the message from the buer.
9
On-line mode
The online mode oers the user the possibility to view the audio level meter in real time and to adjust the mic volume
level. After uploading the conguration into the system, you can enter the on-line mode by clicking the icon
– it will then change it’s color to green indicating active on-line mode .
