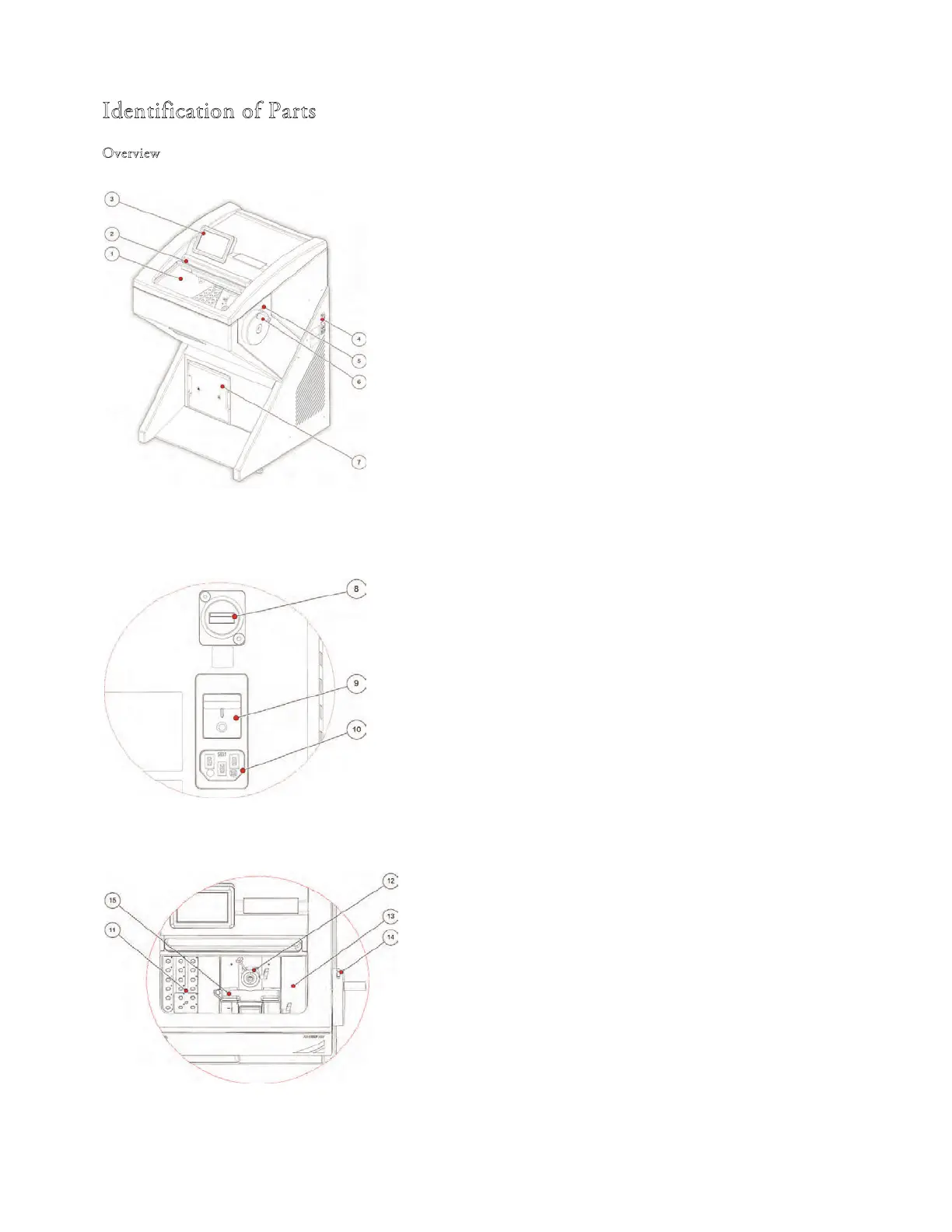

Identification of Parts
Overview
1 Cryo chamber
2 Cryo chamber Window
3 Touch Screen
4 Connections Panel
5 Handwheel Mechanical Lock
6 Handwheel
7 Water Drain Reservoir
Connections Panel
8 USB port
9 Power Switch
10 Power Socket
Cryochamber
11 Cryobar and Cooled Storage Area
12 Specimen Head
13 Tool storage
14 Handwheel Mechanical Brake Button
15 Waste Tray
