7-20 MDF/lDF DESIGN: DEFINITY GENERIC 2 WITH UNIVERSAL MODULES
ZONE 1
FRAME
NUMBER
ZONE 2

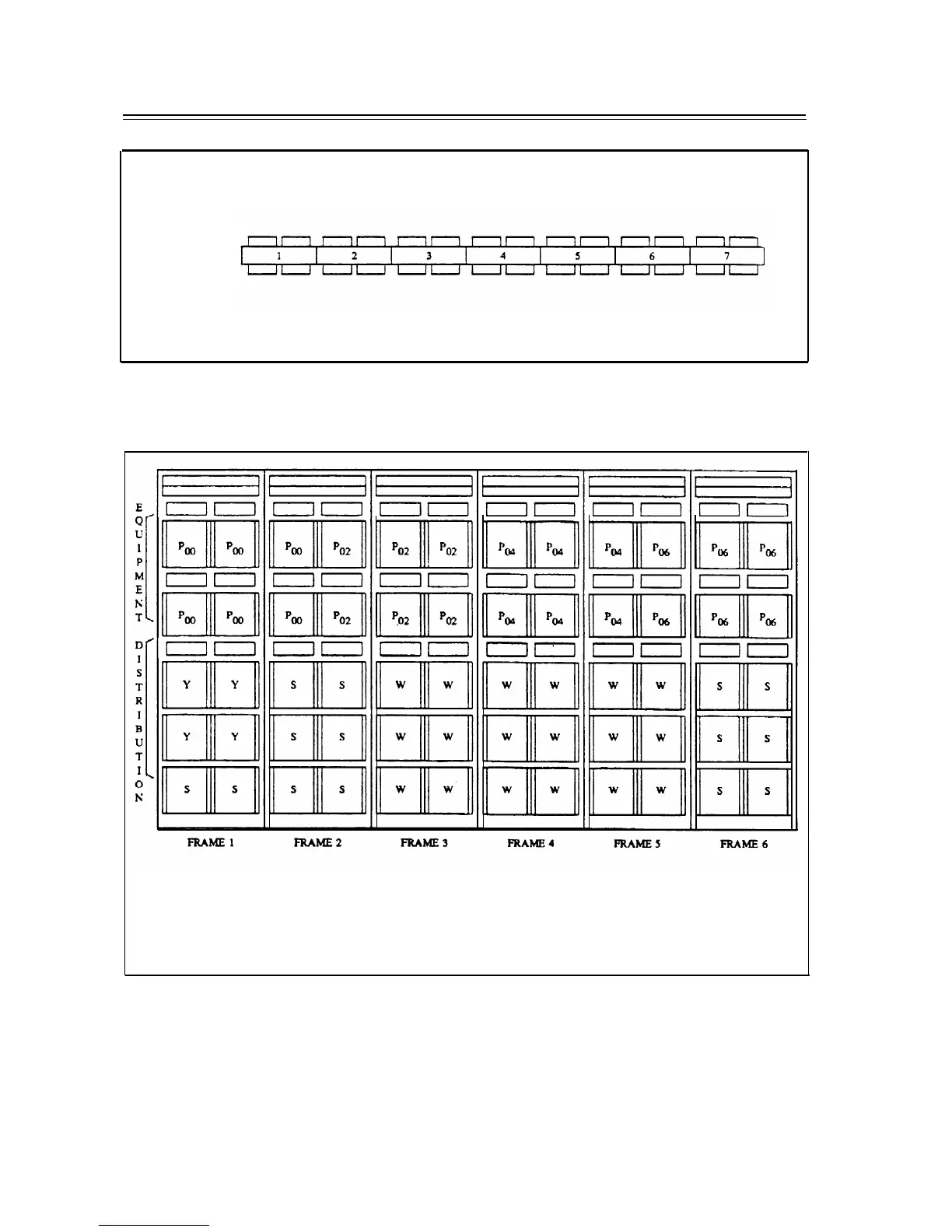

Figure 7-10. Zone Arrangement of Type-1 Frame — Plan View
LEGEND:
Y— YELLOW, AUXILIARY AND MIS
CELLANEOUS FIELD
W
— WHITE, DISTRIBUTION FIELD
P — PURPLE EQUIPMENT FIELD
S — SPARE WITH CROSS-CONNECT BLOCKS
Figure 7-11. Zone Arrangement of Type-1 Frame — Front View, Zone 2
