7-6
MDF/lDF DESIGN: DEFINITY GENERIC 2 WITH UNIVERSAL MODULES

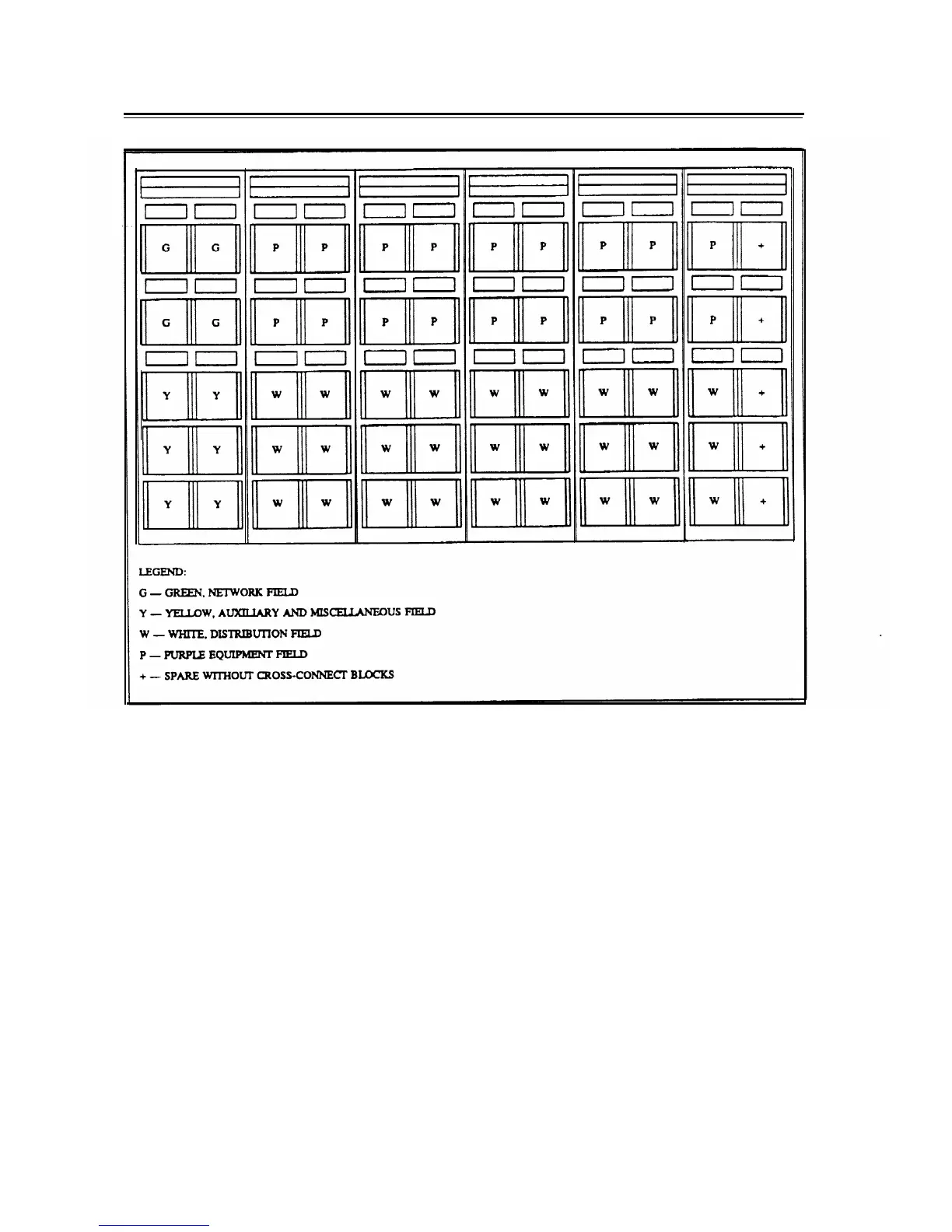

Figure 7-3. Six Type-1 Frames with 18,000-Pair Capacity
Type-2 Frame
The type-2 frame shown in figure 7-4,
Seven Type-2 Frames with 16,800-Pair Capacity,
has added
jumper capacity. You may terminate 2400 pairs on each of its sides. Cross-connections on the type-2
frame can be made either from top to bottom or from side to side, depending on the size and shape of
the installation.
Use the type-2 frame for large installations that require more than nine frames in a lineup.
