MDF/lDF DESIGN: DEFINITY GENERIC 2 WITH UNIVERSAL MODULES
7-23
●
IO number for an extension
●
Equipment line location (ELL) number for that extension
●
Module number for that ELL
NOTE: If station #2700 is located in module 04, the cross-connection in the closet goes to a pair in zone 1. Similarly, if #3001 is in module
07, the cross-connection in the closet goes to a pair in zone 2. Using this rule, it is possible to keep the jumpers short at the equipment room
cross-connect field.

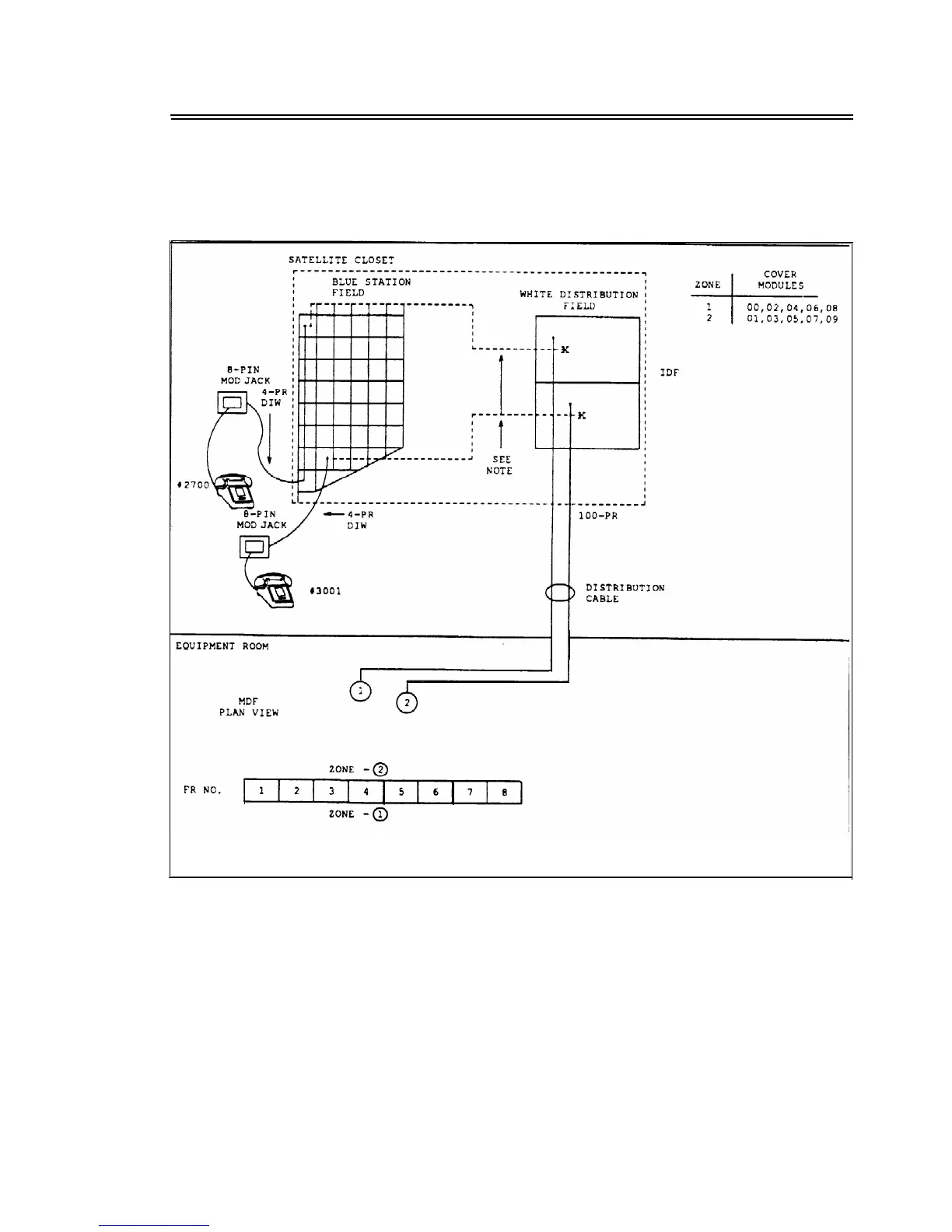

Figure 7-14. Closet Cross-Connects Using Type-1 Frames
Connecting to Terminal Blocks
The 110A cross-connect hardware is available with connectors or without connectors. The determination
of whether to use connectorized or field terminated cross-connect hardware is best made at the site, but
in general, the following guidelines apply:
