5-6
INSTALLATION EXAMPLE: SYSTEM 85 AND DEFINITY GENERIC 2 WITH TRADITIONAL MODULES

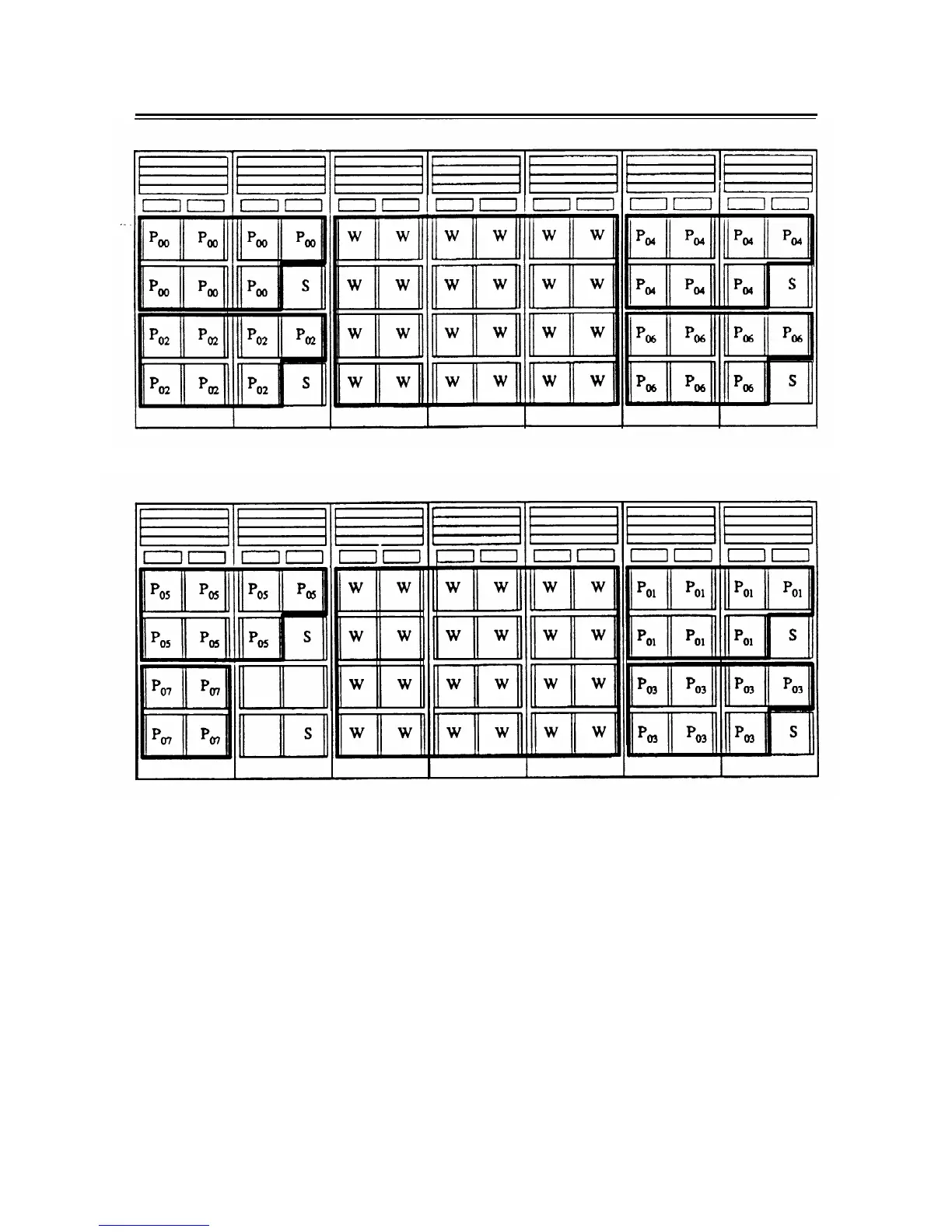

Figure 5-4. 7-Module System Mounted on Self-Supporting Type-2 Frame, Front
Figure 5-5. 7-Module System Mounted on Self-Supporting Type-2 Frame, Rear
●
Cable connections to the MDF.
In this example, all connections to the frames from the equipment
are by connector cables. All distribution cables are field terminated directly to the terminal blocks.
