MDF/lDF DESIGN: SYSTEM 85 AND DEFINITY GENERIC 2 WITH TRADITIONAL MODULES
2-21

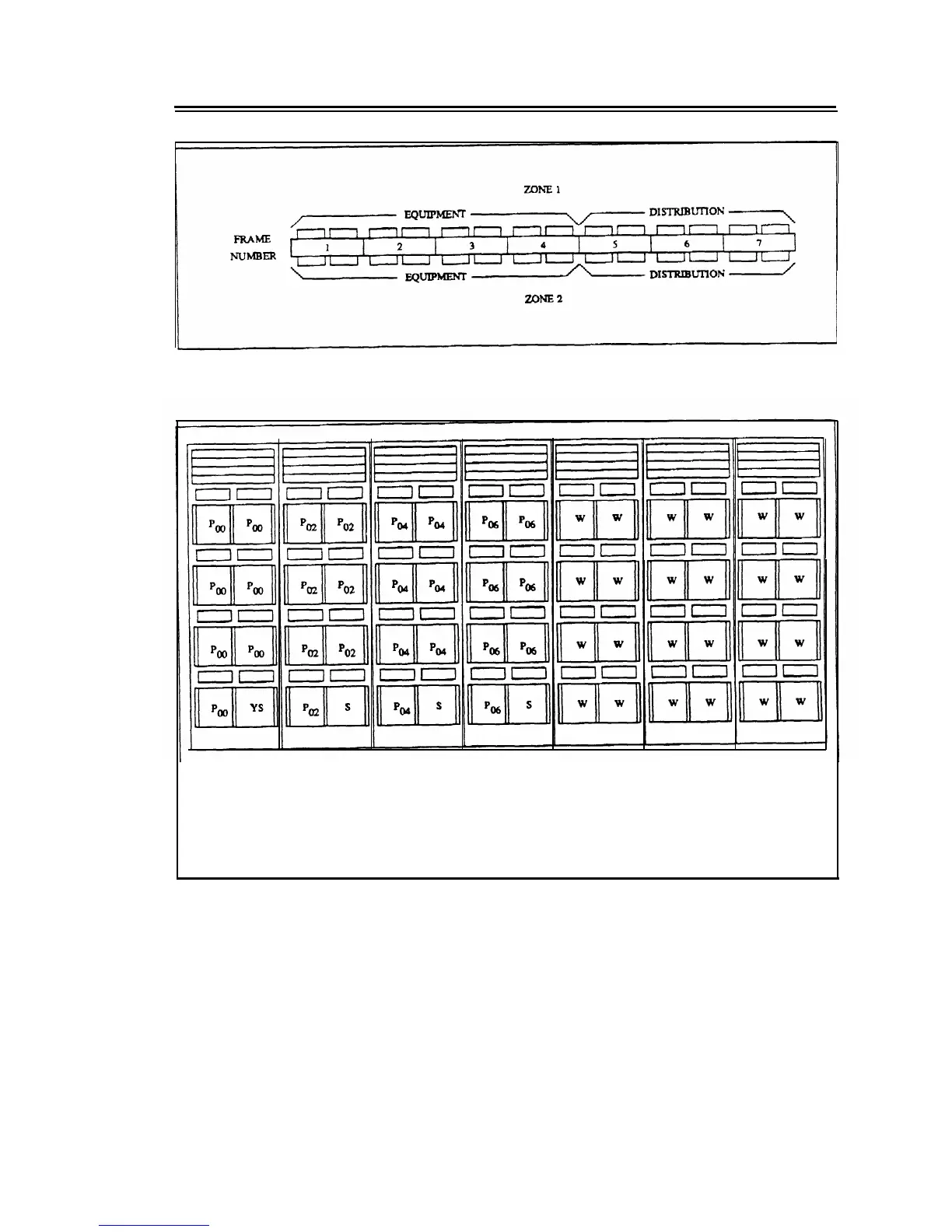

Figure 2-11. Zone Arrangement of Type-2 Frame — Plan View
LEGEND:
Y
— YELLOW, AUXILIARY
AND
MISCELLANEOUS FIELD
W
— WHITE, DISTRIBUTION FIELD
P — PURPLE EQUIPMENT FIELD
S — SPARE WITH CROSS-CONNECT BLOCKS
Figure 2-12. Zone Arrangement of Type-2 Frame — Front View, Zone 2
