3.1 INSERT THE LABELLING MATERIAL – ALS 350
ALS
350
Thread the label ribbon at the unwind unit
£ Swing up the pressure roller [19A] and the braking
brush [19B].
£ Thread the label ribbon around the deflection
rollers [19C] and drive roller unit [19D].
£ Form a loop after the drive roller unit and guide the
label ribbon over the operator panel support [19E].
£ Swing the pressure roller and web brake back into
position.
– The pressure roller and braking brush click into op-
erating position.

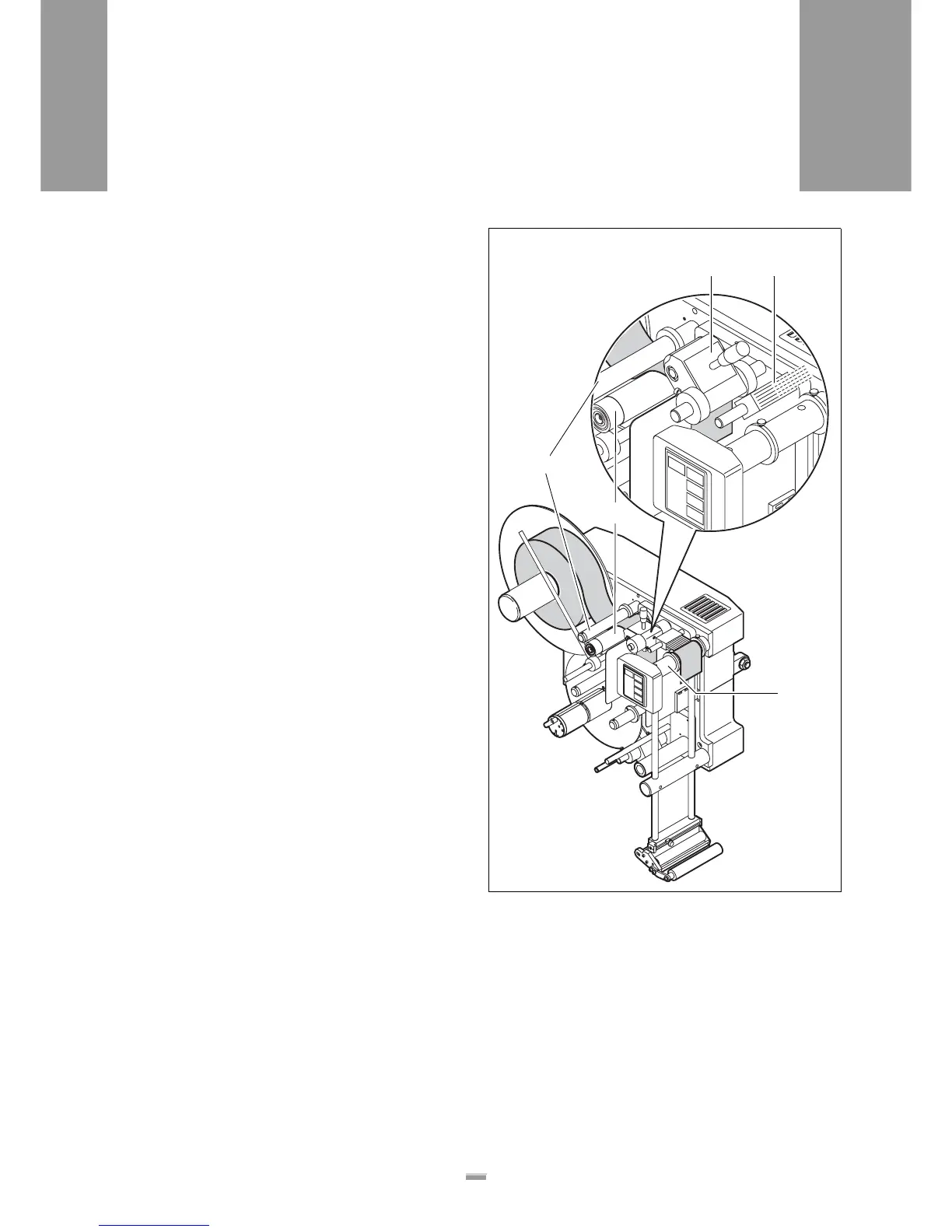

[19] Guides for the label ribbon in the unwinding section
A Pressure roller
B Braking brush
C Deflection roller
D Drive roller unit
E Operator panel support
A B
C
D
E
