45
3PRIOR TO OPERATING
3.3 MECHANICAL SETTINGS
ALS
350
450
3.3.4 Adjust (optional) the position
of the dispensing edge
Adjusting vertically
Coarse adjustment:
£ Open the central lock [35B].
£ Hold the dispenser head firmly and open the lower
lock [35C].
£ Slide the dispenser head to the desired height and
tighten the lock [35C].
Fine adjustment:
£ Open the upper lock [35A].
£ Rotate the spindle [35D] clockwise to move the dis-
pensing edge downward or rotate the spindle coun-
ter-clockwise to move the dispensing edge upward.
£ Tighten the lock [35A]
£ Tighten the central lock [35B].
Forrecurring adjustments when products are
changed:
£Use the scales on the guide columns.

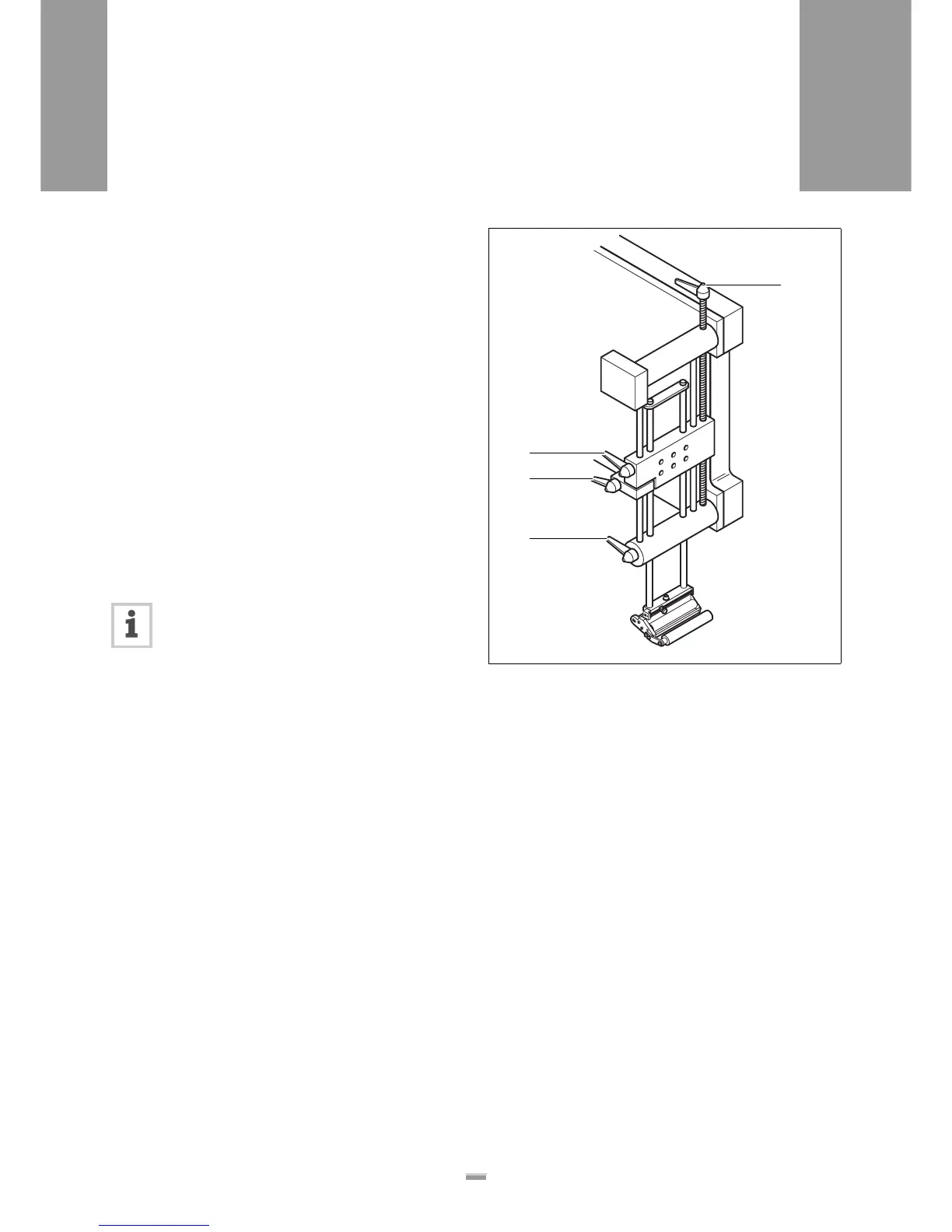

[35] Adjustable dispensing edge (optional)
A
C
B
D
