Avery Dennison ALS 350 - Fine Tuning of the Dwell Time (APT4)

85
4OPERATION
4.6 APPLICATOR (OPTIONAL)
ALS
350
450
Fine tuning of the dwell time (APT4)
When using an applicator in combination with the auto-
matic speed adjustment (APSF):
– Optimise the accuracy of the label position on the
product by fine tuning the dwell time for the applica-
tor.
Standard values:
– Blowing applicators: approx. 25 ms
– EP applicators: 60 ms ... 100 ms, depending on the
length of the stroke
Prerequisite:
– External RPM transmitter is calibrated (EGRA func-
tion)
Determining and setting the exact value [88]:
£ Call up the APT4 function in the extended menu.
£ Set the setting value for APT4 to 1.
£ Allow the conveyor belt (with products) to run slowly.
– Speed v
N
= 10 m/min
£ Document the position of the label on the product:
Value: POS
N
in mm
£ Increase speed of the conveyor belt to approx.
25 m/min (value v
H
).
£ Document the position of the label on the product:
Value: POS
H
in mm
£ Calculating the setting value for APT4:
£ Input the calculated setting value.
£ Confirm the value using the ENTER key and exit the
function.
Test the setting:
£ Test the labelling accuracy at different conveyor belt
speeds.
£ If necessary, correct the setting value for APT4:
– The greater the value for APT4, the farther forward
the label is applied.
– The smaller the value for APT4, the farther to the
rear the label is applied.

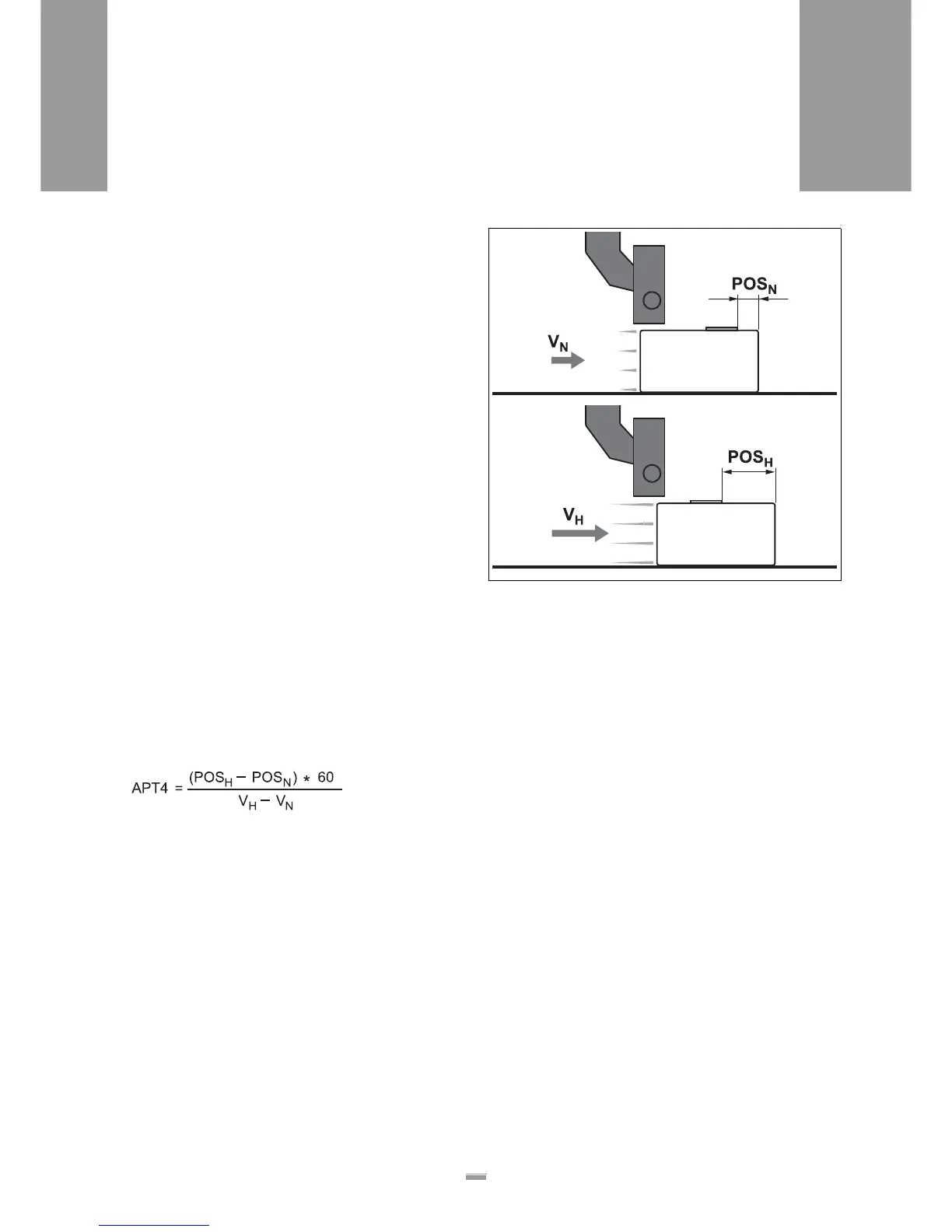

[88] Label position in relation to the conveyor belt speed
v
N
- Low conveyor belt speed
POS
N
- Label position at lower conveyor belt speed
v
H
- High conveyor belt speed
POS
N
- Label position at higher conveyor belt speed
