3PRIOR TO OPERATING
3.2 INSERT THE LABELLING MATERIAL – ALS 450
ALS
450
Guide the label ribbon around the dispens-
ing edge
£ Unthread approximately 2 m of label ribbon from the
label roll.
£ Guide the label ribbon around the first deflection
roller [29A] and through the slot in the photoelectric
sensor [29B] [30A].
£ Guide the label ribbon under the pressure roller unit
[29C] to the dispensing edge [29D].
£ Guide the label ribbon around the dispensing edge
to the 2nd deflection roller [29E].
£ Thread the label ribbon around the upper deflection
roller [29F].

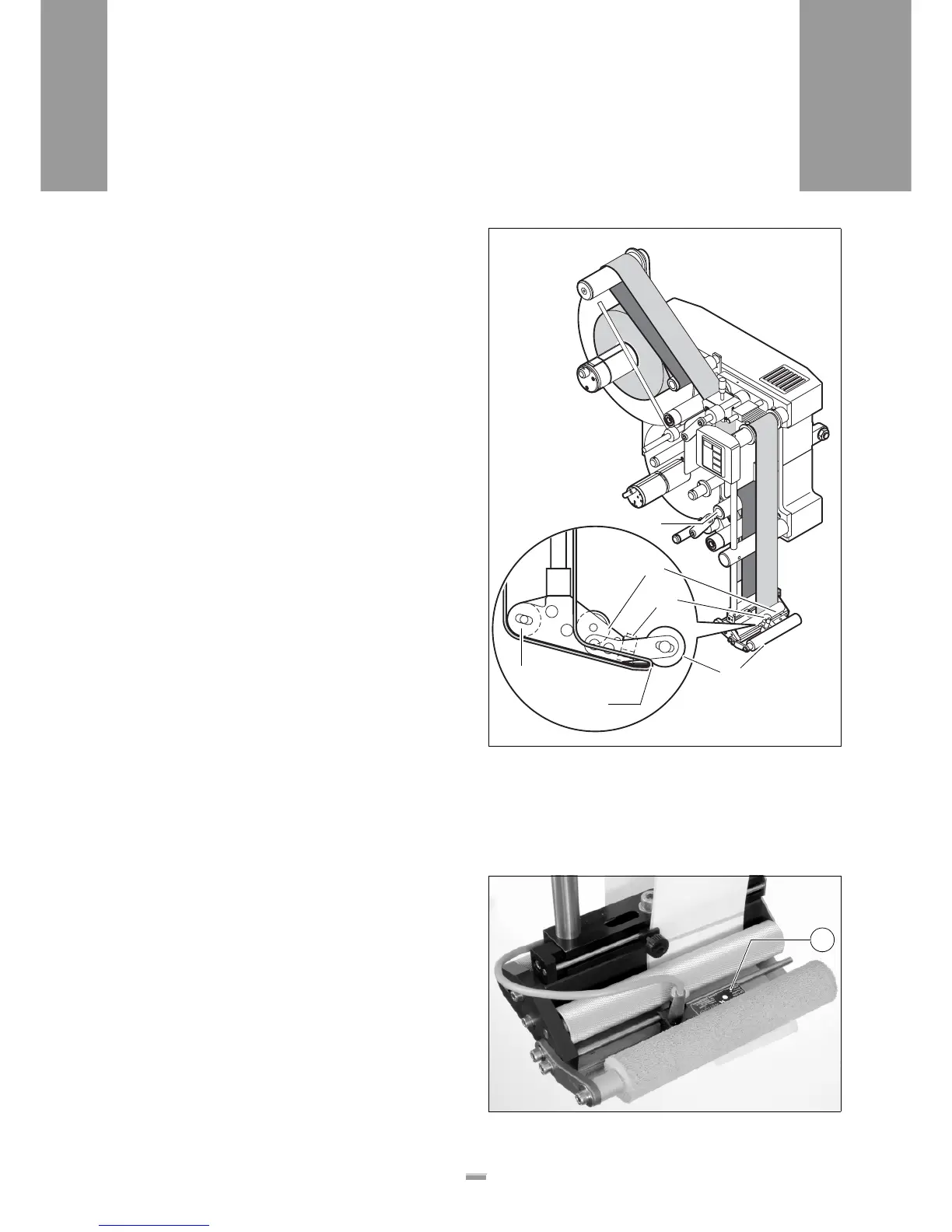

[29] Guides for the label ribbon in the dispenser head section
A 1st dispenser head deflection roller
B Label stop sensor
C Pressure roller unit
D Dispensing edge
E 2nd dispenser head deflection roller
F Upper deflection roller
[30] A Label stop sensor
E
D
F
A
C
B
A
