DADman Software 16
DADman Window
The DADman window is separated into five sections: AD, DA, Monitoring (if configured), Connections, and Configuration. Each
subsection can be shown or hidden by clicking on the corresponding button in the leftmost column.
Note that the order from left to right in which DADman shows the units are defined by the unit ID number stored in each unit. The
ID number for any unit can be changed by editing the ID field in the corresponding section in the DADman window (just to the right
of the unit ID number). The name of each unit can be edited in the name Window. This name is stored in the unit. Names can also
be assigned for each analog input and output channel. However, these channel names are only stored in MTRX Studio Configura-
tion files, not in the MTRX Studio unit itself.

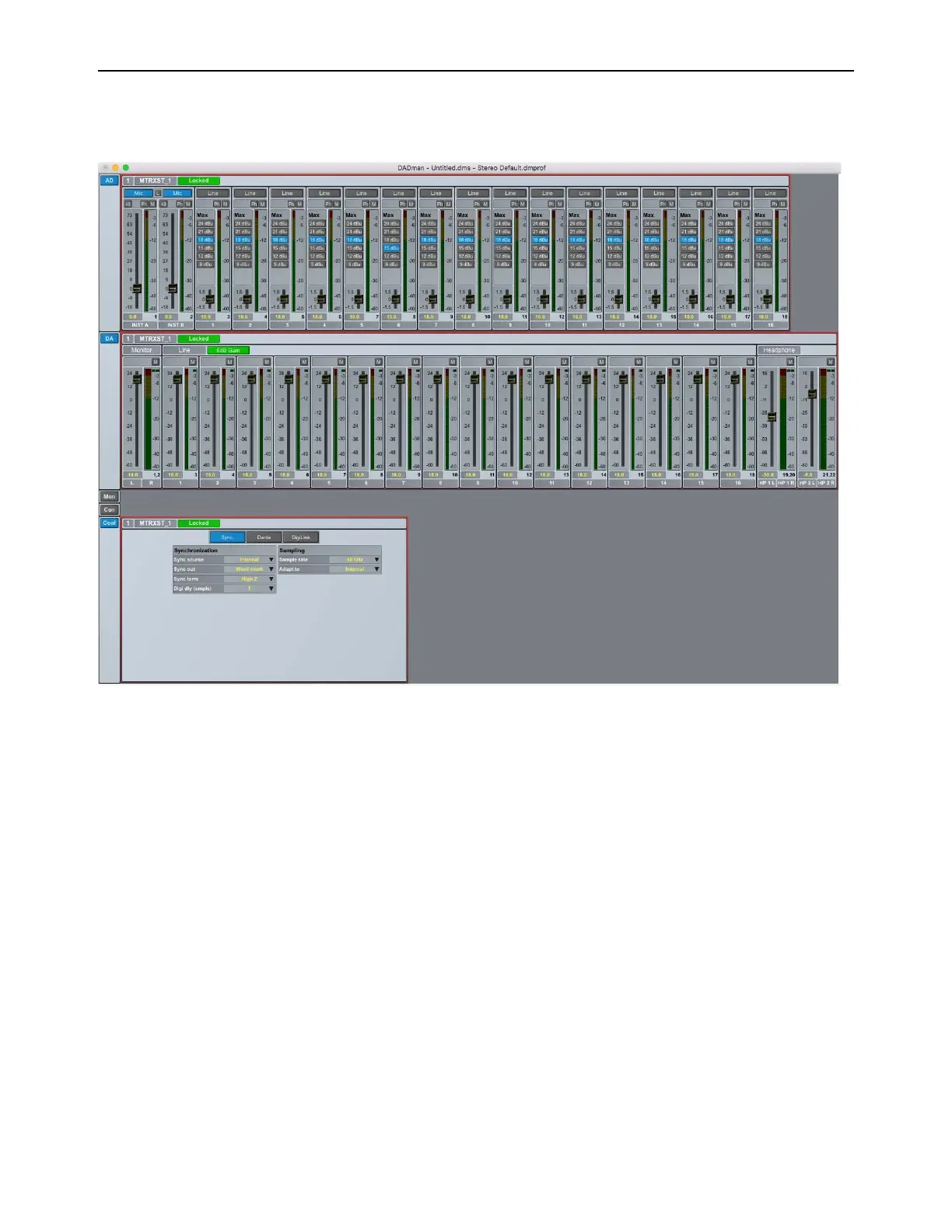

DADman Window, Mon and Con sections collapsed
