The AD section controls all analog inputs in the MTRX Studio:
• Mic/Inst Inputs 1 and 2.
• Analog Inputs (DB25) 1–8 and 9–16.
Any selected level slider can be adjusted with the mouse, the mouse scroll wheel, or with the Up and Down Arrows on your com-
puter keyboard. Note that using the mouse adjusts the gain by 0.5 dB increments, but the Up and Down Arrow keys adjusts the gain
by 0.1 dB increments.
Mic and Inst Channel Strips
The Mic and Inst channel strips (front and back panel inputs 1 and 2) provides the following controls:
Mic/Inst Selector
Click to toggle between Mic input (back panel) and Instrument input (front panel).
Link
Enable to Link controls for both input channels 1 and 2.
Phantom Power (48)
Click to enable (or disable) phantom power (48V)—Mic input only.
Phase Invert (Ph)
Click to enable (or disable) phase inversion.
Mute (M)
Click to mute (or unmute) the channel.
Level Meter
Displays the input signal level.
Fader
Move to adjust the input signal level.
dB Display
Displays the gain adjustment to the input signal in dB.
Label
Click to change the label (name) for the channel.

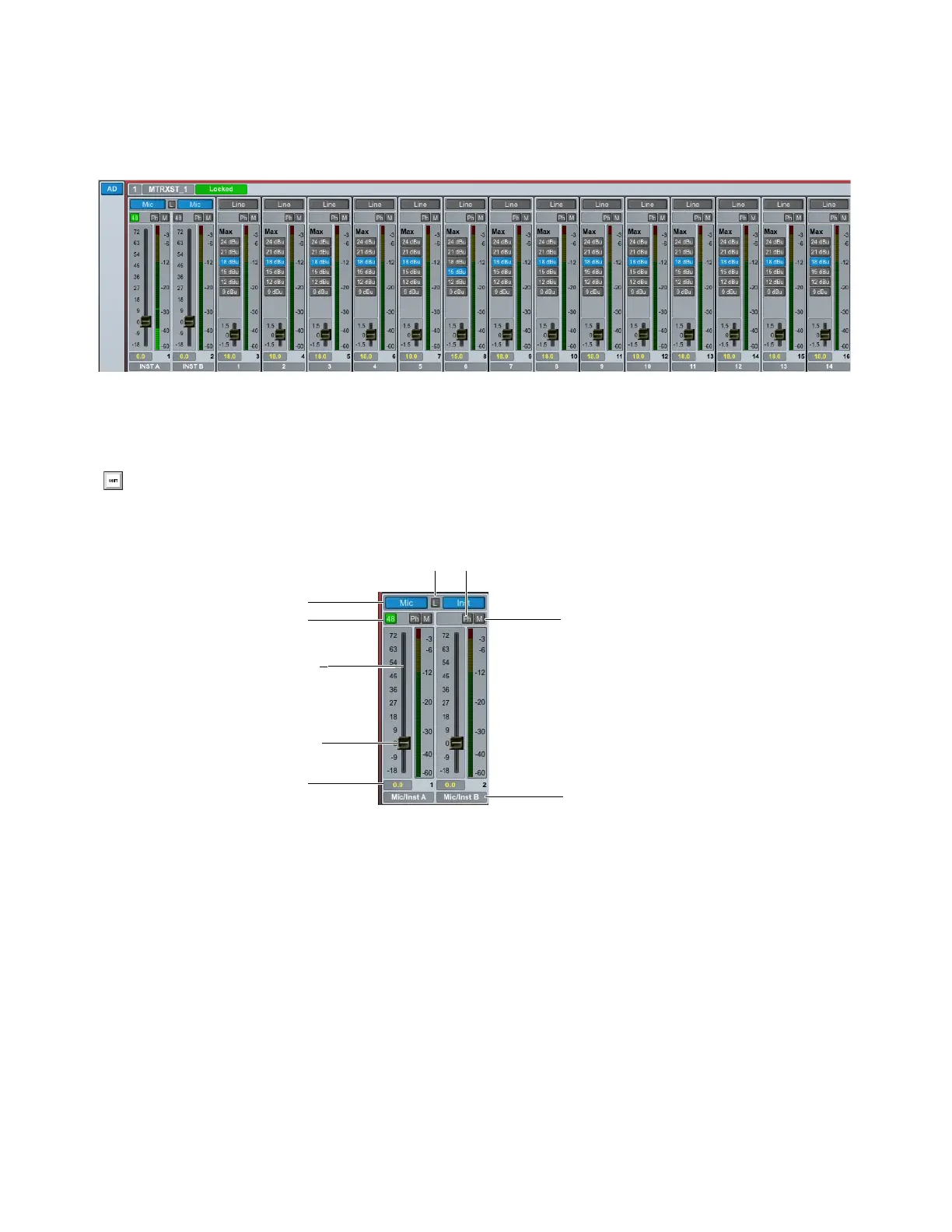

AD section
Command-click (Mac) or Control-click (Windows) any fader to set it to 0.
Mic/Inst channel strips
Phase InvertLink
Mic/Inst selector
Phantom Power (48V)
Mute
Level meter
Level fader
dB display
Channel Label
