Groups Page
The Groups page of the Monitor Profile Configuration window lets you create and edit monitor and cue configurations for
MTRX Studio. The Groups page consists of a left pane where you can add monitor and cue groups, and a right pane where you can
make input and output assignments.
Groups
Lists Talkback, Monitors and Cues, and their various attributes such as Outputs and Sources.
Mode
Shows selected features of elements in the Groups column, such as the Monitor mode (Cue or Master) and channel widths
for
Outputs and Sources.
EUCON
shows monitor control assignments for EUCON-compatible control surfaces (such as S1, S6, and Avid Control app).
The right pane is organized in four columns:
Role, Channel, Label, and Trim. These are all attributes of whatever is selected in
Groups column in the left pane, such as Outputs and Sources.
Role
Displays the speaker assignments for each channel in the Monitor group, such as Left, Right, Center, or Lfe.
Channel
Displays the input or output assignments for Monitor groups. Right-click to select routing assignments for each channel
to any of the available analog or digital I/O, such as
AD, DA, DigiLink, or Dante.
Label
Click to type a label for the channel.
Trim
Click to type a negative value to attenuate or a positive value to boost (in dB) the signal level for each channel.

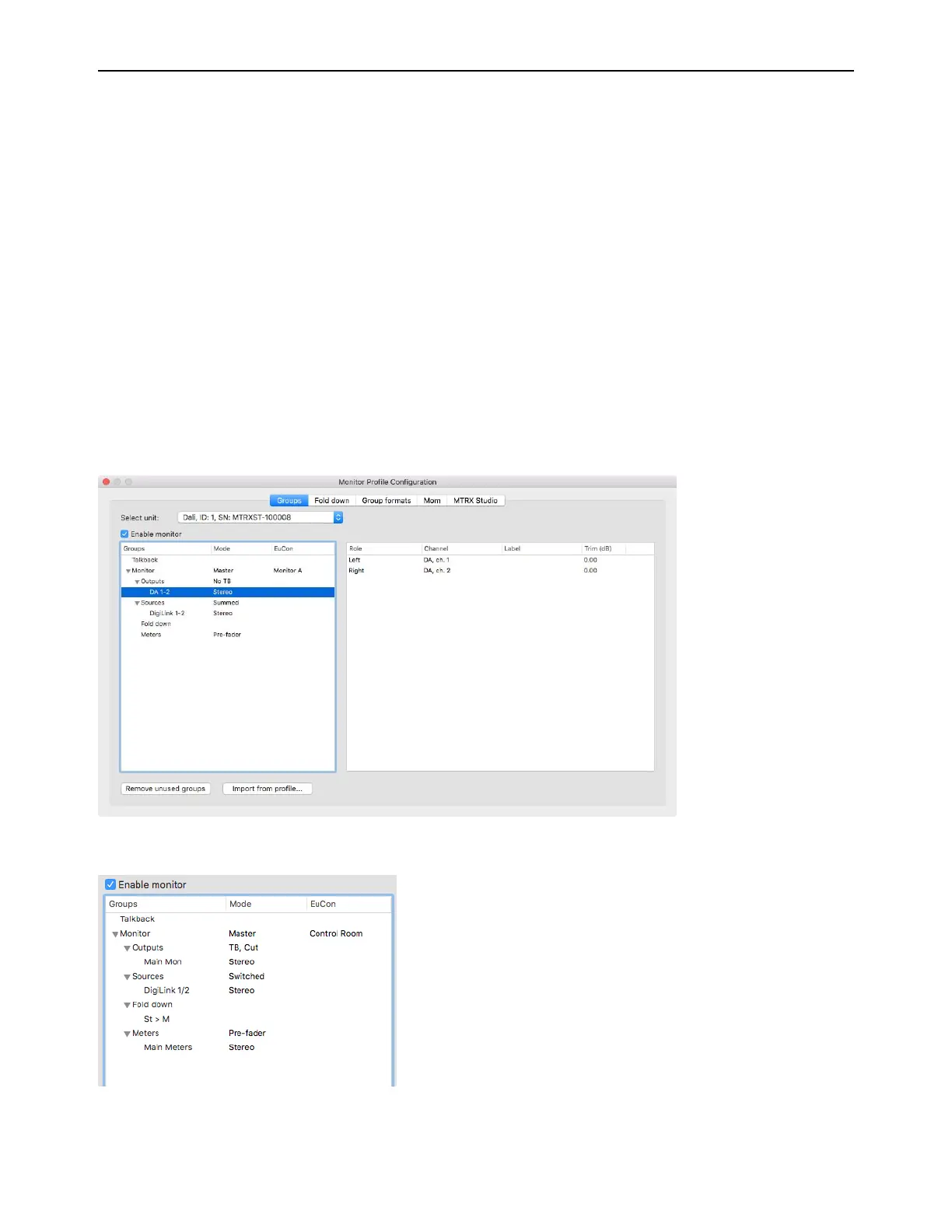

Monitor Profile Configuration window, Groups page
Monitor group with assignments: stereo output, stereo source, stereo to mono fold down, and stereo meters
