Monitor Profiles 32
Talkback
Talkback is the first item in the Groups column and is always present. The source for Talkback can be any available mono input.
To assign an input for Talkback:
1 Click to highlight Talkback at the top of the Groups page of the Monitor Profile Configuration window.
2 In the Channel column in the right pane, right-click <add channel> and select the input source for the Talkback mic.
3 If desired, click to edit the Label and Trim for the Talkback input.
Monitor
You have manually add or import monitor groups. Every monitor group includes the following attributes: Sources, Outputs, Fold
down
, and Meters. Each monitor group that you add can be designated as a Cue or Master monitor. Each monitor group can also
be assigned to EUCON monitor control.
To create a new monitor group:
1 Right-click in the left pane and choose Add monitor.
2 Right-click Monitor and choose Rename (or double-click the name in the Groups column), and type a descriptive name (such as
“CR” or “Control Room,” or “HP 1” or “Headphone 1”—use shorter names for displays on EUCON-compatible control sur-
faces).
3 Right-click on Monitor to set the Monitor mode to either Cue or Master.
4 If desired, right click on Monitor again to set the EUCON mode to Control Room, or one of Monitor A–D.
5 Click the reveal triangle to the left of the new Monitor group to show its attributes.
Now you can proceed to add and assign
Outputs and Sources. You can also add Fold downs and outputs for external Meters if
desired.

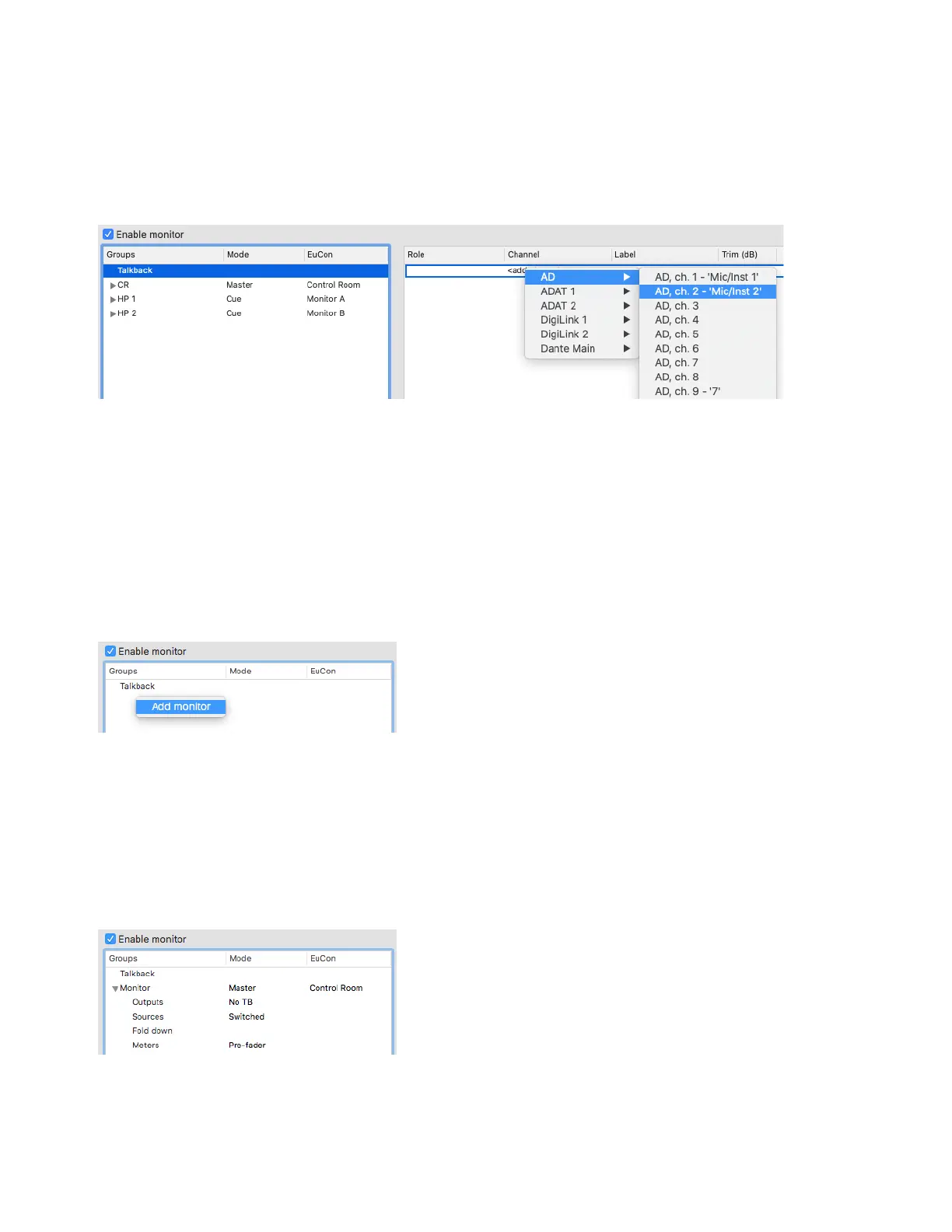

Assigning Talkback input
Right-click to Add monitor
Monitor group with no assignments
