Monitor Profiles 33
To remove a Monitor group:
Right-click the monitor group and choose Remove monitor.
Monitor Output Sets
You can add multiple output sets of any format (channel width) to a Monitor group. If there are multiple Outputs, the selected Out-
put in the Monitor section of DADman is used for monitoring.
To add output sets to a Monitor group:
1 If necessary, click the reveal button to list the attributes of the Monitor group.
2 Right-click on Outputs under Monitor and choose Add new set. Once you have created a new output set, it can be added to ad-
ditional Monitor groups from
Add existing set in the Right-click menu.
3 Right-click New output set and choose Rename (or double-click the name in the Groups column), and type a descriptive name.
4 Right-click the output set and select the desired channel width from Set group format. Choose from the available preset formats
(such as
Stereo or 5.1). You can also create custom formats (see Group Formats) to choose from.
5 Select the output set. The right pane lists all channels in the output set.
6 In the right pane, right-click each channel of the selected output and select the desired output assignment from the available out-
puts (such as
DA > DA, ch. 1).
7 If desired, click in the Label column of each row and type a descriptive label.
8 To adjust the trim on any channel, click in the Trim column for any channel and type a negative value to attenuate or a positive
value (in dB) to boost the output signal for that channel.
Once you have made all assignments for the output set, you can repeat these steps to add additional output sets to the monitor group.
You can select the desired output set for monitoring in the Monitor section of the DADman window. You can also assign output
set selection to the front panel buttons in the MTRX Studio page (see
MTRX Studio Page).

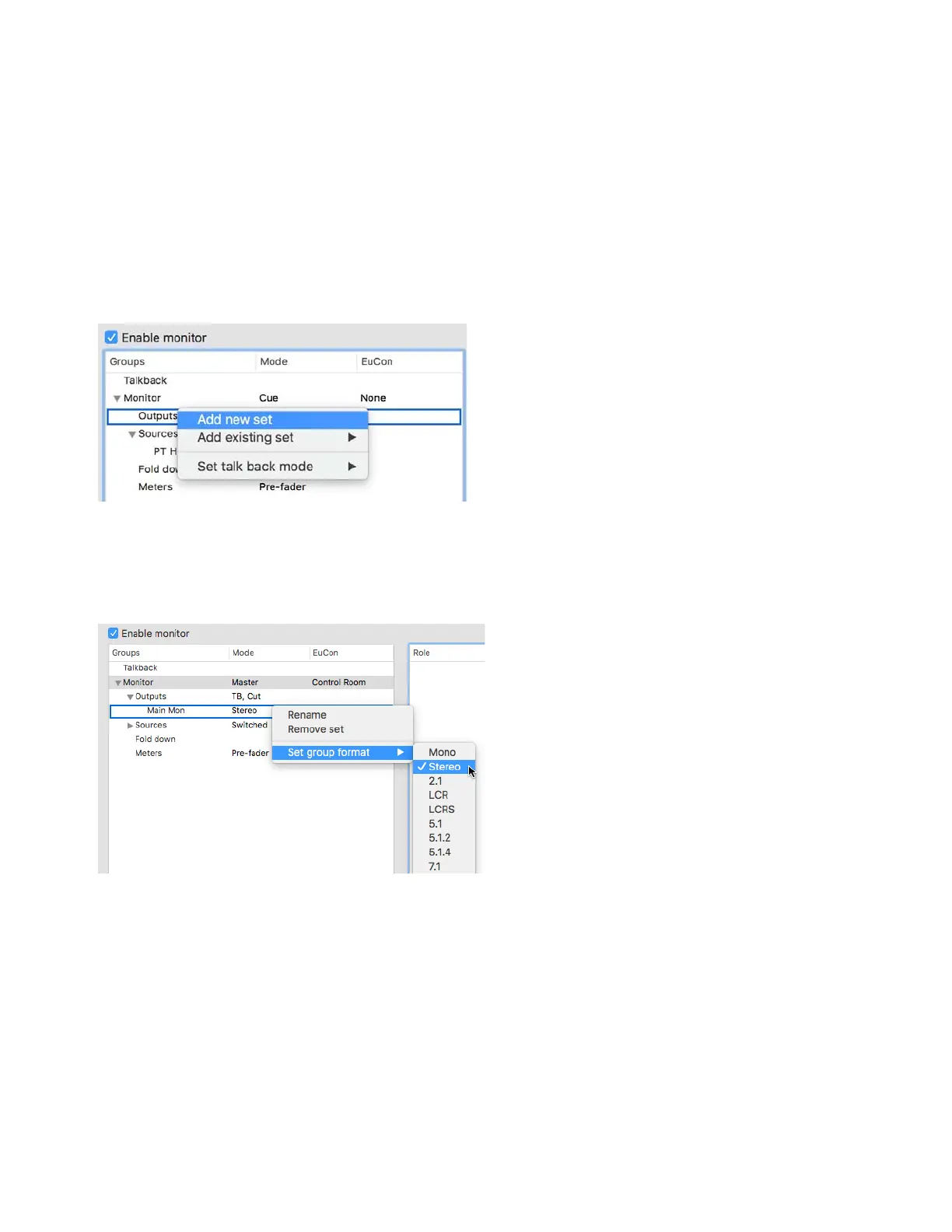

Add new output set
Set group format
