Monitor Profiles 35
6 In the right pane, right-click each channel of the selected input set and select the desired inpuy assignment from the available in-
puts (such as
DigiLink 1 > DigiLink 1, ch. 2).
7 If desired, click in the Label column of each row and type a descriptive label.
8 To adjust the trim on any channel, click in the Trim column for any channel and type a negative value to attenuate or a positive
value (in dB) to boost the input signal for that channel.
Once you have made all assignments for the input set, you can repeat these steps to add additional input sets. You can select the
desired input set for monitoring in the Monitor section of the DADman window. You can also assign input set selection to the front
panel buttons in the MTRX Studio page (see
MTRX Studio Page).
To remove an input set:
Right-click the input set and choose Remove set.
Fold Downs
You can add any Fold downs that are defined in the Fold Down page (see Fold Down Page) for use with the monitor group. If you
have added multiple Fold downs to a Monitor group, you can select (or deselect) any one of them in the Monitor section of the
DADman window. When selected, that Fold down is used for the Monitor group. For example, if you are monitoring a 5.1 source
over headphones, use a 5.1 to Stereo fold down. If no Fold down is selected, no Fold down is applied.
To add Fold down to a monitor group:
1 Click the Fold down tab and setup any fold down matrices that you want to be available for use (see Fold Down Page).
2 In the Groups page, right-click Fold down under the monitor group select the desired configured fold down from Add fold down.
Repeat these steps to add additional fold downs.
To remove a fold down from a monitor group:
Right-click the fold down and choose Remove fold down.

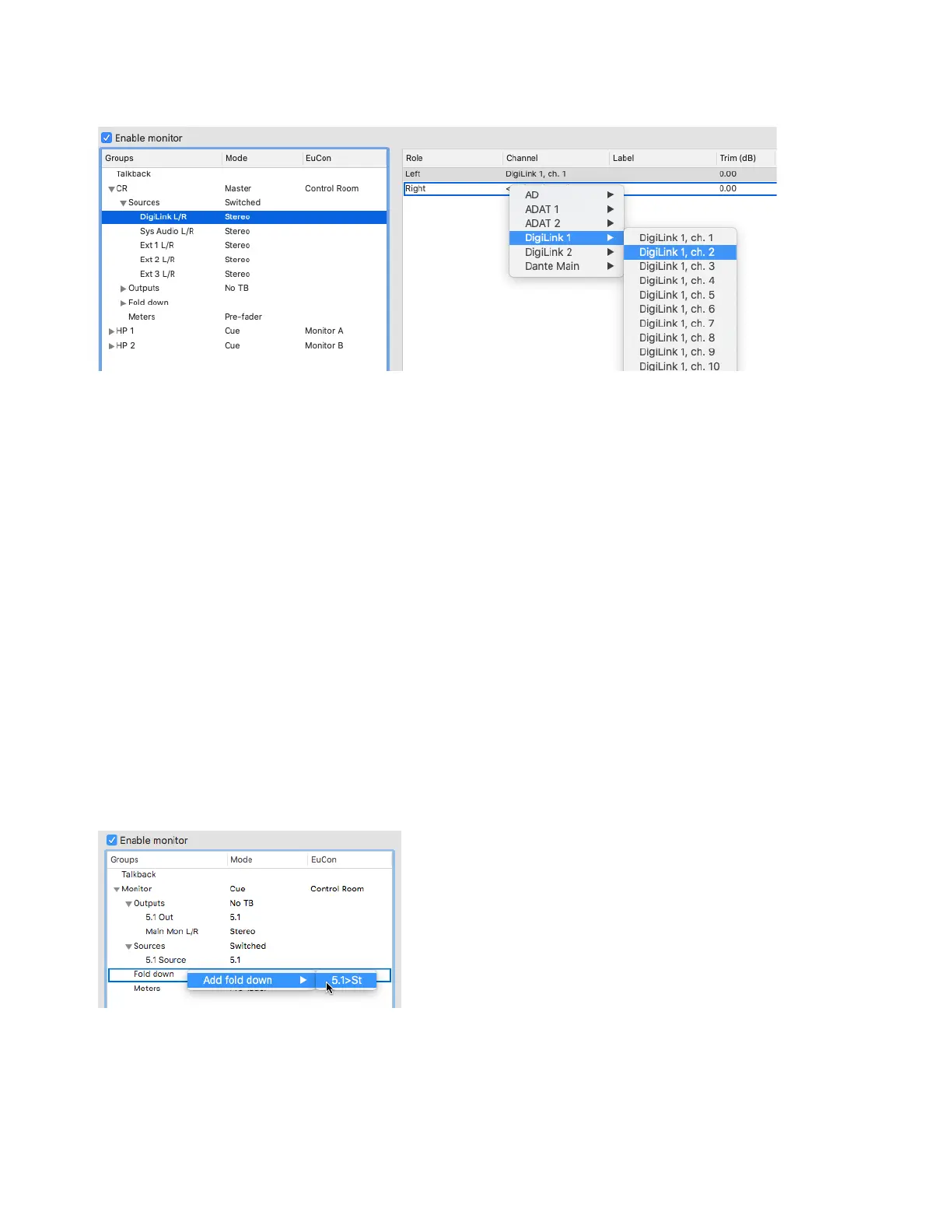

Assigning Right channel for selected source
Adding 5.1 to stereo fold down for monitoring
