Monitor Profiles 36
External Metering
You can assign one or more output sets for an external metering system (such as one from TC Electronics or DK Technologies).
Assign any metering output sets to parallel assigned monitoring output sets.
To add a parallel output to an external metering system:

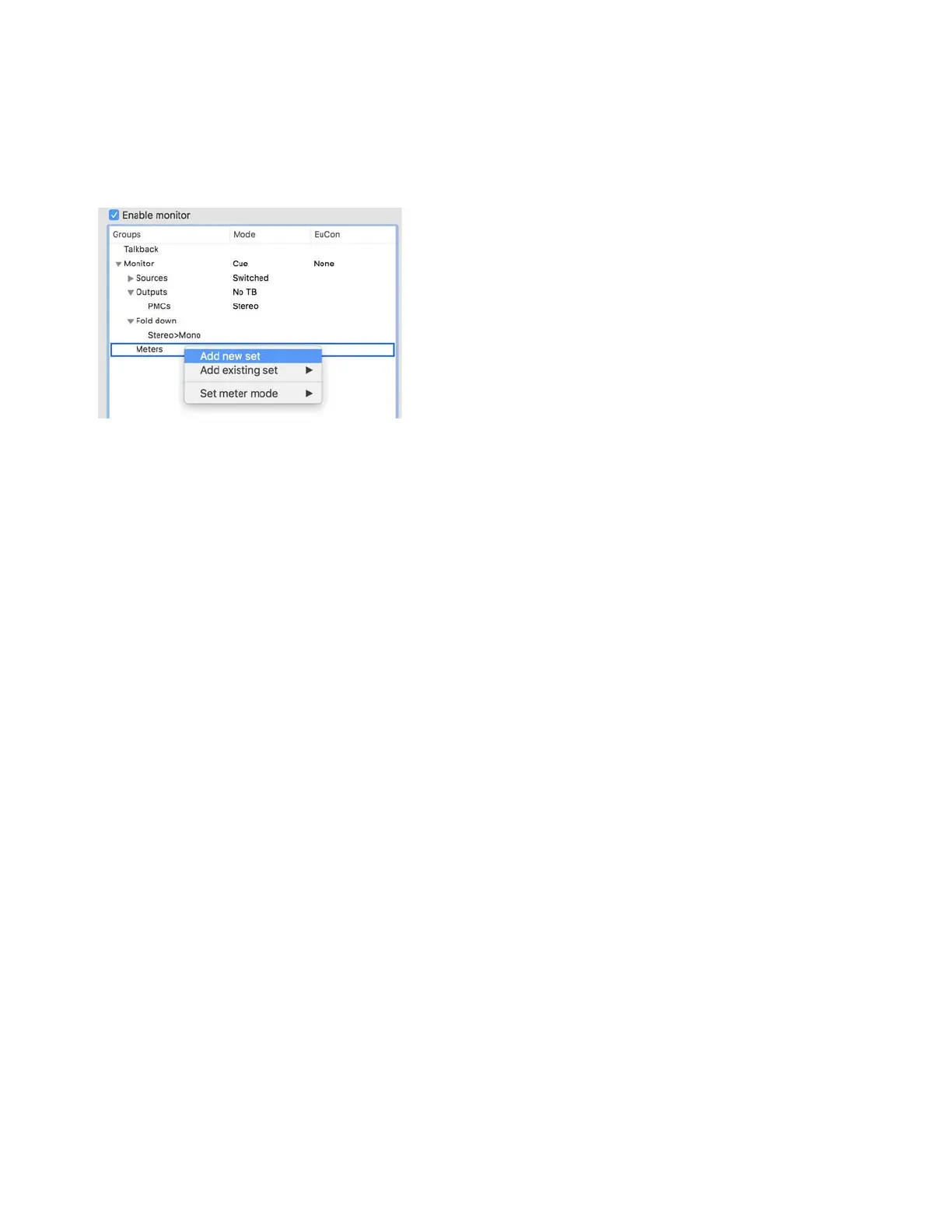

1 Right-click on Meters and choose Add new set or Add existing set.
2 To specify Pre- or Post-Fader operation, right-click on Meters, choose Set meter mode, then select the desired mode. Typically
you want to use pre-fader for recording workflows and post-fader for mixing workflows.
3 Right-click New output set and choose Rename (or double-click the name in the Groups column), and type a descriptive name.
4 Right-click the output set and select the desired channel width from Set group format. Choose from the available preset formats
(such as
Stereo or 5.1). You can also create custom formats (see Group Formats) to choose from.
5 Select the output set. The right pane lists all channels in the output set.
6 In the right pane, right-click each channel of the selected output and select the desired output assignment from the available out-
puts (such as
DA > DA, ch. 1).
7 If desired, click in the Label column of each row and type a descriptive label.
8 To adjust the trim on any channel, click in the Trim column for any channel and type a negative value to attenuate or a positive
value (in dB) to boost the output signal for that channel.
Once you have made all assignments for the output set, you can repeat these steps to add additional output sets to the monitor group
for external metering.
To remove an output set from Metering:
Right-click the output set under Metering and choose Remove set.
Remove Unused Groups button
Click the Remove Unused Groups button to remove any defined (existing), but unassigned input or output sets in the monitor pro-
file.
