Avidyne EX500/EX600 MFD -146- 600-00078-001 Rev 05
11.9.3 Map Symbols—Line Styles

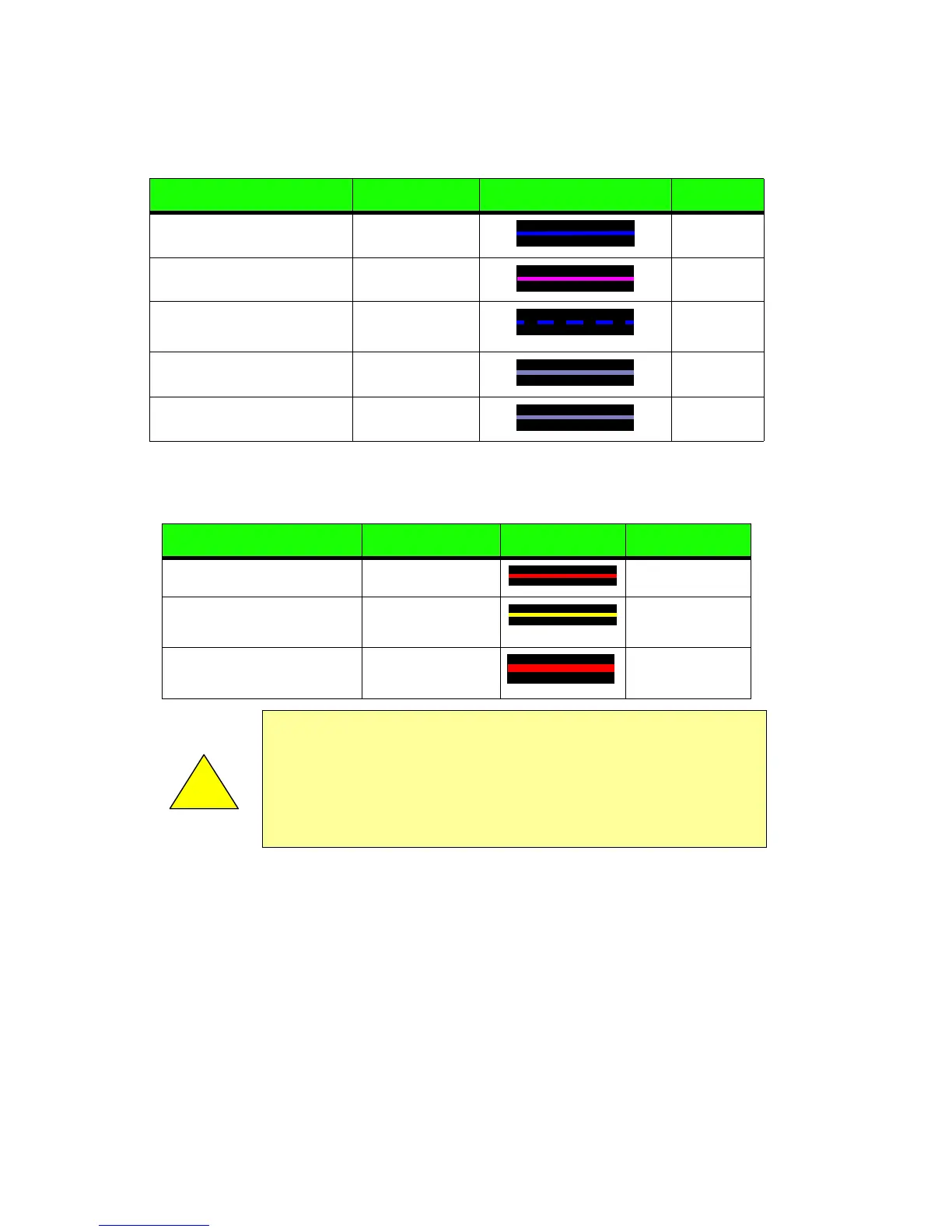

Table 11.8 Airspace and Airways Lines
Item Color Line Label
Class B Blue Elevation
Class C Magenta Elevation
Tower Zone (Class D)
Airspace
Dashed Blue None
Victor Airways Dark Yellow ID Label
Jet Airways Dark Yellow ID Label
Table 11.9 SUA and TFR Lines
Region Type Color Line Label
Prohibited, Restricted Red ID Label
Warning, Alert, MOA,
SFRA
Yellow ID Label
TFR
Red ID Label
!
For adjacent or overlaying types of Special Use Airspace
(e.g., Restricted Areas or Prohibited Areas within larger
MOAs), some masking of the border lines might occur. As
pilot in command, you must reference current aeronautical
charts for accurate boundaries.
