EN - English - Instruction manual
14 MNGCEVO_2116_EN
6.1.4 Installation with quick connectors
This installation mode with the quick connectors allows easy and fast replacement of the unit.

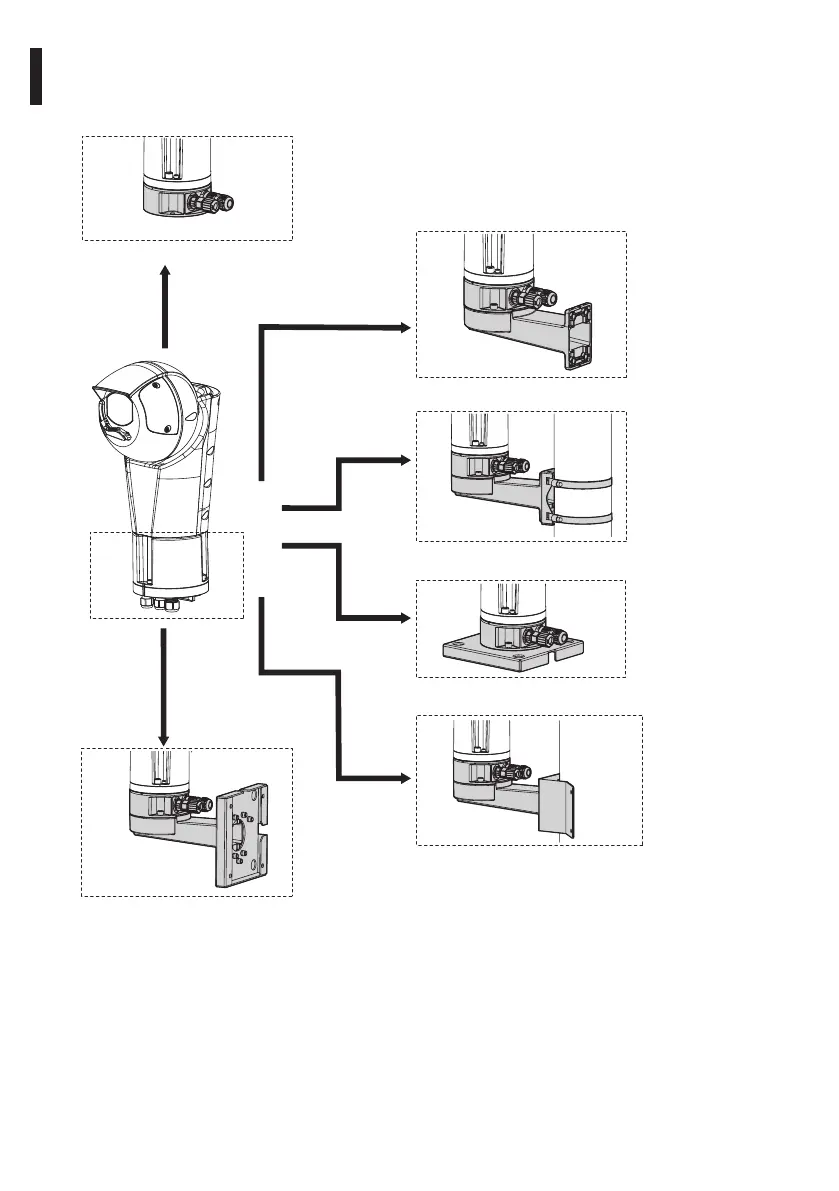

The image below shows the various upright mounting options.
D
E
C
F
B
A
AVUEBP4AA/AVUEBP7AA
AVUEBP4AA/AVUEBP7AA + AVUEBWAA
AVUEBP4AA/AVUEBP7AA + AVUEBWAA + AVUEAC
AVUEBP4AA/AVUEBP7AA + AVUEAW
AVUEBP4AA/AVUEBP7AA + AVUEBWAA + AVUEAP
AVUEBP4AA/AVUEBP7AA + AVUEBWAA + AVUEAW
Fig. 7
