6.1.3 Installation with internal cable passage with product inverted
CAUTION! Always secure the product with the safety chain (6.8 Fastening of the safety coupling,
page 20).
This installation mode allows cable passage inside the mounting brackets.

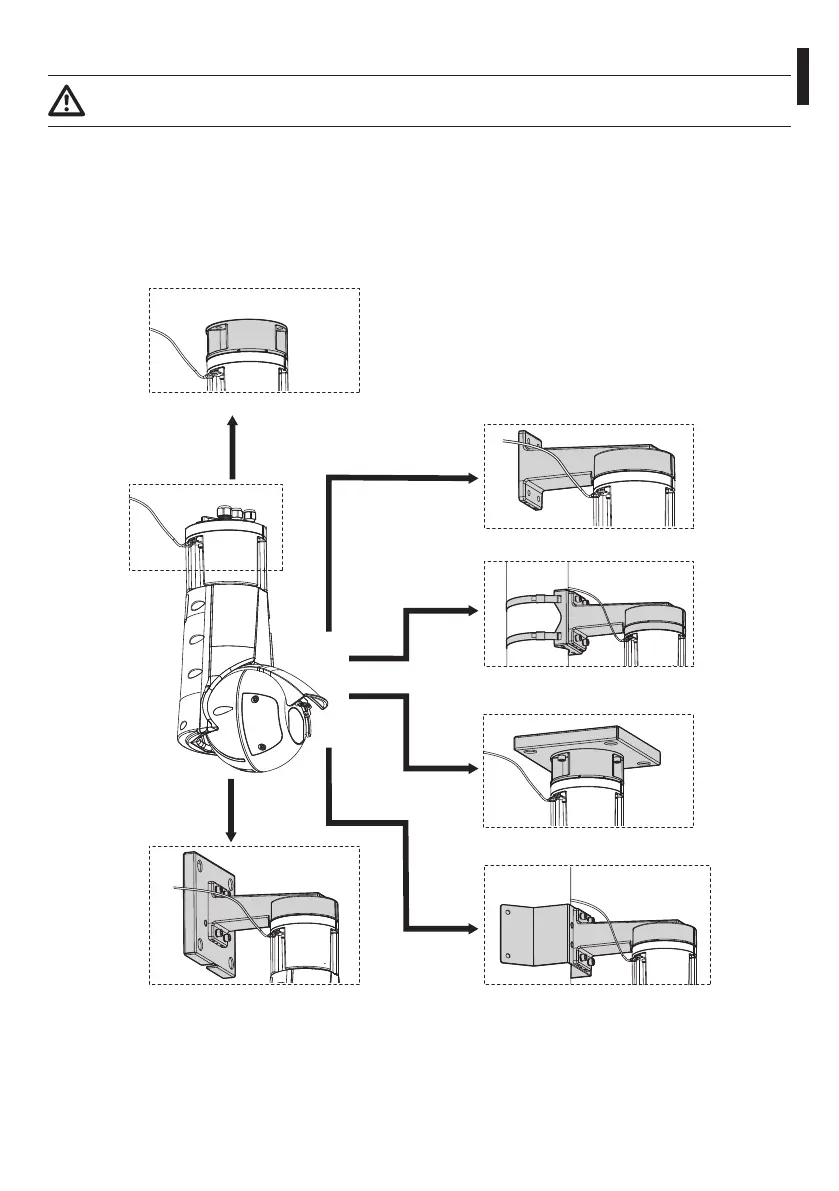

The image below shows the various inverted mounting options.
In the event of installation of the product inverted, the sunshield must be assembled as illustrated in the
relevant chapter (6.7 Sunshield mounting, page 20) and enable the Ceiling Orientation mode using the web
interface.
D
E
C
F
B
A
AVUEBP0AA
AVUEBWAA
AVUEBWAA + AVUEAC
AVUEBP0AA + AVUEAW
AVUEBWAA + AVUEAP
AVUEBWAA + AVUEAW
Fig. 6

Avigilon H5A Specifications

General

IR Illumination	Yes
Impact Protection	IK10
Local Storage	MicroSD card slot
Sensor Type	CMOS
WDR	Yes
Analytics	Object Detection, Unusual Motion Detection, Face Detection
Ingress Protection	IP66
Sensor	Progressive Scan CMOS
Lens	Motorized varifocal
Day/Night	Yes
Video Compression	H.264, H.265
Frame Rate	Up to 30 fps
Audio	Yes (2-way)
Power	PoE (IEEE 802.3af/at)
Onvif Compliance	Yes
Focal Length	2.8 mm to 12 mm
Minimum Illumination	0 lux
Network Interface	10/100 Ethernet
Resolution	Up to 8 MP (3840 x 2160)
Field of View	H: 108° to 32°
