Avigilon H5A User Manual

EN - English - Instruction manual
16 MNGCEVO_2116_EN

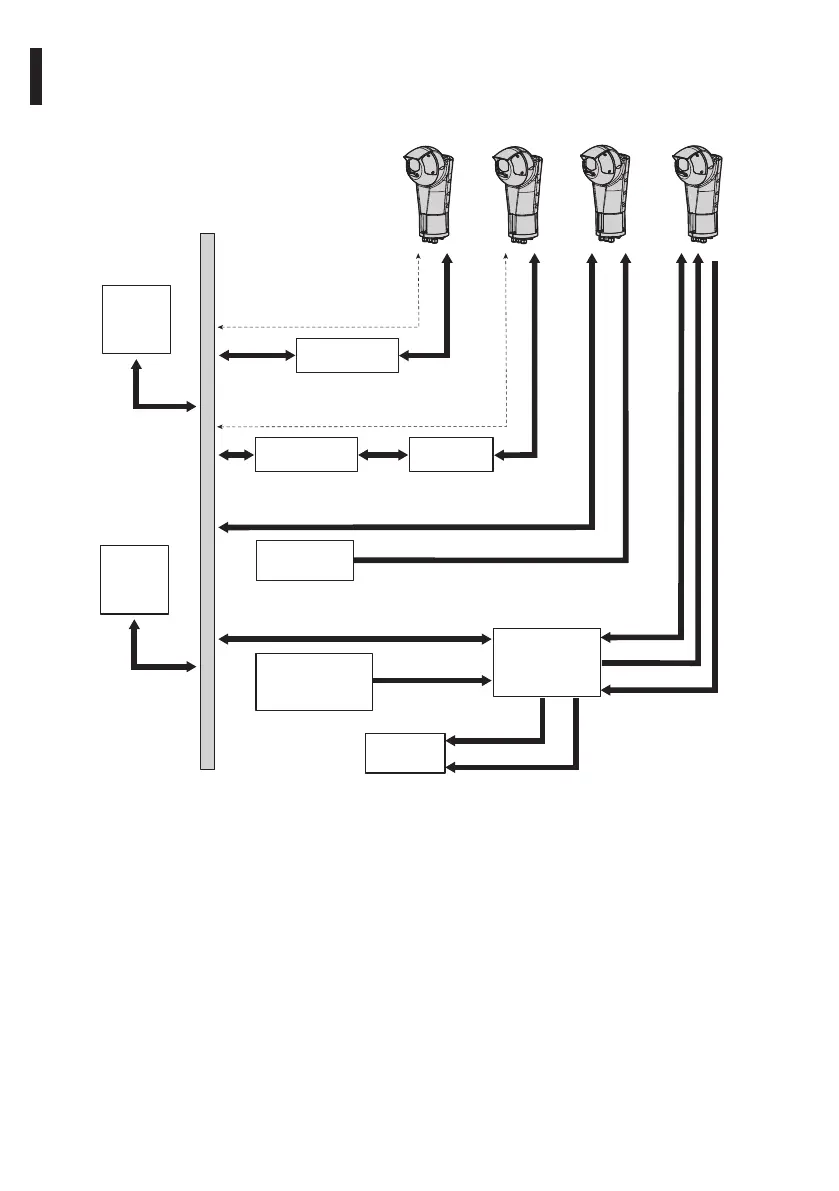

6.1.6 Typical connection of accessories
The figure displays how the accessories can be connected to the product.
PC
VMS
AVSURGEPR
PHIHONG
/POE90U-1BT
PHIHONG
/POE90U-1BT
24Vac
/120Vac-127Vac
/220Vac-230Vac
AVWASPT
24Vac/24Vdc
Network
AVCOMB100A
/AVCOMB200A
/AVCOMB300A
H5A
CAMERA
H5A
CAMERA
H5A
CAMERA
H5A
CAMERA
24Vac
24Vac
ETH
ETH
ETH
RL2A/RL2B
RL2A/RL2B
ETH 100m max or fiber optic
ETH 100m max
ETH 100m max
100m max
ETH
ETH
100m max
Fig. 9
The power supply cables must be appropriately dimensioned. 0.75mm² (18AWG) or heavier wire is
recommended for most cable runs between the 24Vac/24Vdc power source and the camera (15 Technical data,
page 30). If a longer cable run is required, a wire gauge table should be consulted to ensure that the voltage at
the camera does not drop outside of the specified range when the camera is operating at the maximum rated
power draw.
The AVSURGEPR accessory must be installed close to the PTZ.

Avigilon H5A Specifications

General

IR Illumination	Yes
Impact Protection	IK10
Local Storage	MicroSD card slot
Sensor Type	CMOS
WDR	Yes
Analytics	Object Detection, Unusual Motion Detection, Face Detection
Ingress Protection	IP66
Sensor	Progressive Scan CMOS
Lens	Motorized varifocal
Day/Night	Yes
Video Compression	H.264, H.265
Frame Rate	Up to 30 fps
Audio	Yes (2-way)
Power	PoE (IEEE 802.3af/at)
Onvif Compliance	Yes
Focal Length	2.8 mm to 12 mm
Minimum Illumination	0 lux
Network Interface	10/100 Ethernet
Resolution	Up to 8 MP (3840 x 2160)
Field of View	H: 108° to 32°
