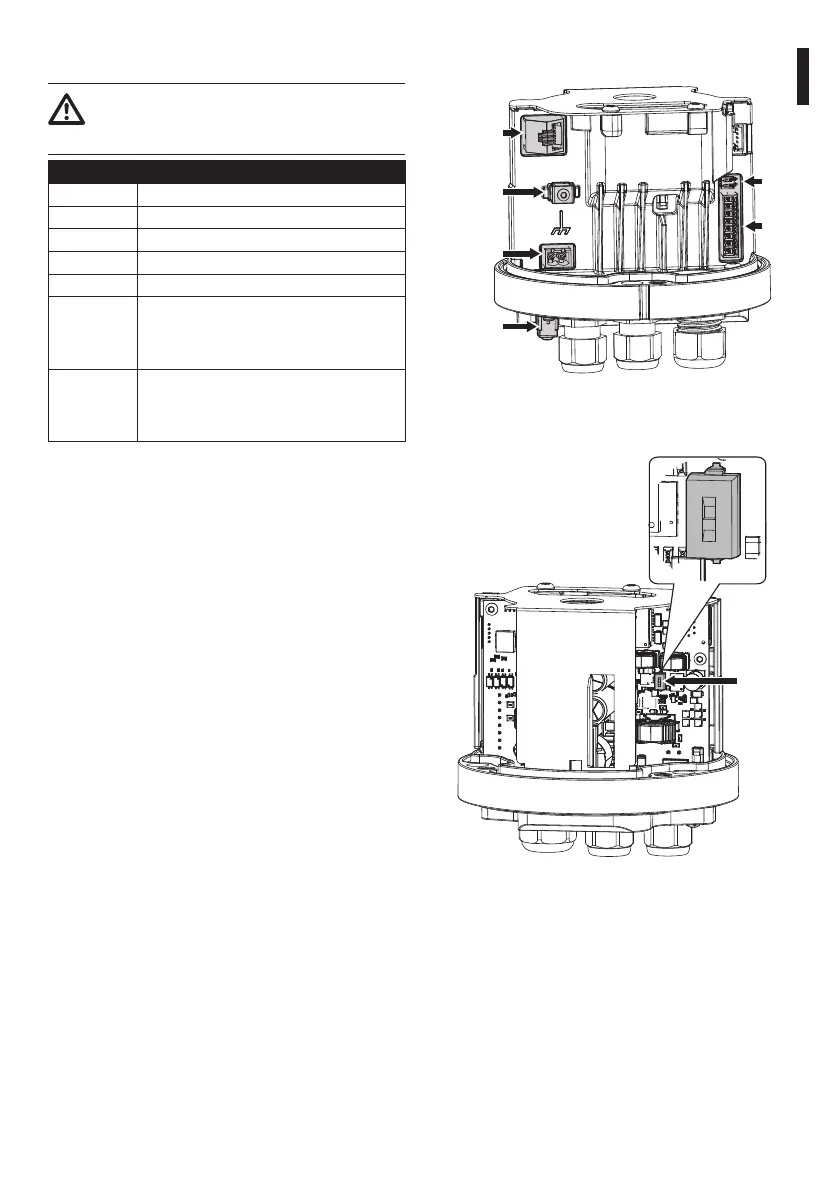

6.9 Connector board description
The earth ground cable must always be
connected to the relevant terminal (GND_
INT or GND_EXT, Fig. 21, page 21).
BOARD DESCRIPTION
Connector Function
J3 Ethernet
J4 Power supply
J6 Digital I/O
S1, S2 Reset to Factory Default Settings
GND_INT
(internal
earth ground
terminal)
Earth ground connection, 24Vac/Vdc power
supply
GND_EXT
(external
earth ground
terminal)
Earth ground connection, power supply in
PoE 90W
Tab. 3
J4
GND_INT
GND_EXT
S1
J6
J3
Fig. 21
S2
Fig. 22
