Avigilon H5A User Manual

EN - English - Instruction manual
24 MNGCEVO_2116_EN

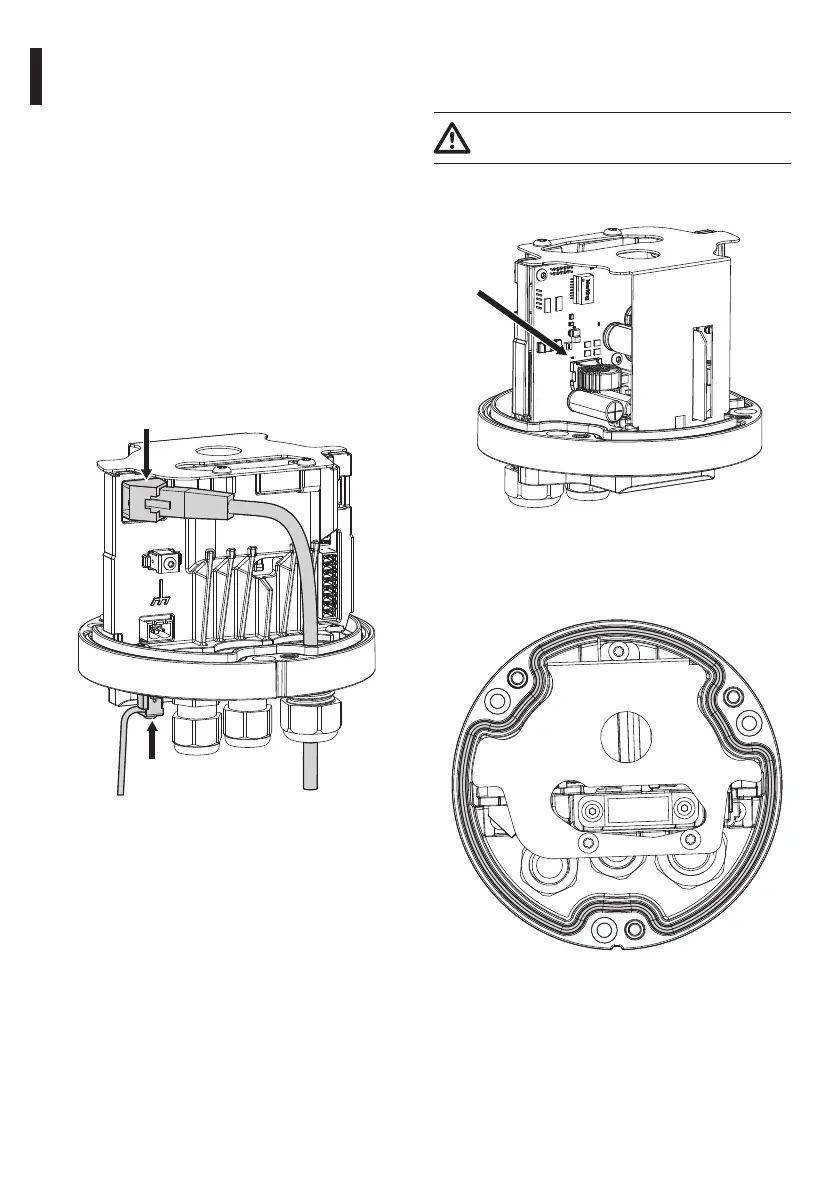

6.12 Connection of the Ethernet
cable
Use of Ethernet cables with the following
characteristics is highly recommended:
• Minimum cabling type: Class D (ISO/
IEC11801:1995) or Category 5 (ANSI/EIA/TIA-
568-A:1995).
• Shielded twisted cable (STP)
• 4 pair
• Maximum DC Loop Resistance: 25ohm
Connect the ethernet cable to the relative connector
(J3, Fig. 28, page 24).
If the product is powered by 90W PoE, the ground
cable must be connected to the relevant terminal
(GND_EXT, Fig. 28, page 24).
GND_EXT
J3
Fig. 28
6.13 Installation of the upper
body
Installation of the upper body must take
place with the base not powered.
Check the LED indicated in the figure is off (Fig. 29,
page 24).
Fig. 29
Check the gasket on the base is in good condition
and positioned correctly.
Fig. 30

Avigilon H5A Specifications

General

IR Illumination	Yes
Impact Protection	IK10
Local Storage	MicroSD card slot
Sensor Type	CMOS
WDR	Yes
Analytics	Object Detection, Unusual Motion Detection, Face Detection
Ingress Protection	IP66
Sensor	Progressive Scan CMOS
Lens	Motorized varifocal
Day/Night	Yes
Video Compression	H.264, H.265
Frame Rate	Up to 30 fps
Audio	Yes (2-way)
Power	PoE (IEEE 802.3af/at)
Onvif Compliance	Yes
Focal Length	2.8 mm to 12 mm
Minimum Illumination	0 lux
Network Interface	10/100 Ethernet
Resolution	Up to 8 MP (3840 x 2160)
Field of View	H: 108° to 32°
