EN - English - Instruction manual
20 MNGCEVO_2116_EN

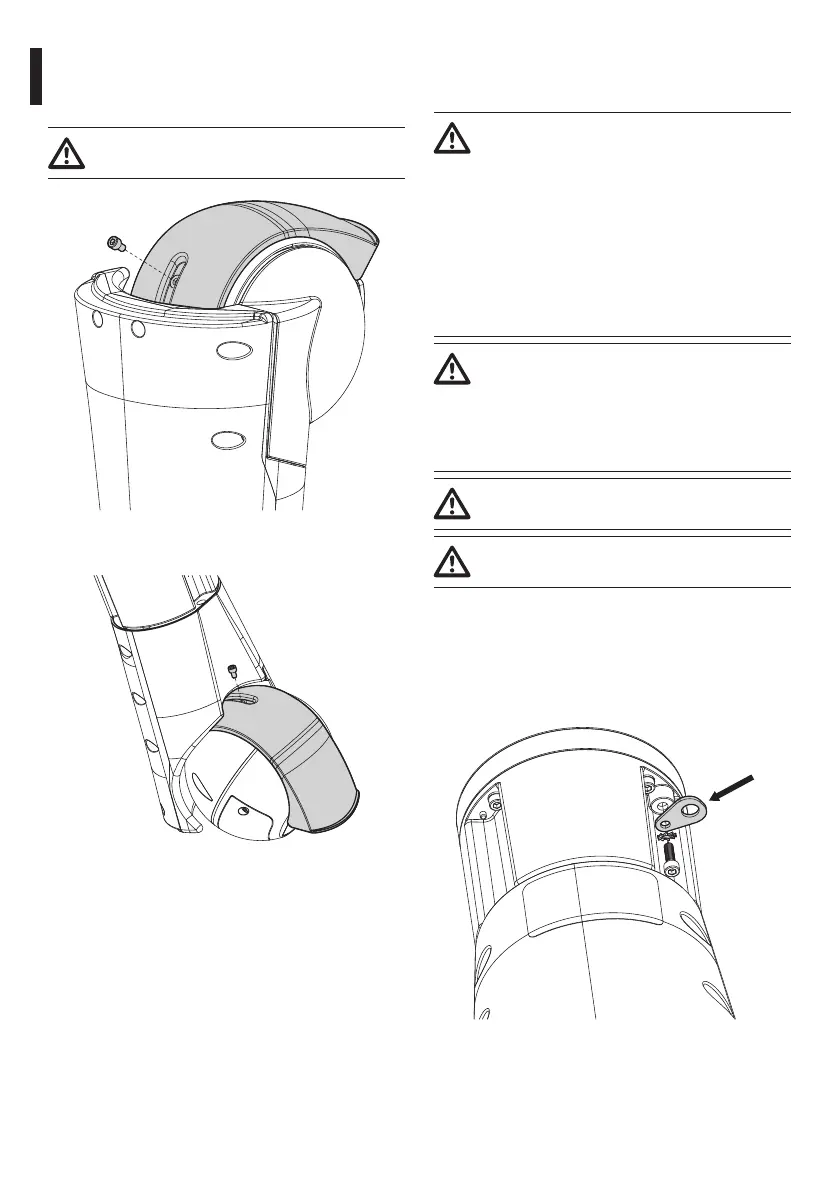

6.7 Sunshield mounting
You can fix the sunshield to the housing using the
screws supplied.
Pay attention to the fixing. Tightening
torque: 1.6Nm (±0.2Nm).
Fig. 18 Upright installation of the product.
Fig. 19 Installation of the product inverted.
6.8 Fastening of the safety
coupling
Take special care when attaching and
fastening down the apparatus. If the
equipment must be fastened to a concrete
surface, plugs must be used with a
minimum traction force of 300dN each. For
a metal surface use screws with a diameter
of at least 8mm and of an appropriate
length. The fastening system must be
capable of supporting at least 4 times
the weight of the entire equipment (PTZ,
supports and adapters).
Use an external anchor point to fix the
chain or the safety cable to the unit support
surface. Choose a chain or safety cable
capable of supporting 4 times the weight
of the unit, including its brackets and
adaptors.
Pay attention to the fixing. Tightening
torque: 4.5Nm (±0.2Nm).
Apply thread-locker into the holes for
screws (Loctite 243®).
The product is equipped with a safety coupling to
secure the product and a second fastening point
using the chain.
Position the safety coupling and fix it with the screw
and the washer supplied as shown in the figure
below.
Fig. 20
