■ Release all DO (digital output) latches setup
(1) In the operation display mode, keep the [para] key
pressed for 2 sec. or longer.
>> The unit then enters the parameter setting mode.

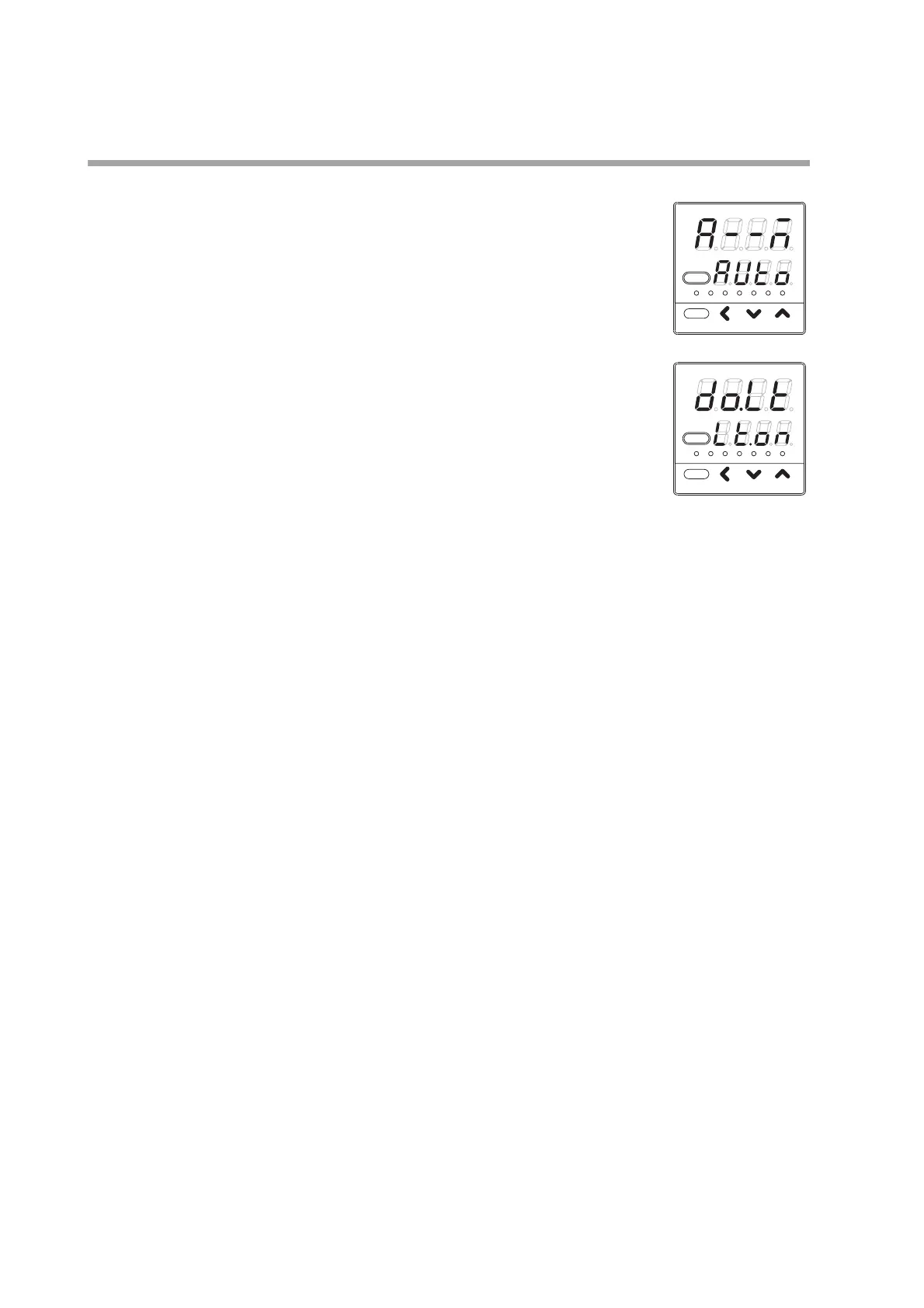

(2) Press the [para] key several times.
>> Display the parameter setting [do.Lt: Release all DO
latches].
(3) Press the [], or []key to set the value you have
selected from the following in [do.Lt].
Lt.on: Latch continue
Lt.oF: Latch release
>> When no keys are pressed for 2 sec. or longer, the flashing of the numeric
value is stopped to set the currently displayed value. When releasing the
latch in the digital output process after setting [Lt.oF], the setting item is
automatically changed to [Lt.on].
(4) Press the [mode] key.
>> The display is returned to the operation display.
<
<
