Azkoyen COMBO-T User Manual

12
10 - 2011
4 DATASHEET OF COMPONENTS

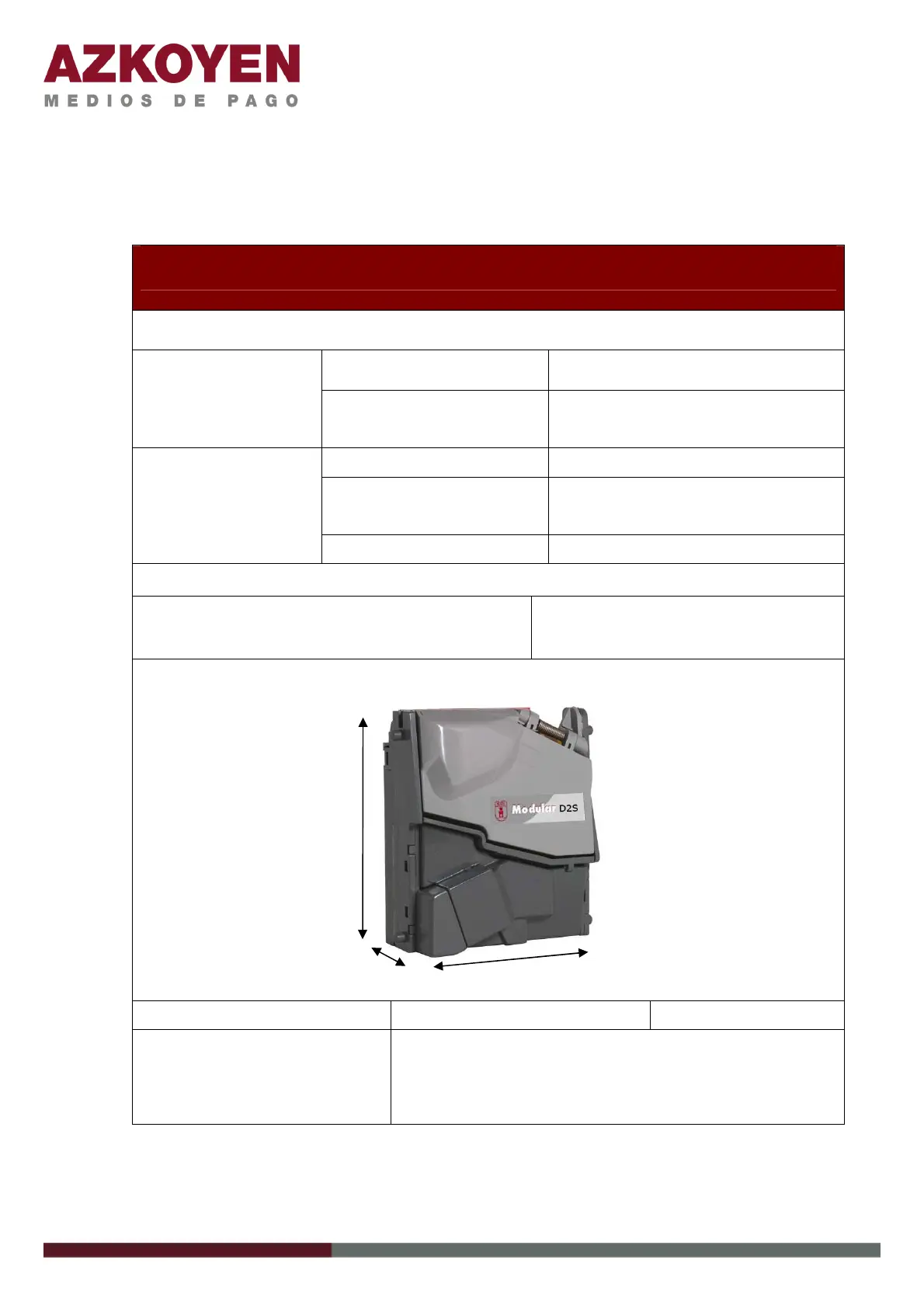

4.1 COIN VALIDATOR X6-D2S CCTALK
VALIDATOR X6-D2S CCTALK
Name: X6-D2S ccTalk
Voltage:
12VDC – 24VDC (±10%)
Technical
Characteristics
Current draw: Standby = 50 mA (±10%)
Operation = 500 mA (±10%)
Temperature Range: +5 ºC a +55 ºC (41 ºF a 131 ºF)
Temperature Range
storage:
-25ºC a +70ºC (-13 ºF a 158 ºF)
Environment
Specifications:
Relative humidity: 95 % RH (without condensation)
Electronic Interface: Serial ccTalk® Generic Specification, Issue 4.3
Diameter of coins:
16.5 – 32 mm (0.64 – 1.25 in.)
Thickness of coins:
1.2 – 3.5mm (0.04 – 0.13 in.)
Dimensions:
X= 89 mm (3.5 in.) Y = 48 mm (1.88 in.) Z=102 mm (4.01 in.)
Pinout of ccTalk connector
2x10-way:
PIN 1 = DATA in ccTalk®
PIN 7 = VDC
PIN 8 = GND
X
Y
Z
