ccTalk address
SW1
SW2
SW3
SW4
3
OFF OFF OFF OFF
4
ON OFF OFF OFF
5
OFF ON OFF OFF
6
ON ON OFF OFF
7
OFF OFF ON OFF
... ... ... ...
18
ON ON ON ON

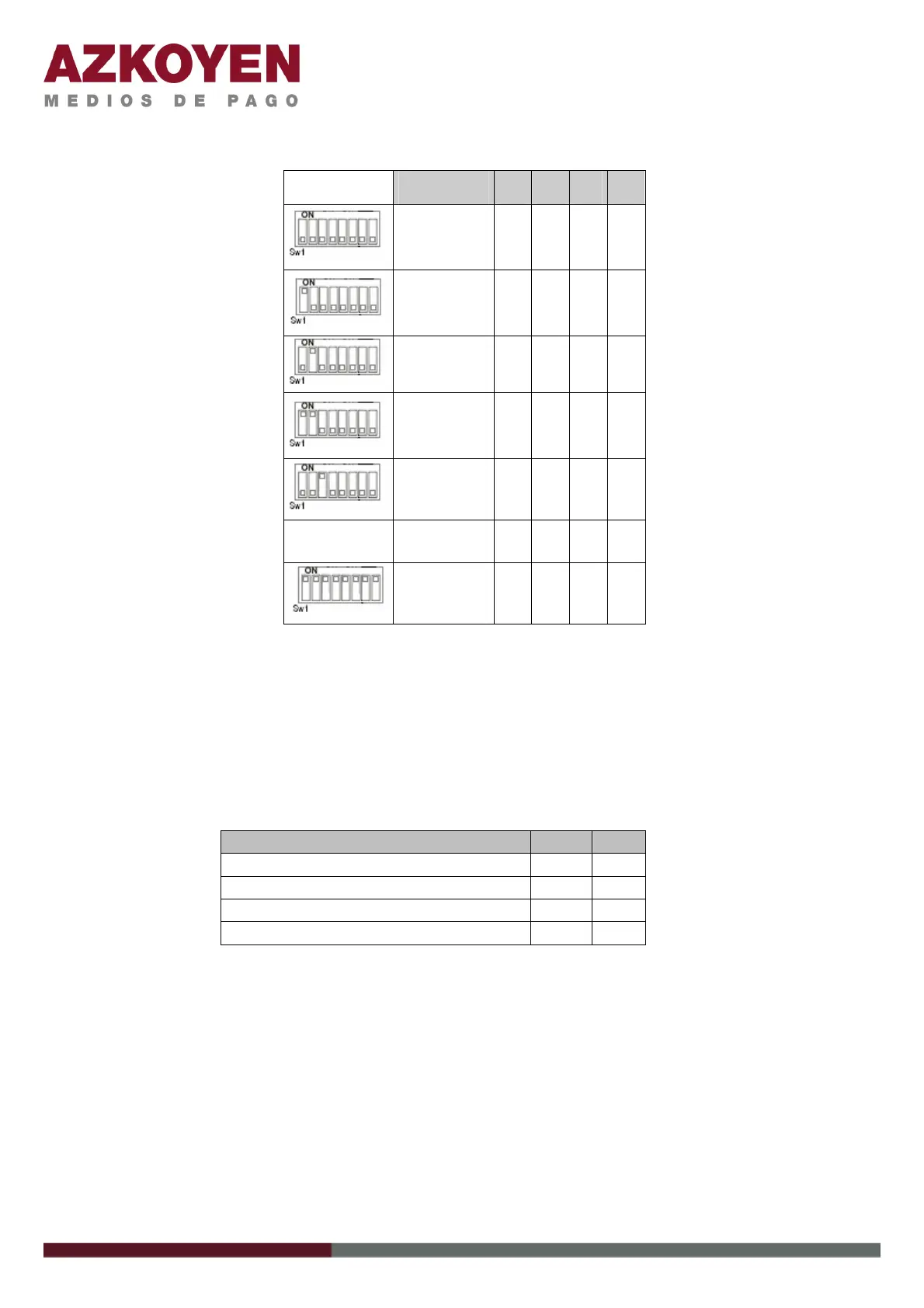

Table 23: Selection cctalk address using switches
• Configuration of the working mode
With switches SW7 and SW8 you establish the working mode,
As shown in the table:
WORKING MODE SW7 SW8
STANDARD OFF OFF
STANDARD ENCRYPTED* OFF ON
PLUS* ON OFF
PLUS ENCRYPTED ON ON
Table 24: Working modes in ccTalk
* Notes:
ENCRYPTED – The communication in the ccTalk bus is protected using encryption
codes for greater security. The master ccTalk should also be working in encryption
mode.
PLUS – Name of the model of Hopper U-II that has a double optic sensor on the
coin exits. For the activation of the PLUS function, it is necessary for the Hopper to
have the hardware, i.e. double sensor.
