10 - 2011

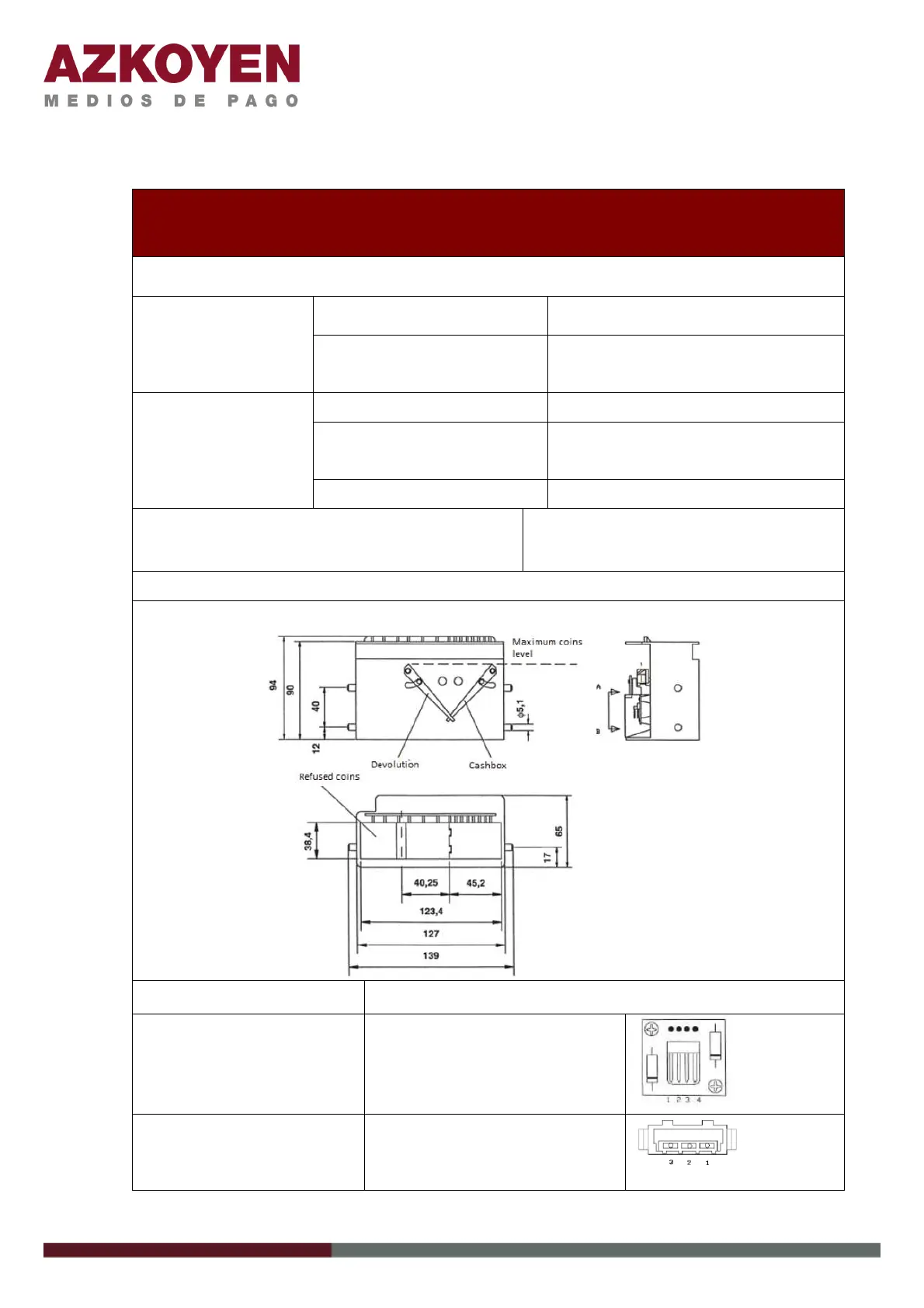

4.4 ESCROW
ESCROW
Name: Escrow or V- Retainer
Voltage: 24VDC (±20%)
Technical
Characteristics
Current draw: Operation = 1.3 A (24VDC) per
solenoid
Temperature Range: +5 ºC a +55 ºC (41 ºF a 131 ºF)
Temperature Range
storage:
-25ºC a +70ºC (-13 ºF a 158 ºF)
Environment
Specifications:
Relative humidity: 95 % RH (without condensation)
Diameters of coins:
16.25 – 32.5 mm (0.63 – 1.27 in.)
Thickness of coins:
1.2 – 3.2mm (0.04 – 0.12 in.)
Capacity of coins: 35 (with 24mm Φ and 2,8 mm thickness)
Dimensions:
Activation time: T maximum = 2 s
Main connector:
PIN 1 = Refund solenoid
PIN 2 = VDC
PIN 3 = VDC
PIN 4 = Cashbox solenoid
Micro switch connectors
(for models with
activation detection):
PIN 1 = Common
PIN 2 = SW refund
PIN 3 = SW cashbox
