Azkoyen COMBO-T User Manual

13
10 - 2011

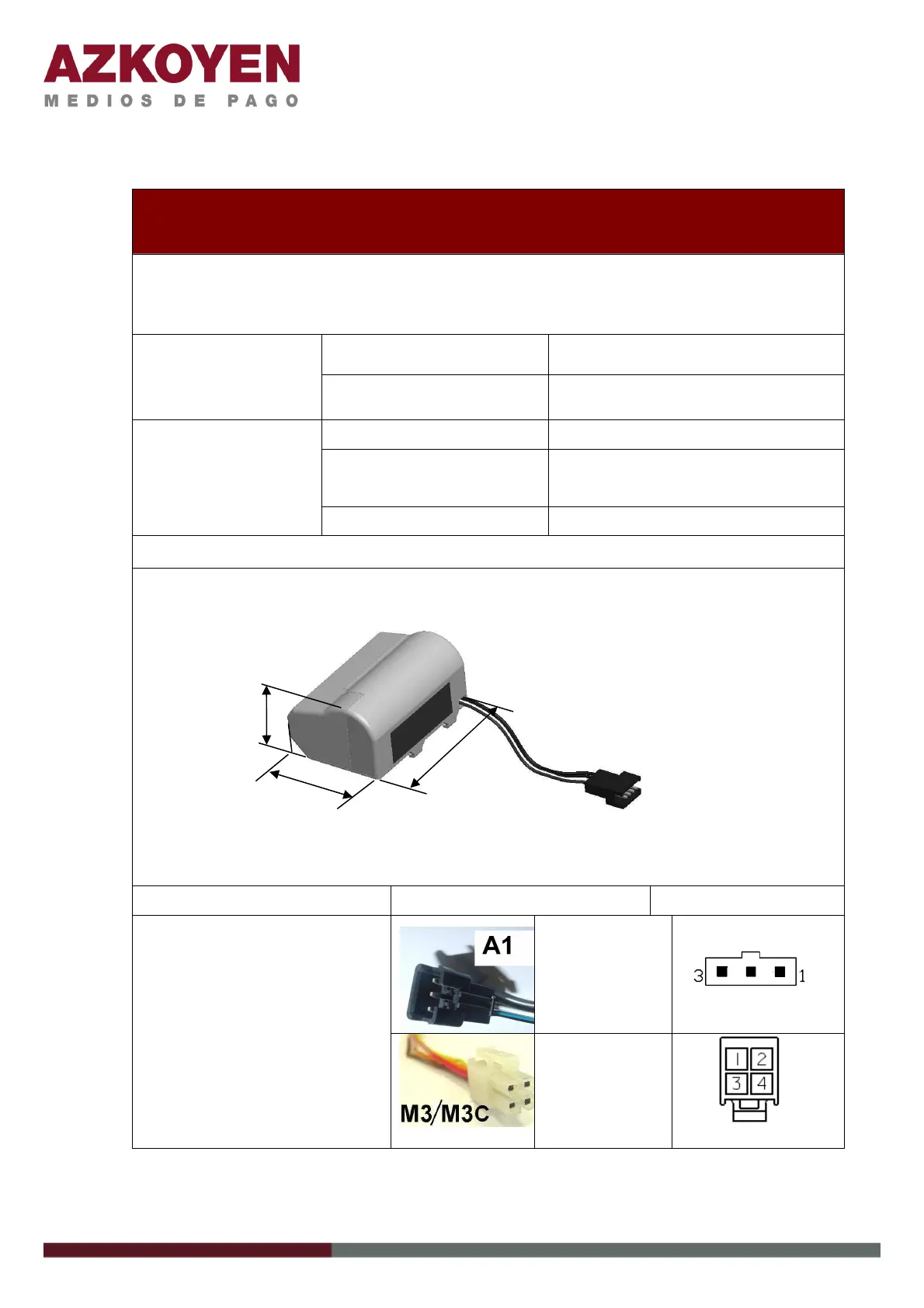

4.2 REFUND MODULE
REFUND MODULES
Names:
/R24 Refund Motor, non-autonomous 24V
/R24A Refund Motor, autonomous 24V
Voltage:
24VDC (±10%)
Technical
Characteristics
Current draw:
Operation = 500 mA (±10%)
Temperature Range: +5 ºC a +55 ºC (41 ºF a 131 ºF)
Temperature Range
storage:
-25ºC a +70ºC (-13 ºF a 158 ºF)
Environment
Specifications:
Relative humidity: 95 % RH (without condensation)
Electronic Interface: diverse options of connections with parallel control
Dimensions:
X= 42 mm (1.65 in.) Y = 29 mm (1.14 in.) Z=61.5 mm (2.42 in.)
AUTONOMOUS
Connectors:
non-autonomous
1 – VDC
2 – GND
3 – SW1.1
4 – SW1.2
X
Y
Z
1 – VDC
2 – PULSE
3 – GND
