5.3.2 Layout of the classification paths
The exit paths of the sorter module (S1, S2,
S3, S4 and S5) are as follows:

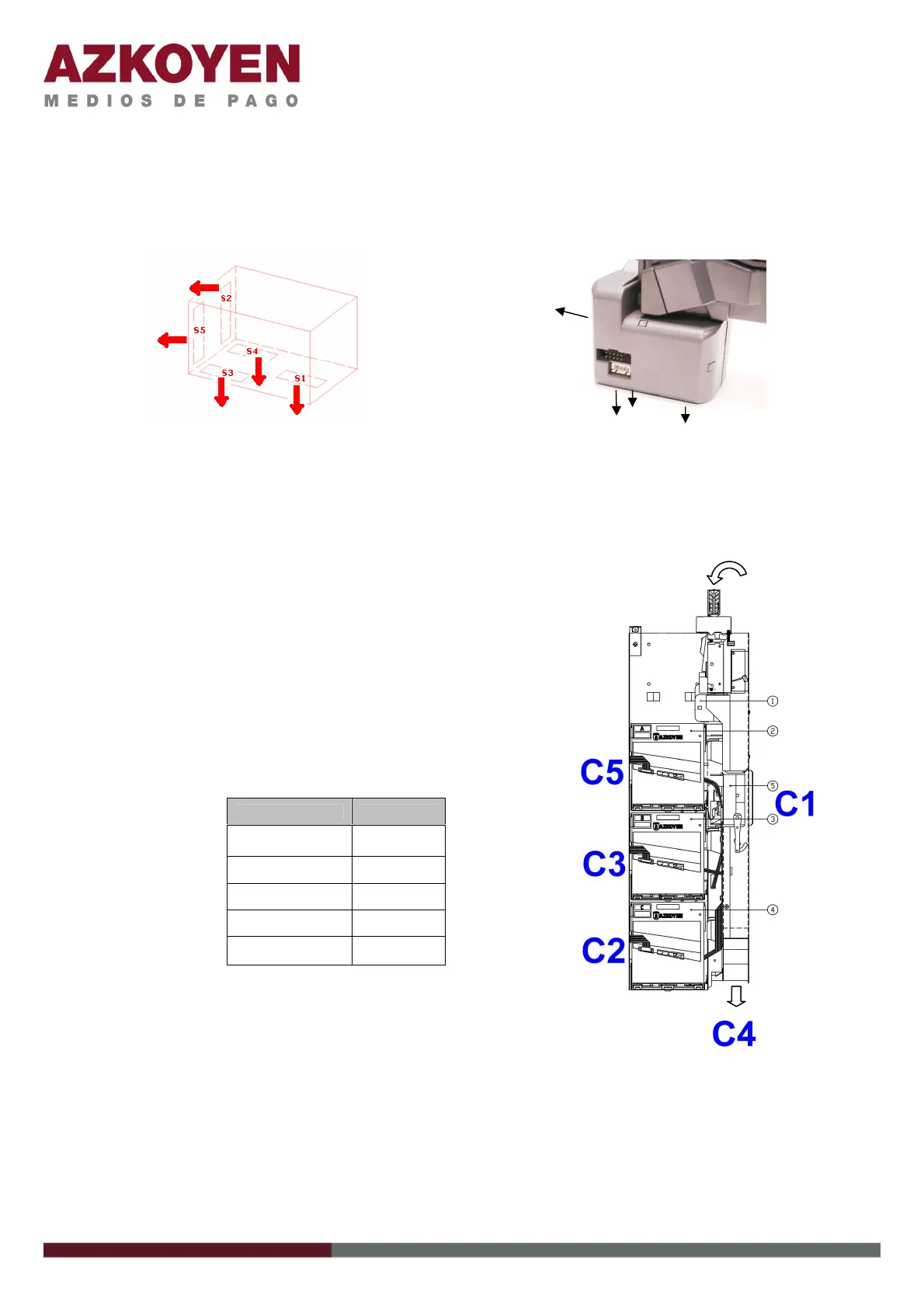

Figure 11: Paths of classification
The exit paths direct the coins to the corresponding paths C1, C2, C3, C4 and C5, to reach their final
destination: filling of hoppers, intermediate storage into the escrow or cashbox.
Description of the paths with the destination of the coins
Exit 

 Path Destination
S1  C1
Escrow (or V
Retainer)
S2  C2
Hopper C
S3  C3
Hopper B
S4  C4
Cash box
S5  C5
Hopper A
S5
S3
S4
S1
S2
C
B
A
V
CASH
BOX
Table 5: Range of coins and exit paths
Figure
12: Diagram
of classification
paths
