10 - 2011
5 DESCRIPTION OF COMPONENTS
5.1 COIN VALIDATOR X6-D2S CCTALK
The coin-mechanism or coin validator whose job it is to recognise and validate coins inserted by users also
controls their classification.
Through electromagnetic sensors and optical controlled by a digital microprocessor with technology DSP, the
validator is capable of recognizing any programmed coin with a great precision, guaranteeing the functioning
of free fraud and avoiding the acceptance of coins that have not been programmed.
1. Coin entry
2. Sensor module
3. Outlet module
4. Reject outlet
5. Accepted coin outlet

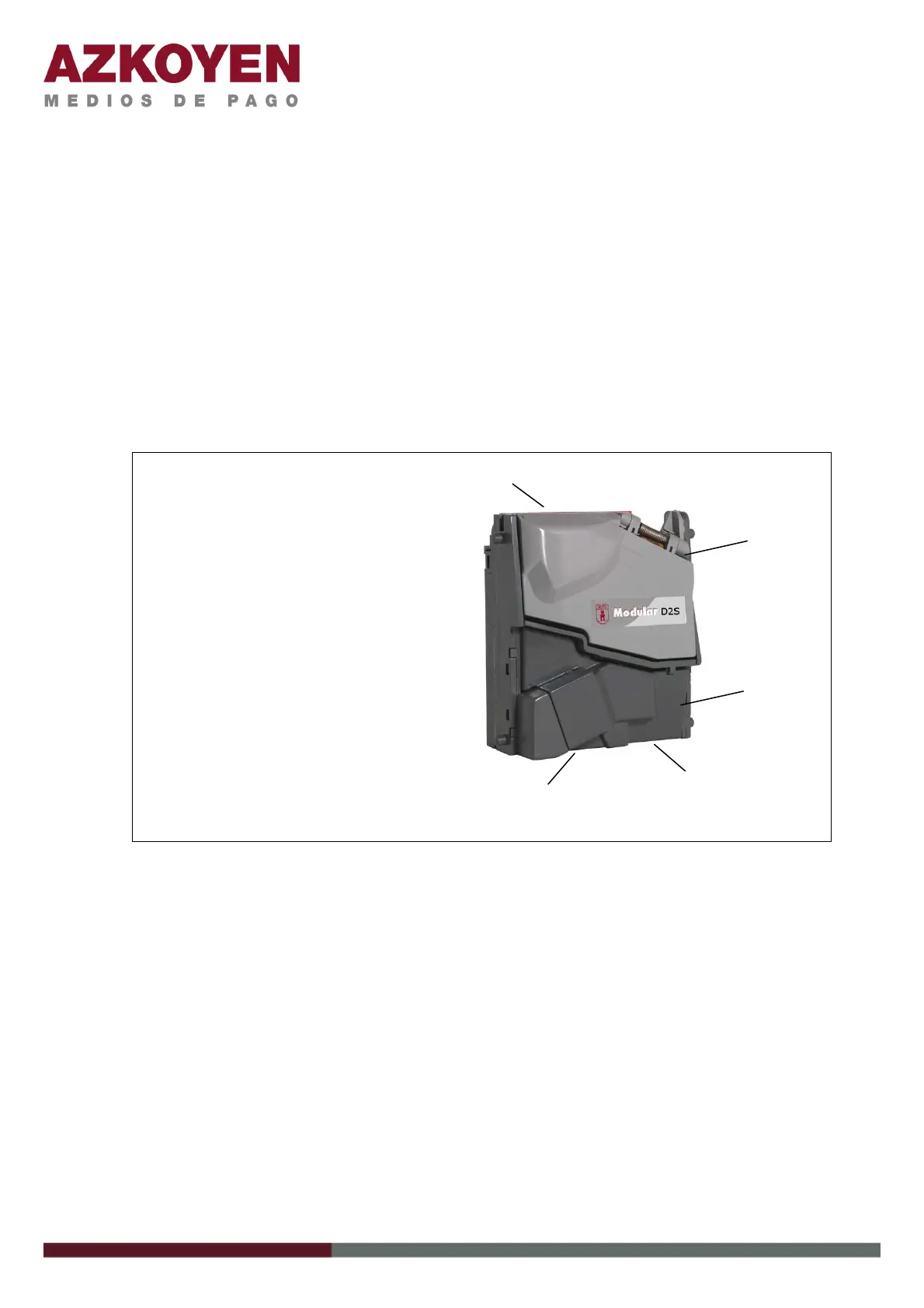

Figure 4: Description of components of the validator
5.1.1 Technical Characteristics
• Admission of up to 32 types of different coins.
• Of these 32 coins, 2 are auto-programmable at the machine.
• High precision measurement of magnetic and physical parameters of coins due to the use of DSP
technology.
• It is compatible with the validators of 3.5” format.
• It implements the Protocol cctalk.
• It allows the tele-programming and flashing of firmware directly from the serial port.
4
1
2
3
5
