30
10 - 2011
5.4.1
Physical characteris
tics
Range of coins
T
able 10: Range o
f coins of the modu
le escrow
Dimensions

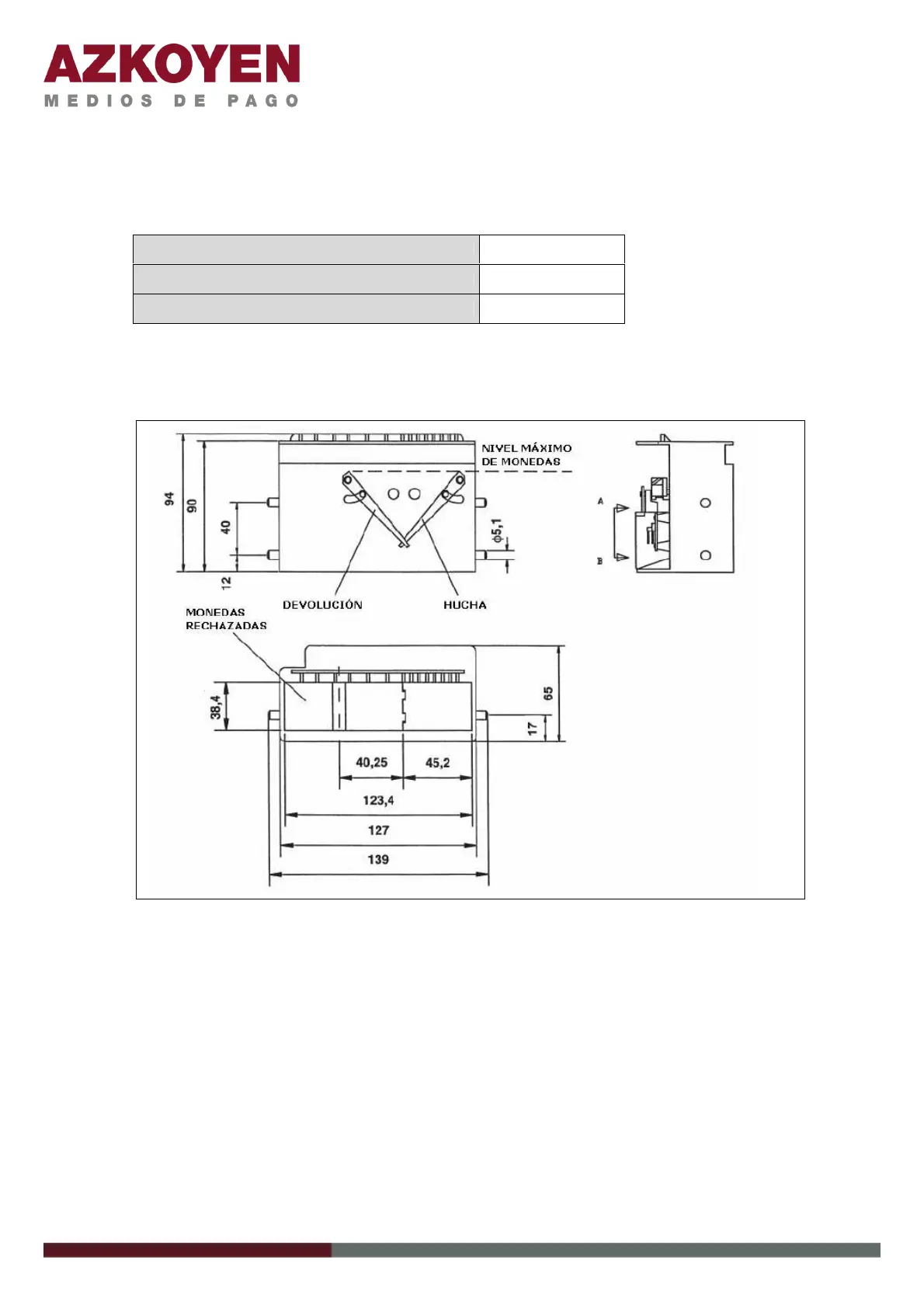

Figure 15:
Dimensions of t
he escrow mo
dule
Range diameter co
in (mm)
16.25 to 32.5
Range thickness
coins (mm)
1.2 to 3.3
Capacity
(24mm dia. 2,8mm thickness)
35
29
31
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
6
2 Components in the Combo - T
8
Figure 1: Principle Components of the Combo - T
8
3 Installation and Start up
9
Dimensions and Layout
9
Figure 2: Dimensions
9
Connection to the Master and Power Supply
10
Figure 3: Connection of the Interface Board
10
Configuration of the Cctalk Addresses of the Devices
11
Configuration of Coin Acceptance
11
Configuration of the Coins in the Discriminator
11
Test
11
4 Datasheet of Components
12
Coin Validator X6-D2S Cctalk
12
Refund Module
13
Sorter Module
14
Escrow
15
Hoppers
16
Discriminators
17
5 Description of Components
19
Coin Validator X6-D2S Cctalk
19
Technical Characteristics
19
Figure 4: Description of Components of the Validator
19
How the Validator Works
20
Connections
21
Table 1: Connections on the Validator
21
Figure 5: Connections of the Validator
21
Refund Module
22
Figure 6: Refund Module
22
Figure 7: Sorter Without Validator
22
Figure 8: Diagram Refund Module Non-Autonomous
23
Figure 9: Diagram Refund Module Autonomous
23
Refund Module. Autonomous
23
Refund Module. Non-Autonomous
23
Electrical Characteristics and Connections
24
Table 2: V of Power Supply of the Refund Module
24
Table 3: Current Draw of the Refund Module
24
Table 4: Types of Connectors
24
Sorter Module
25
How the Sorter Works
25
Figure 10: Components of the Sorter Module
25
Layout of the Classification Paths
26
Table 5: Range of Coins and Exit Paths
26
Figure 11: Paths of Classification
26
Figure 12: Diagram of Classification
26
Physical Characteristics
27
Electrical Characteristics
27
Electronic Circuit Board and Connections
27
Table 6: Physical Characteristics of the Paths
27
Table 7: Physical Characteristics of the Paths
27
Table 8: V of Power Supply of Sorter
27
Table 13: Current Draw
27
Table 9: Connections of the Sorter
28
Figure 13: Electronic Circuit Board
28
Escrow
29
Figure 14: Description of the Escrow Module
29
Figure 15: Dimensions of the Escrow Module
30
Physical Characteristics
30
Table 10: Range of Coins of the Escrow Module
30
Electrical Characteristics
31
Table 11: V of Power Supply of Sorter
31
Table 12: Current Draw
31
Table 14: Connections
31
Hoppers
32
Figure 16: Description of the Hopper U-II
32
Physical Characteristics
33
Table 15: Range of Coins of the Escrow Module
33
Table 16: Capacity of Coins in the Hopper
33
Technical Characteristics
33
Figure 17: Extraction Disks
34
Figure 18: Blades
34
Table 17: Range of Coins for Type of Disk
34
Table 18: Range of Coins for Type of Blade
34
Figure 19: View Interior of the Extraction Device
35
Figure 20: Dimensions
35
Electrical Characteristics
36
Electronic Characteristics
36
Figure 21: Electronic Circuit Board Hopper U-II Cctalk
36
Table 19: V of Power Supply of the Hopper
36
Table 20: Current Draw
36
Figure 22: Interface Cctalk Hopper U-II
37
Table 21: Connections Hopper U-II Cctalk
37
Figure 23: Location of Dipswitches for Configuration
38
Table 22: Dip-Switch Settings
39
Table 23: Selection of Cctalk Address Using Switches
39
Table 24: Working Modes in Cctalk
39
Discriminators
40
Figure 24: Description of the Discriminator
40
How the Discriminator Works
41
Technical Characteristics
42
Figure 25: Extraction Disks
43
Physical Characteristics
43
Table 25: Range of Coins of the Module Escrow
43
Table 26: Capacity of Coins in the Hopper
43
Table 27: Range of Coins for Type of Disk
43
Figure 26: Blade
44
Figure 27: Dimensions
44
Table 28: Range of Coins for Type of Blade
44
Electrical Characteristics
45
Table 29: V of Power Supply of the Discriminator
45
Table 30: Current Draw
45
Electronic Characteristics
46
Figure 28: Electronic Circuit Board
46
Table 31: Connections Hopper U-II Cctalk
46
Configurations
47
Figure 29: Location of Dipswitches for Configuration
47
Table 32: Selection of Cctalk Addresses
47
Calibration of the Discriminator
49
Table 33: Commands of Payment
49
Electronic Interface: I/O Interface Board
51
Functions
51
Electrical Characteristics
51
Table 34: V of Power Supply of the I/O Board
51
Table 35: Current Draw
51
Connections
52
Table 36: Description of Connections
52
Figure 30: Description of Connections
52
Description of the Cctalk Commands
53
Table 37: List of Cctalk Commands
53
6 User Tools
56
Programming Tools
56
User Application HEUS
56
Figure 31: Screenshot off the Application Heus
56
Portable Tool TL20
57
Simulation Tool
57
Cctalk Manager
57
Figure 32: Tool TL20
57
Figure 33: Screenshot of the Application Cctalk Manager
57
Cctalk Interfaces
58
Interface USB - Cctalk
58
Interface RS232 - Cctalk
58
Figure 34: Interface USB - Cctalk
58
Figure 35: Interface RS232 - Cctalk
59
7 Norms
60
Ce Certification
60
Rohs CERTIFICATE
61
Reach Directive Certificate
62
