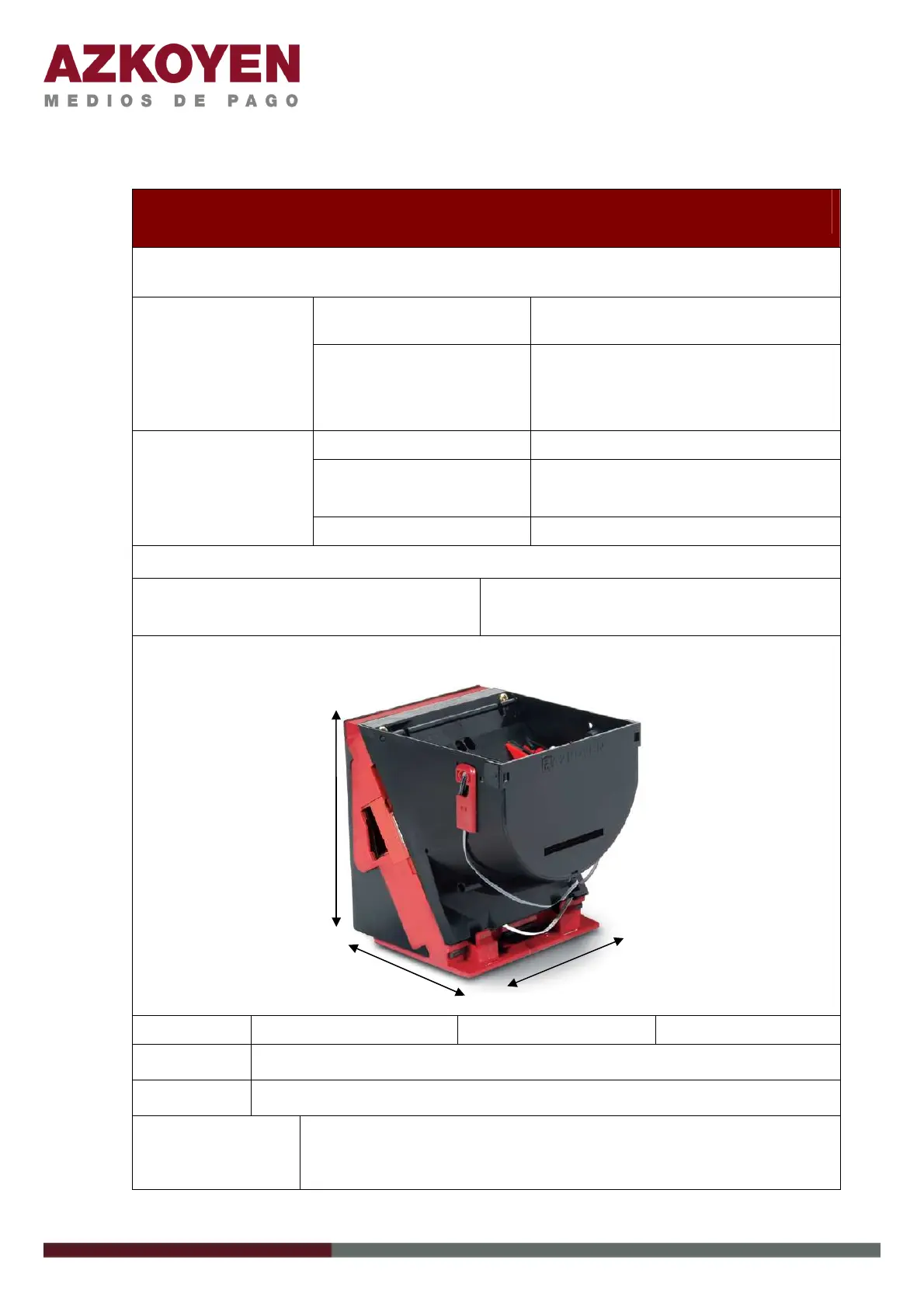

U-II PLUS CCTALK HOPPER
Name: Hopper U-II / PLUS / ccTalk / Full sensor / Empty sensor
Voltage:
12VDC – 24VDC (±10%)
Technical
Characteristics
Current draw: Start up = 3A (± 20%)
Standby = 50mA (± 5%)
Operation = 450 mA (±20%)
Temperature Range: +5 ºC a +55 ºC (41 ºF a 131 ºF)
Temperature Range
storage:
-25ºC a +70ºC (-13 ºF a 158 ºF)
Environment
Specifications:
Relative humidity: 95 % RH (without condensation)
Electronic Interface: Serial ccTalk® Generic Specification, Issue 4.3
Diameter of coins:
12 – 32 mm (0.47 – 1.25 in.)
Thickness of coins:
1.2 – 3.5mm (0.04 – 0.13 in.)
Dimensions:
Medium: X = 131 mm (5.15 in.)
Y = 154 mm (6.06 in.)
Z =155 mm (4.01 in.)
Capacity:
(with 24mm Φ and 2,8 mm thickness)
Speed:
Up to 5.6 coins/s
Pinout
connector:
PIN 1 = DATA in ccTalk®
PIN 7 = PIN 10 = VDC
PIN 4 = PIN 8 = GND
