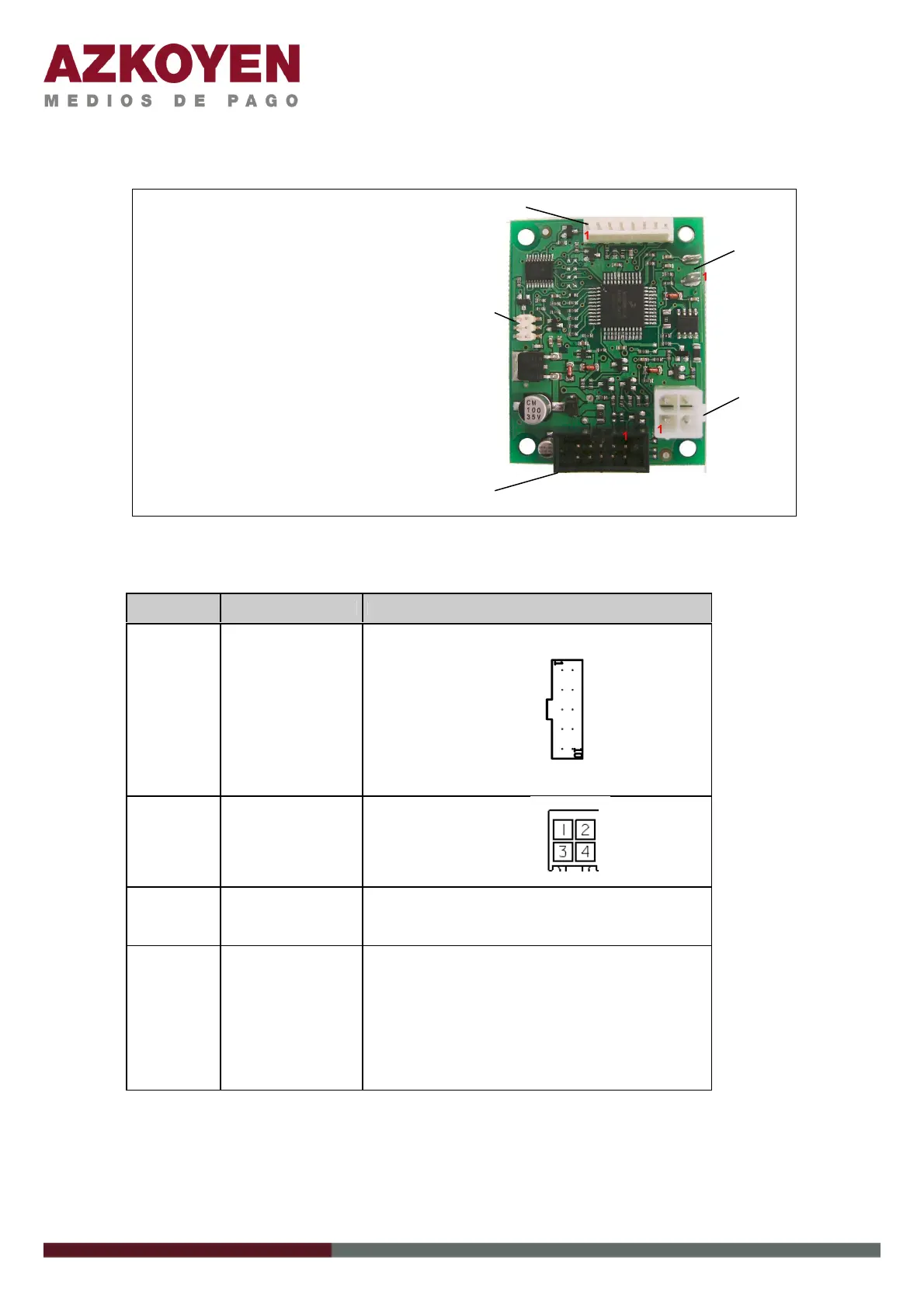

5.7.3 Connections
1. JP1 principle connection - ccTalk
2. JP5 Azkoyen tools
3. JP4 escrow and inputs a / d
4. JP3 refund button
5. JP2 refund motor
Figure 30: Description of connections
Connections
Table 36: Description of connections
CONNECTOR FUNCTION PINOUT
JP1 BUS CCTALK
1 – / DATA
2 –
3 –
4 – 0V DC
5 –
6 –
7 – VDC
8 – 0V DC
9 –
10 – VDC
JP2 REFUND MODULE
1 – [+V MOT]
2 – [- V MOT]
3 – SW1.1 MOTOR STOP
4 – SW1.2 GND
JP3 REFUND BUTTON
1 – REC. BUTTON
2 – GND
JP4
ACTIVATION
ESCROW AND
INPUTS A/D
1 – ACTIVATION PATH CASHBOX
2 – NO USED
3 – VDC
4 – NO USED
5 – ACTIVATION PATH REFUND
6 – INPUT SWITCH PATH CASHBOX
7 – GND
8 – INPUT SWITCH PATH REFUND
1
2
3
4
5
