10 - 2011
4.3 SORTER MODULE
SORTER MODULE
Name: Sorter Module U / 5-way / ccTalk / Refund Motor / Coin entry
Options: Refund motors, autonomous and non-autonomous
Voltage: 24VDC (±10%)
Technical
Characteristics
Current draw: Operation = 500 mA (±10%)
Temperature Range: +5 ºC a +55 ºC (41 ºF to 131
ºF)
Temperature Range storage: -25ºC a +70ºC (-13 ºF to 158
ºF)
Environment
Specifications:
Relative humidity: 95 % RH (without condensation)
Electronic Interface: Serial ccTalk® Generic Specification, Issue 4.3
Diameters of coins:
16.25 – 32.5 mm (0.63 – 1.27 in.)
Thickness of coins:
1.2 – 3.2mm (0.04 – 0.12 in.)

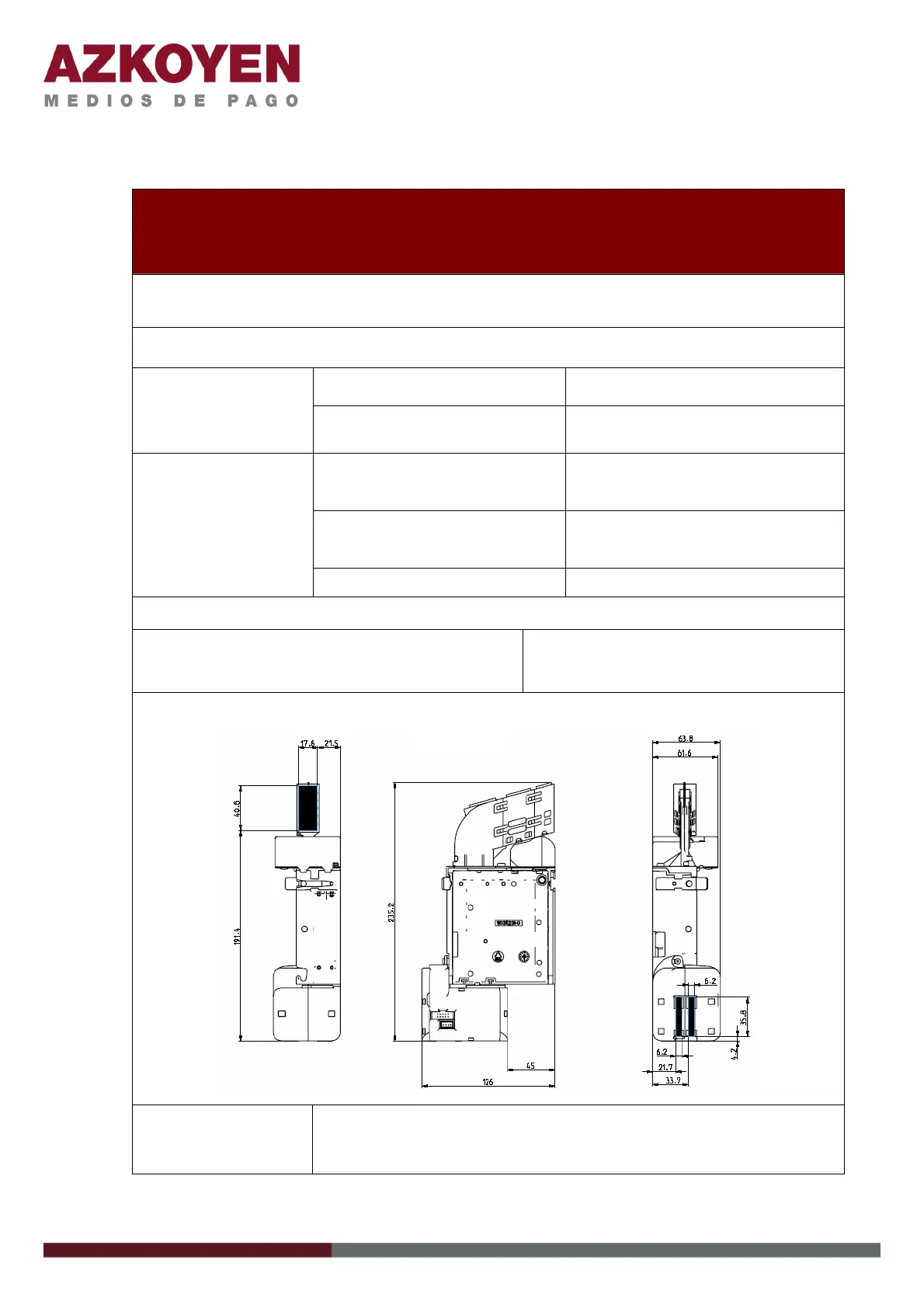

Dimensions:
Pinout ccTalk
Connector:
PIN 1 = DATA in ccTalk®
PIN 7 = VDC
PIN 8 = GND
