37
10 - 2010
Connections
Table 21: Conn
ections H
opper U-II ccT
alk

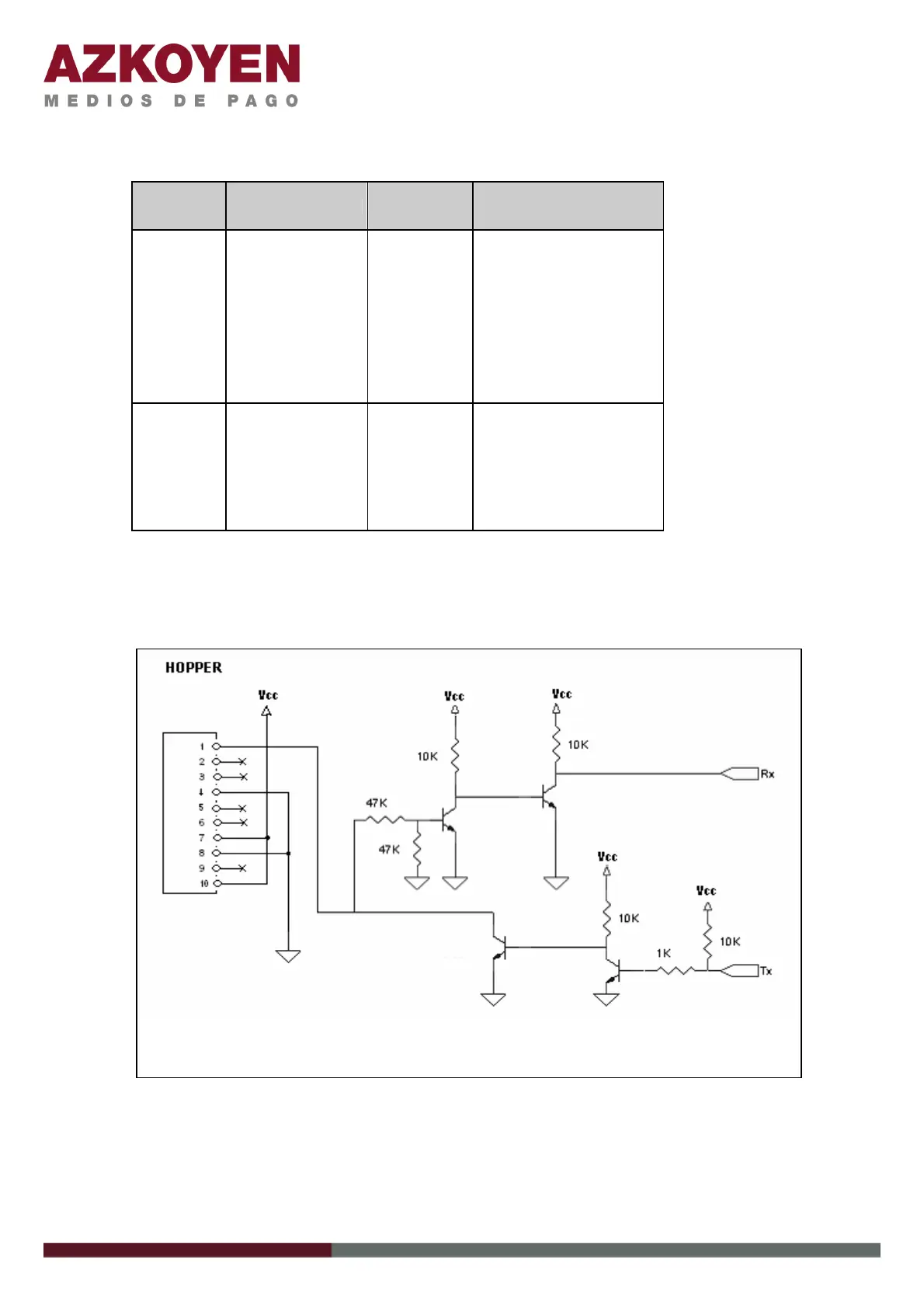

Circuit diagram o
f the driver - ccTalk
Figure 22: Int
erface ccTalk Hop
per U-II
CONNECTO
R
FUNCTION
CONNECTION
PINOUT
Q1
CONNECTION
CCTALK 10 -
WAY
EXTERNAL
1 – / DATA
2 –
3 –
4 – 0V DC
5 –
6 –
7 – VDC
8 – 0V DC
9 –
10 – VDC
Q3
CONNECTION
AZKOYEN USER
TOOLS
EXTERNAL
1 –
2 – 0V DC (GND)
3 – RX
4 –
5 – TX
6 – VDC (+5V)
36
38
