5.5 HOPPERS
The Combo-T device can be equipped, as devices of payment, with both Hoppers and Discriminators. Their
function is the storage of coins for the payment of refund or a credit. The main difference between a hopper
and a discriminator is that the first is a single coin payout and the second has capacity to use two values of
coins, simultaneously. Here are the main characteristics of the Hoppers:
.
1. Sensors - empty
2. Coin exit
3. Optic sensor - exit
4. Sensors - full
5. Hopper

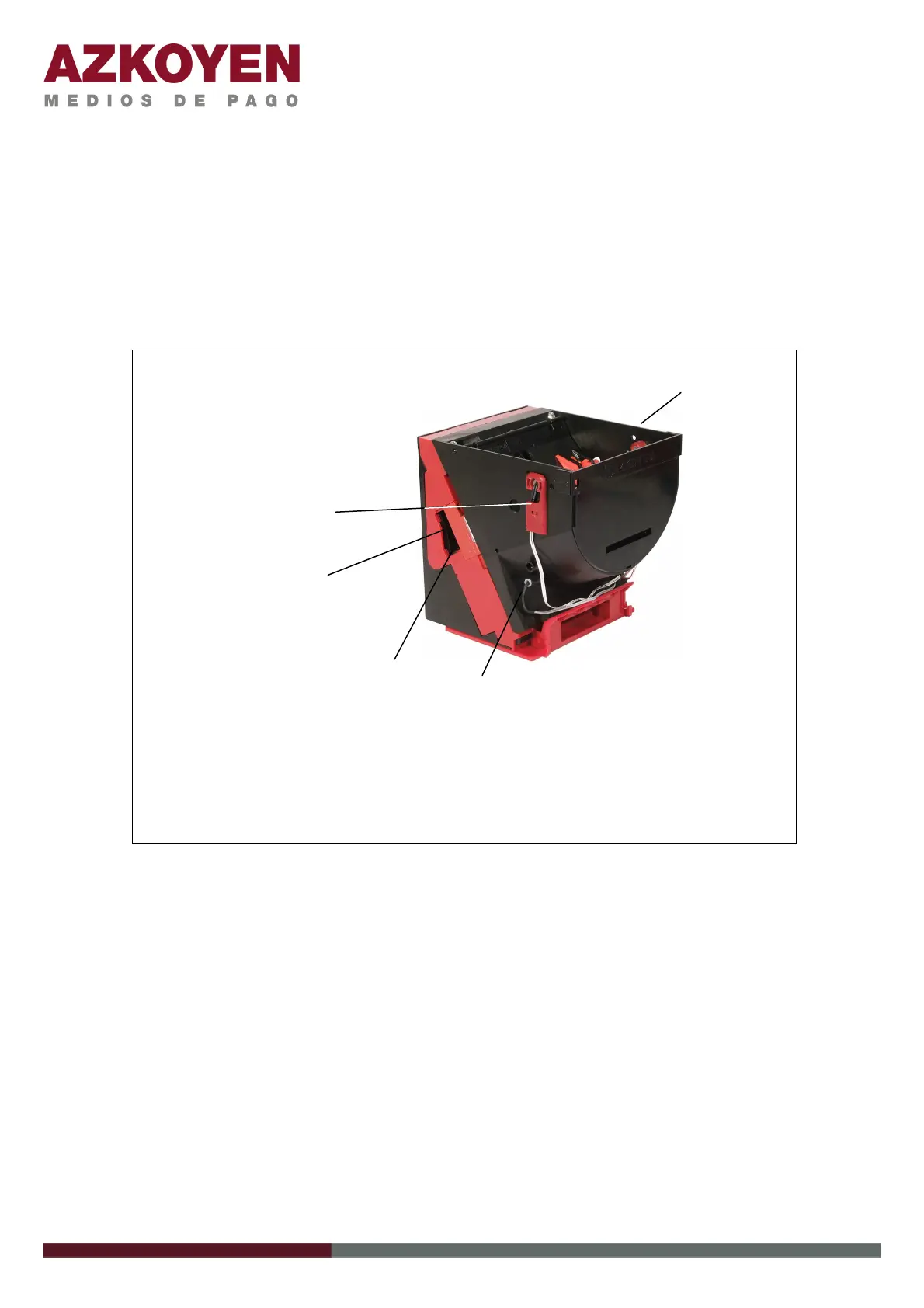

Figure 16: Description of the Hopper U-II
The hopper consists of a storage bay with a system of rotary extraction, powered by a motor and controlled
by ccTalk instructions. You have optic detection sensors of the coins paid out, as well as sensors for the
detection of full and empty levels in the hopper.
