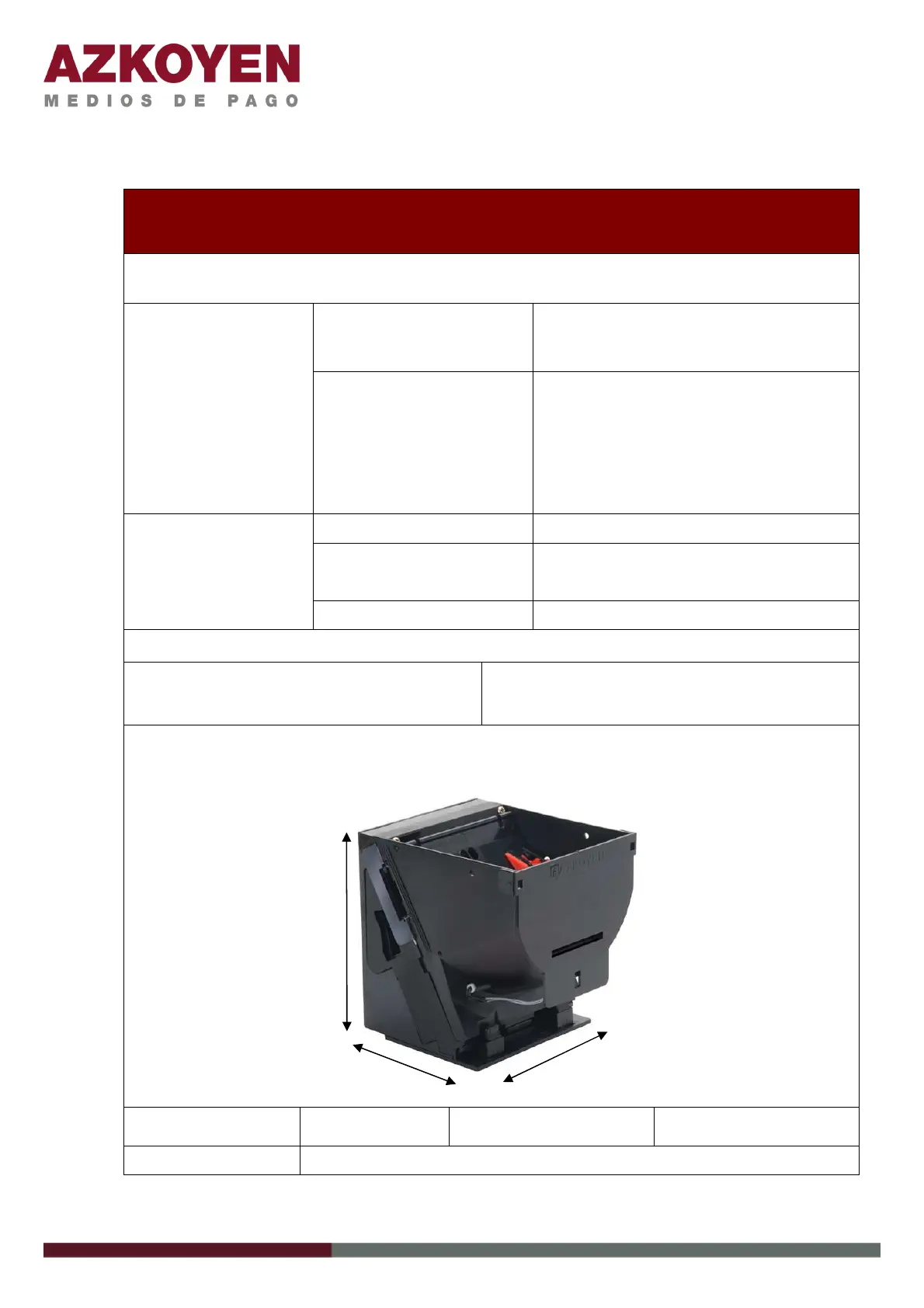

4.6 DISCRIMINATORS
DISCRIMINATOR
Name: Discriminator 8 cavities / 2 coins / 24V or 24 DC / ccTalk / Full sensor / Empty
sensor
Voltage:
24VDC (±10%) or
12VDC (±10%)
Technical
Characteristics
Current draw: Start up = 2.5A (± 20%) a 24VDC
= 3A (± 20%) a 12VDC
Standby = 75mA (±20%)
Operation = 310mA (±20%) a 24VDC
= 450mA (±20%) a 12VDC
Temperature Range: +5 ºC a +55 ºC (41 ºF a 131 ºF)
Temperature Range
storage:
-25ºC a +70ºC (-13 ºF a 158 ºF)
Environment
Specifications:
Relative humidity: 95 % RH (without condensation)
Electronic Interface: Serial ccTalk® Generic Specification, Issue 4.3
Diameter of coins:
18 – 30 mm (0.70 – 1.18 in.)
Thickness of coins:
1.5 – 3.2mm (0.05 – 0.12 in.)
Dimensions:
Medium:
X = 131 mm
(5.15 in.)
Y = 154 mm (6.06 in.)
Z =155 mm (4.01 in.)
Capacity:
400 (with 24mm Φ and 2,8 mm thickness)
