Extraction assembly
1.
Disk
2.
Motor
3.
Blade
4.
Exit sensor
5.
Propulsion tri
gger

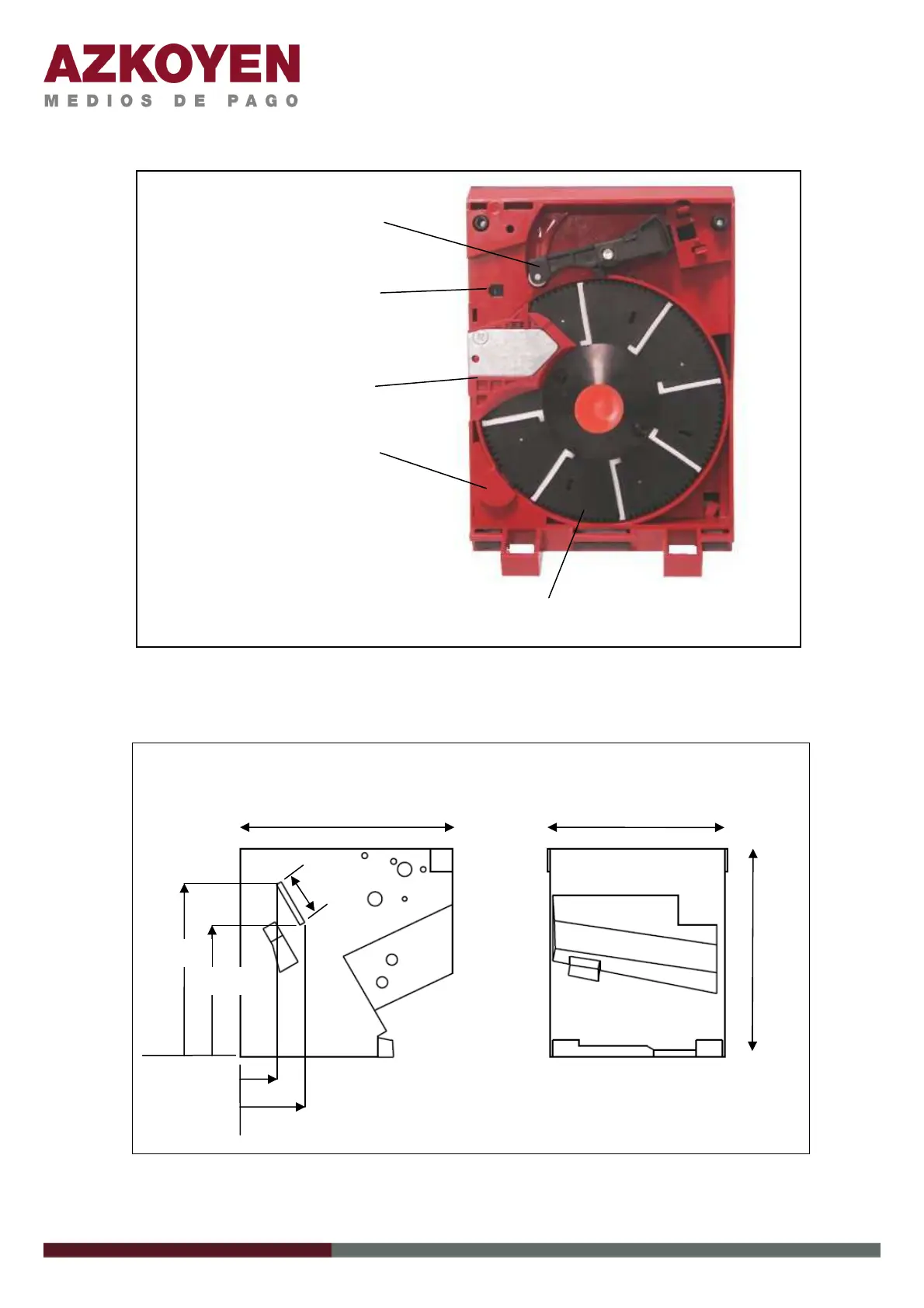

Figure 19: View
interior o
f the extraction as
sembly
Dimensions
Figure 20: Dimen
sions
154
131
155
43,3
26,3
99,2
128,7
34
* (mm)
1
2
3
3
4
5
34
36
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
6
2 Components in the Combo - T
8
Figure 1: Principle Components of the Combo - T
8
3 Installation and Start up
9
Dimensions and Layout
9
Figure 2: Dimensions
9
Connection to the Master and Power Supply
10
Figure 3: Connection of the Interface Board
10
Configuration of the Cctalk Addresses of the Devices
11
Configuration of Coin Acceptance
11
Configuration of the Coins in the Discriminator
11
Test
11
4 Datasheet of Components
12
Coin Validator X6-D2S Cctalk
12
Refund Module
13
Sorter Module
14
Escrow
15
Hoppers
16
Discriminators
17
5 Description of Components
19
Coin Validator X6-D2S Cctalk
19
Technical Characteristics
19
Figure 4: Description of Components of the Validator
19
How the Validator Works
20
Connections
21
Table 1: Connections on the Validator
21
Figure 5: Connections of the Validator
21
Refund Module
22
Figure 6: Refund Module
22
Figure 7: Sorter Without Validator
22
Figure 8: Diagram Refund Module Non-Autonomous
23
Figure 9: Diagram Refund Module Autonomous
23
Refund Module. Autonomous
23
Refund Module. Non-Autonomous
23
Electrical Characteristics and Connections
24
Table 2: V of Power Supply of the Refund Module
24
Table 3: Current Draw of the Refund Module
24
Table 4: Types of Connectors
24
Sorter Module
25
How the Sorter Works
25
Figure 10: Components of the Sorter Module
25
Layout of the Classification Paths
26
Table 5: Range of Coins and Exit Paths
26
Figure 11: Paths of Classification
26
Figure 12: Diagram of Classification
26
Physical Characteristics
27
Electrical Characteristics
27
Electronic Circuit Board and Connections
27
Table 6: Physical Characteristics of the Paths
27
Table 7: Physical Characteristics of the Paths
27
Table 8: V of Power Supply of Sorter
27
Table 13: Current Draw
27
Table 9: Connections of the Sorter
28
Figure 13: Electronic Circuit Board
28
Escrow
29
Figure 14: Description of the Escrow Module
29
Figure 15: Dimensions of the Escrow Module
30
Physical Characteristics
30
Table 10: Range of Coins of the Escrow Module
30
Electrical Characteristics
31
Table 11: V of Power Supply of Sorter
31
Table 12: Current Draw
31
Table 14: Connections
31
Hoppers
32
Figure 16: Description of the Hopper U-II
32
Physical Characteristics
33
Table 15: Range of Coins of the Escrow Module
33
Table 16: Capacity of Coins in the Hopper
33
Technical Characteristics
33
Figure 17: Extraction Disks
34
Figure 18: Blades
34
Table 17: Range of Coins for Type of Disk
34
Table 18: Range of Coins for Type of Blade
34
Figure 19: View Interior of the Extraction Device
35
Figure 20: Dimensions
35
Electrical Characteristics
36
Electronic Characteristics
36
Figure 21: Electronic Circuit Board Hopper U-II Cctalk
36
Table 19: V of Power Supply of the Hopper
36
Table 20: Current Draw
36
Figure 22: Interface Cctalk Hopper U-II
37
Table 21: Connections Hopper U-II Cctalk
37
Figure 23: Location of Dipswitches for Configuration
38
Table 22: Dip-Switch Settings
39
Table 23: Selection of Cctalk Address Using Switches
39
Table 24: Working Modes in Cctalk
39
Discriminators
40
Figure 24: Description of the Discriminator
40
How the Discriminator Works
41
Technical Characteristics
42
Figure 25: Extraction Disks
43
Physical Characteristics
43
Table 25: Range of Coins of the Module Escrow
43
Table 26: Capacity of Coins in the Hopper
43
Table 27: Range of Coins for Type of Disk
43
Figure 26: Blade
44
Figure 27: Dimensions
44
Table 28: Range of Coins for Type of Blade
44
Electrical Characteristics
45
Table 29: V of Power Supply of the Discriminator
45
Table 30: Current Draw
45
Electronic Characteristics
46
Figure 28: Electronic Circuit Board
46
Table 31: Connections Hopper U-II Cctalk
46
Configurations
47
Figure 29: Location of Dipswitches for Configuration
47
Table 32: Selection of Cctalk Addresses
47
Calibration of the Discriminator
49
Table 33: Commands of Payment
49
Electronic Interface: I/O Interface Board
51
Functions
51
Electrical Characteristics
51
Table 34: V of Power Supply of the I/O Board
51
Table 35: Current Draw
51
Connections
52
Table 36: Description of Connections
52
Figure 30: Description of Connections
52
Description of the Cctalk Commands
53
Table 37: List of Cctalk Commands
53
6 User Tools
56
Programming Tools
56
User Application HEUS
56
Figure 31: Screenshot off the Application Heus
56
Portable Tool TL20
57
Simulation Tool
57
Cctalk Manager
57
Figure 32: Tool TL20
57
Figure 33: Screenshot of the Application Cctalk Manager
57
Cctalk Interfaces
58
Interface USB - Cctalk
58
Interface RS232 - Cctalk
58
Figure 34: Interface USB - Cctalk
58
Figure 35: Interface RS232 - Cctalk
59
7 Norms
60
Ce Certification
60
Rohs CERTIFICATE
61
Reach Directive Certificate
62
