Badger Meter ModMAG M2000 User Manual

Programming Page 24/51
MID_M2000_BA_02_1807

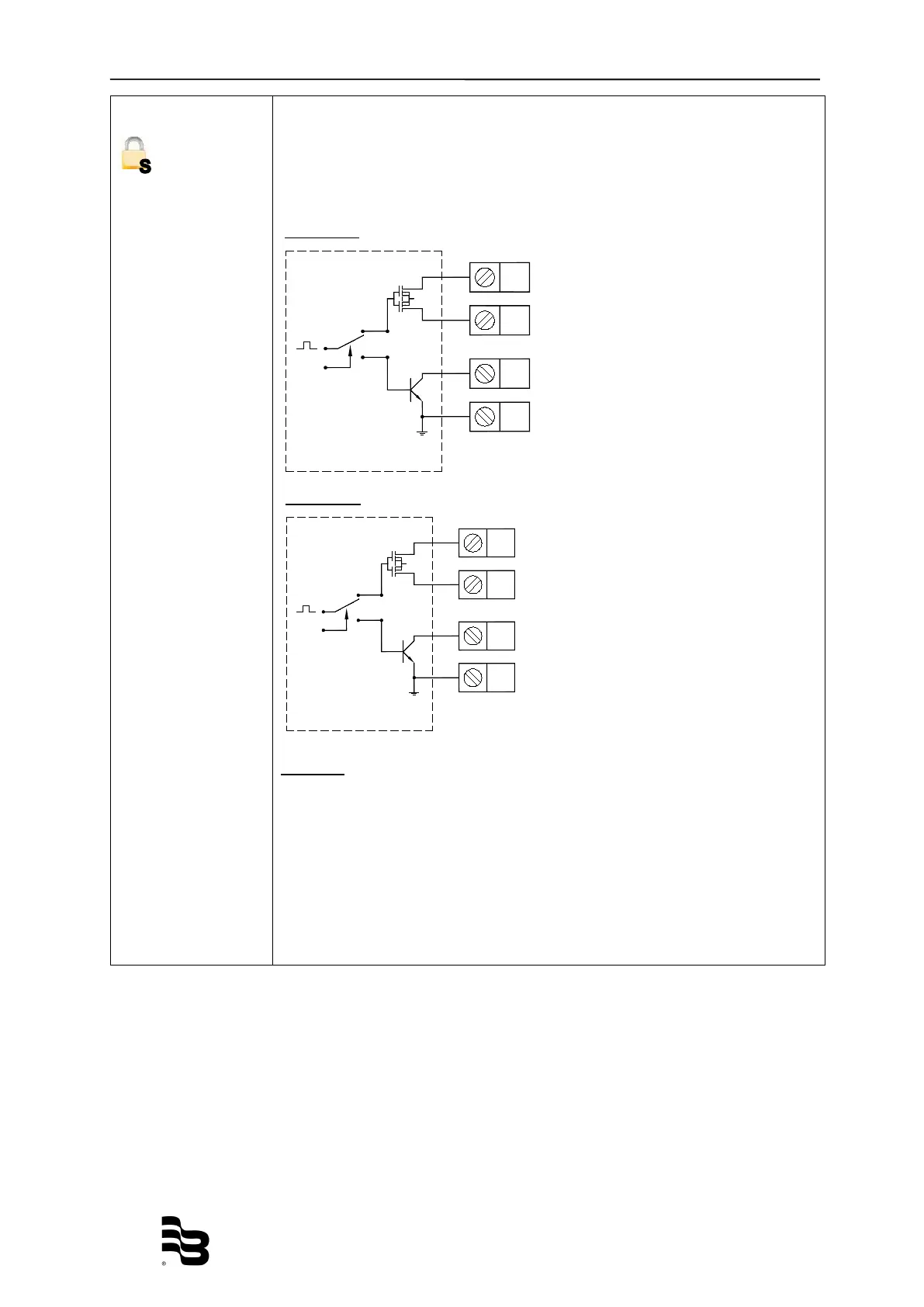

Digital Outputs Digital outputs 3 and 4
The two outputs can be operated as open collector and as relay (solid
state relais SSR). You can select operating mode by programming the
relative outputs (output hardware).
Caution:
If analog output and digital output 3 and 4 are used at the same time,
we recommend using the digital outputs only as “solid state relais” and
not as “open collector” because terminal COM (9) of digital output #3
and COM (12) of digital output #4 are electrically connected to terminal
15(-) of the analog output. There is no electrical connection when
using it as “solid state relais”.
Open collector
Passiv
e max.
30 VDC, 100 mA, 10 KHz
10
9
COM
11
10
+
-
Output #3
Solid state relais
max. 48 VAC, 500 mA, 1 KHz
Open collector
Passiv
e max. 30 VDC,
30 VDC, 100 mA, 10 KHz
13
12
COM
14
13
+
-
Output #4
Solid state relais
max. 48 VAC, 500 mA, 1 KHz

Badger Meter ModMAG M2000 Specifications

General

Flow Measurement Technology	Electromagnetic
Enclosure Rating	NEMA 4X (IP66)
Repeatability	±0.1% of rate
Output	4-20 mA, pulse, frequency
Display	LCD with backlight
Power Supply	100 to 240 VAC or 24 VDC
Communication Protocols	HART, Modbus
Process Connection	Flanged, Threaded
Electrode Material	316 Stainless Steel, Hastelloy, Tantalum
Liner Material	PTFE, PFA, Polyurethane
Accuracy	±0.2% of rate
Temperature Range	-40°...160°F (-40°...71°C)
Fluid Temperature	-4°...302°F (-20°...150°C)
Materials	Stainless Steel, Carbon Steel
