OmniCare EVC System
Installation & Commissioning Manual
2 OmniCare issue 1
C
O
M
M
U
N
I
C
A
T
I
O
N
S
1.2 TECHNICAL SPECIFICATIONS
1.2.1 Control Panels

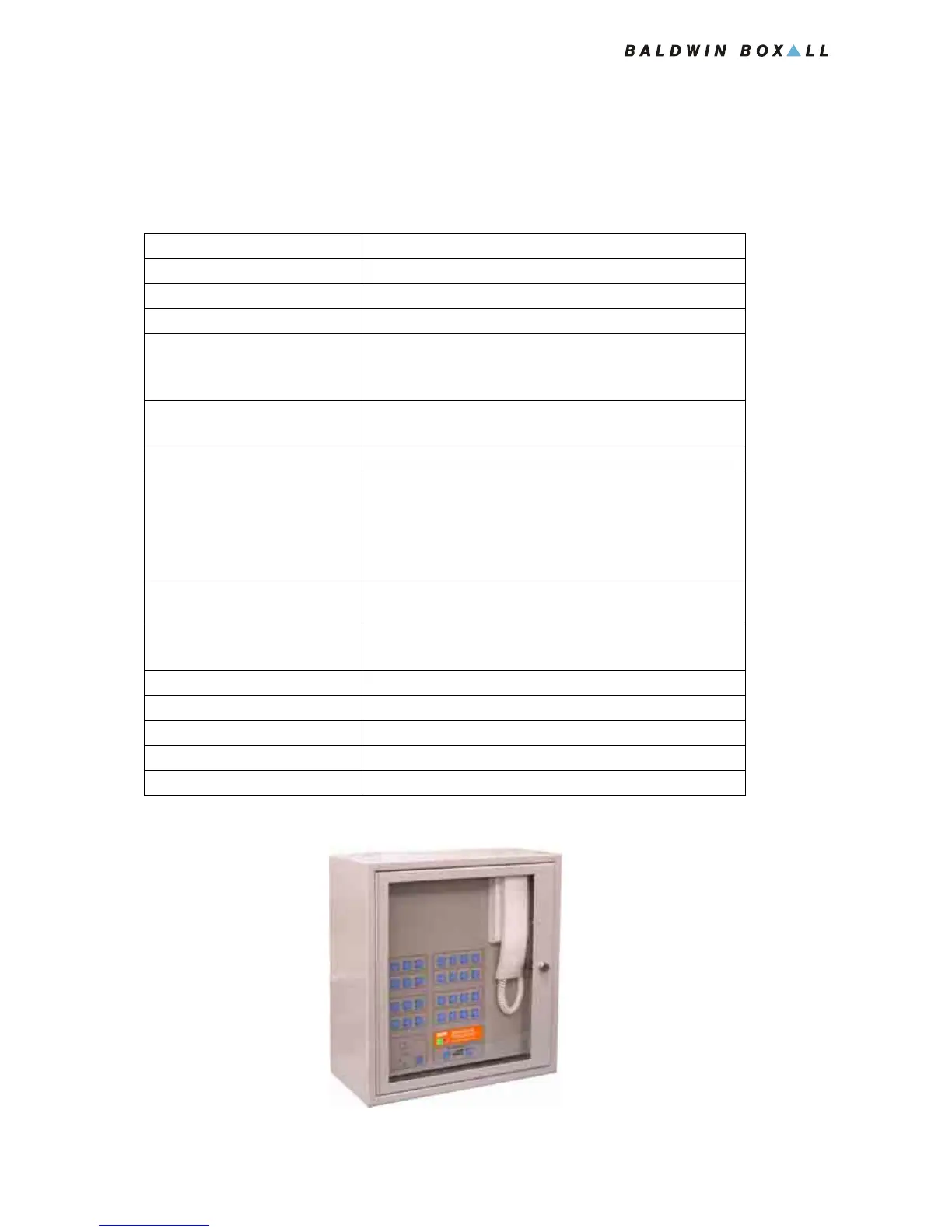

Figure 1.1 — Typical OmniCare Control Panel
Control Panels
System self-monitoring BS5588 & BS5839 compliant
Remote signalling of fault Volt-free contact, closing/opening set on installation
Indicators Occupied, call, fault, power, charger, speech level
Transmission capability Half-duplex (DRS remotes) either voice switched or by
PTT (controlled at the Control Panel).
Full Duplex (Fire Telephones)
Power supply 110V / 230V AC autoswitching, battery backed with built
in batteries & charger
Power consumption (VA) 10VA + 1VA per remote connected
Dimensions (W x H x D) 410mm x 290mm x 200mm (8-32 way)
410mm x 455mm x 200mm (16-64 way)
410mm x 777mm x 200mm (80-128 way)
Bezel dimensions: 461mm x 506mm x 25mm.
Bezel cut out dimensions: 420mm x 465mm.
Bezel dimensions (W x H x D) 461mm x 340mm x 25mm (8-32 way)
461mm x 506mm x 25mm (16-64 way)
Bezel Cutout dimensions W x H 420mm x 300mm (8-32 way)
420mm x 465mm (16-64 way)
Knockouts 20mm diameter in top and top/rear
Security Lockable glazed door
Weight, including batteries 21kg upto 32way, 26kg upto 64way, 37kg upto 128way
Temperature Range -10 to +30°C (storage and operating)
Humidity Range 95% Non Condensing
