OmniCare EVC System
Installation & Commissioning Manual
14 OmniCare issue 1
C
O
M
M
U
N
I
C
A
T
I
O
N
S
2.5 INSTALLATION EXAMPLES
2.5.1 Connection Details - up to 16 Remotes
The following illustration shows the recommended terminations
for a system with up to 16 zones using a single Zone Card.

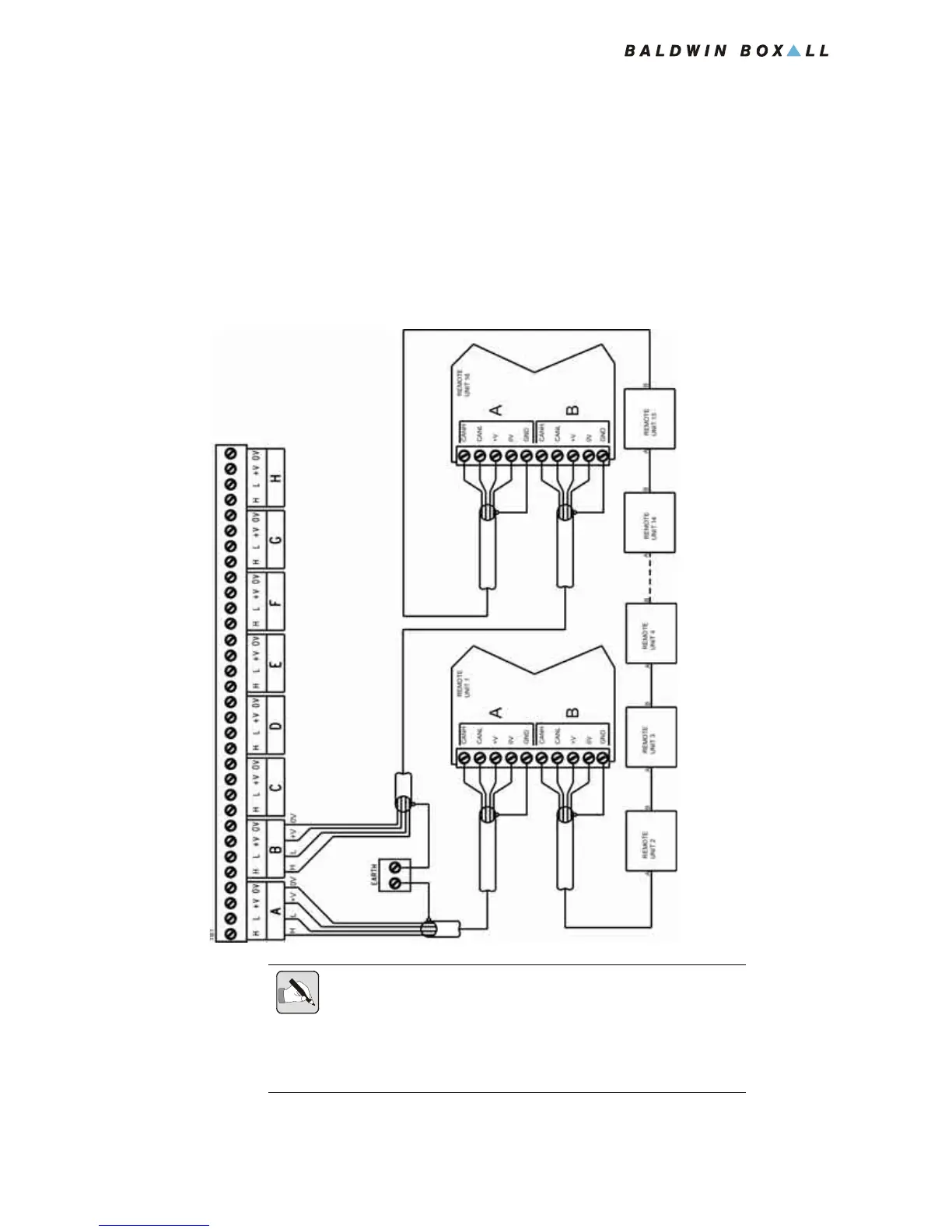

Figure 2.2 — Typical Connections - Up to 16 Remotes
NOTE: It is recommended to connect each Remote Unit "IN" from the
preceeding unit on "A", and "OUT" to the next unit on "B".
Although this is not required for the system to operate correctly, applying
this convention aids fault finding if wiring faults are encountered during
commissioning.
To Next Page
