OmniCare EVC System
Installation & Commissioning Manual
OmniCare issue 1
17
C
O
M
M
U
N
I
C
A
T
I
O
N
S
2.5.4 Connection Details - up to 64 Remotes

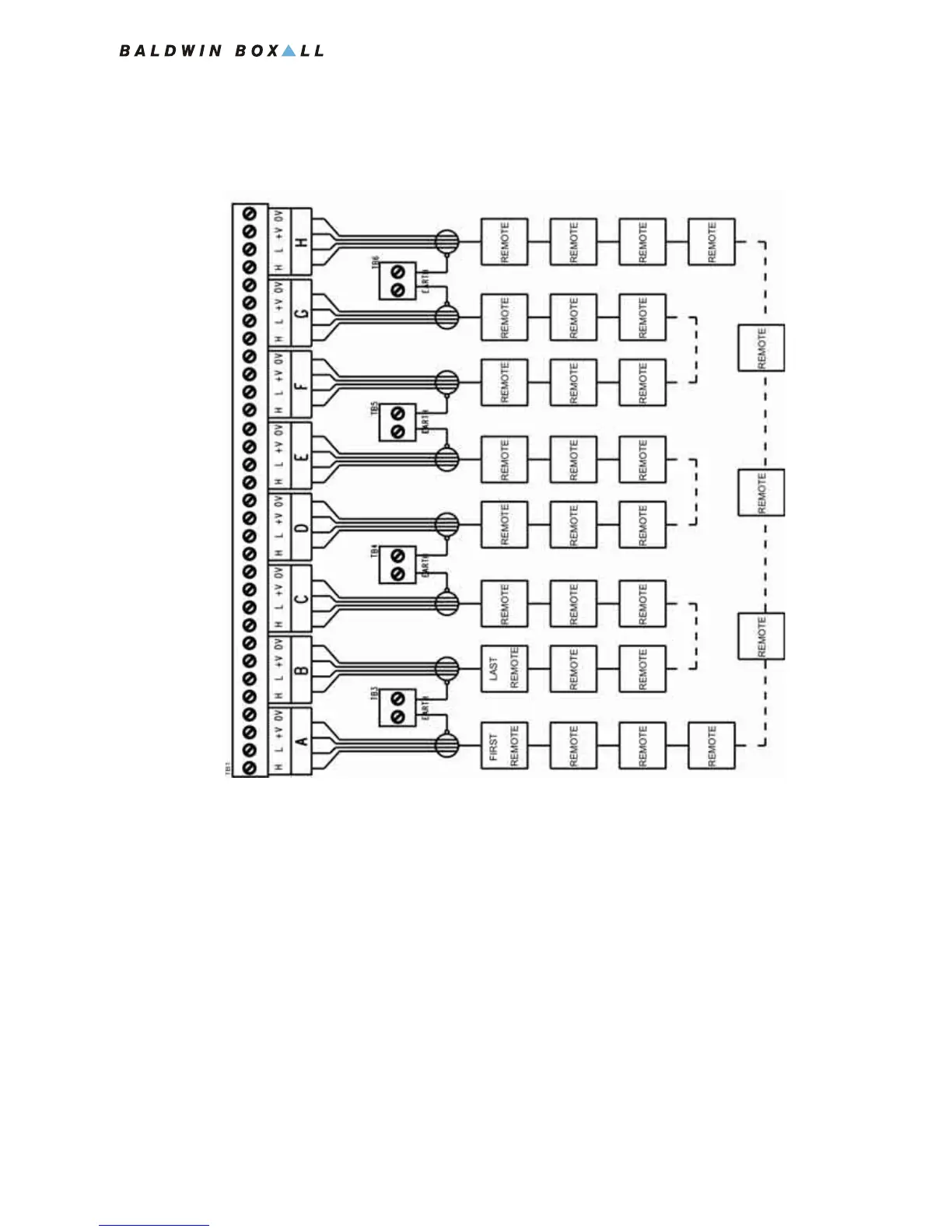

Figure 2.5 — Typical Connections - Up to 64 Remotes
For Systems utilising more than 64 Remote Units the Master
Control Panel will contain two Termination Panels.
The loop should originate from position “A” on the “Upper”
Termination Panel.
To Next Page
