1.2.3 Advance Disabled Refuge Remote (BVOCA)

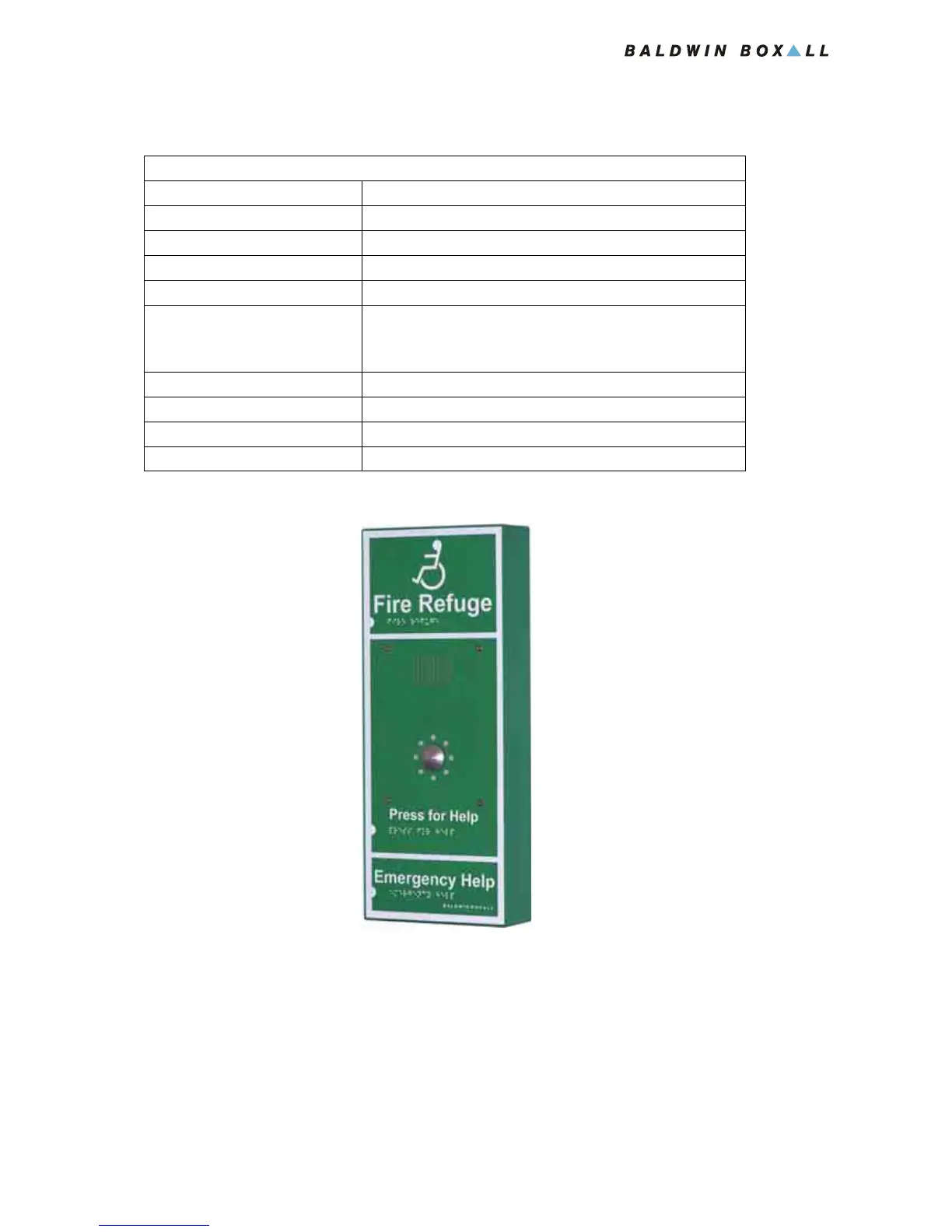

Figure 1.3 — Typical Advance Disabled Refuge Remote
Advance Disabled Refuge Remote
Indicators 8 High Intensity LEDs
Remote Signalling of Occupancy Volt free contact for Above Door lamps etc
Front Panel Controls Push Button
Power supply 12 - 40V DC
Current consumption 30mA @ 30V typical
Dimensions (W x H x D) Surface Mount: 180mm x 440mm x 64mm
Flush Mount: 178mm x 440mm x 3mm
Flush Mount cut out: 133mm x 235mm x 65mm
Knockouts 20mm and 25mm diameter in sides of back box
Weight 1 Kg
Temperature Range -10 to + 40°C (storage and operating)
Humidity Range 95% Non Condensing
